Запчасти Case IH B-SERIES (15A) - AXLE AND WHEELS, SINGLE AND DUAL WHEELS, NOT FOR B97, B109, B117 MODELS

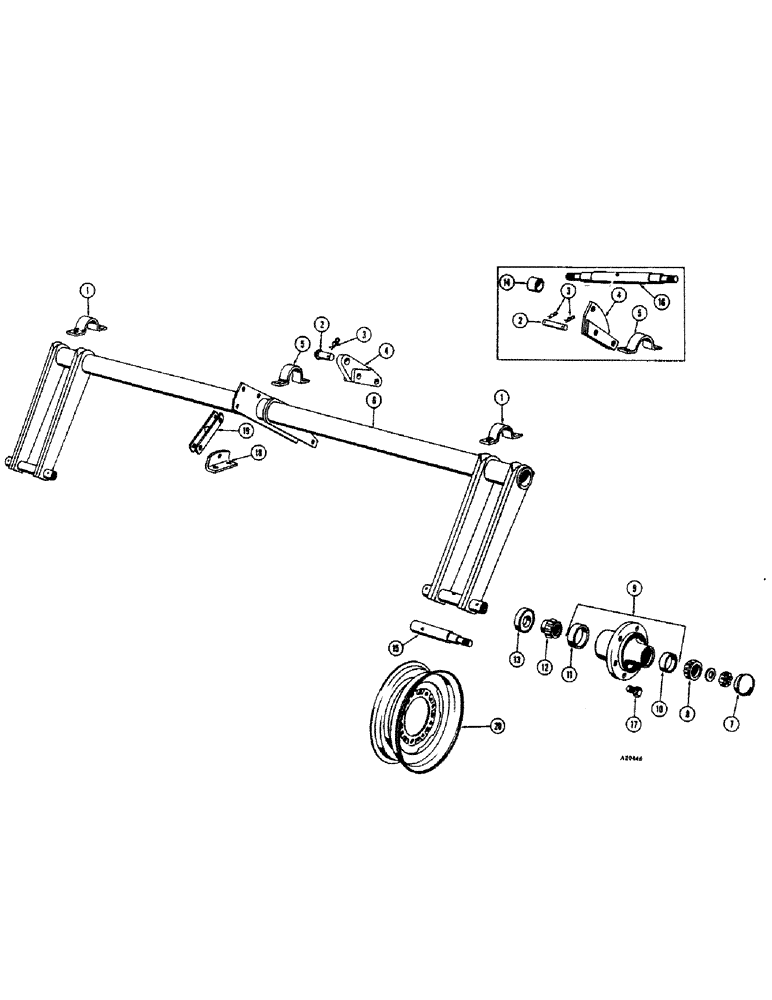

Схема запчастей Case IH B-SERIES - (15A) - AXLE AND WHEELS, SINGLE AND DUAL WHEELS, NOT FOR B97, B109, B117 MODELS

Артикул

Название

Примечание

Количество

18

T33384

ANCHOR - transport latch (YR. - 66-)

1шт.

195-2071

WASHER

- 2" x 21/32" x 1/4"

2шт.

13-1072

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 5

- 5/8" x 4-1/2" N.C. hex

2шт.

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

25-1010

NUT,5/8"-11, G5

2шт.

19

T33439

LATCH - transport (YR. - 66-)

1шт.

13-1248

BOLT,Hex, 3/4" - 10 x 3", Gr 5

1шт.

131-385

LOCK NUT,3/4"-10, GA

LOCKNUT - 3/4" Z.P.

1шт.

20

V13989

GEAR

WHEEL - 15" (YR. - 66-)

4шт.

20

T25842

RIM

WHEEL - 14" (YR. - 66-)

4шт.

Выбрано товаров: 10
