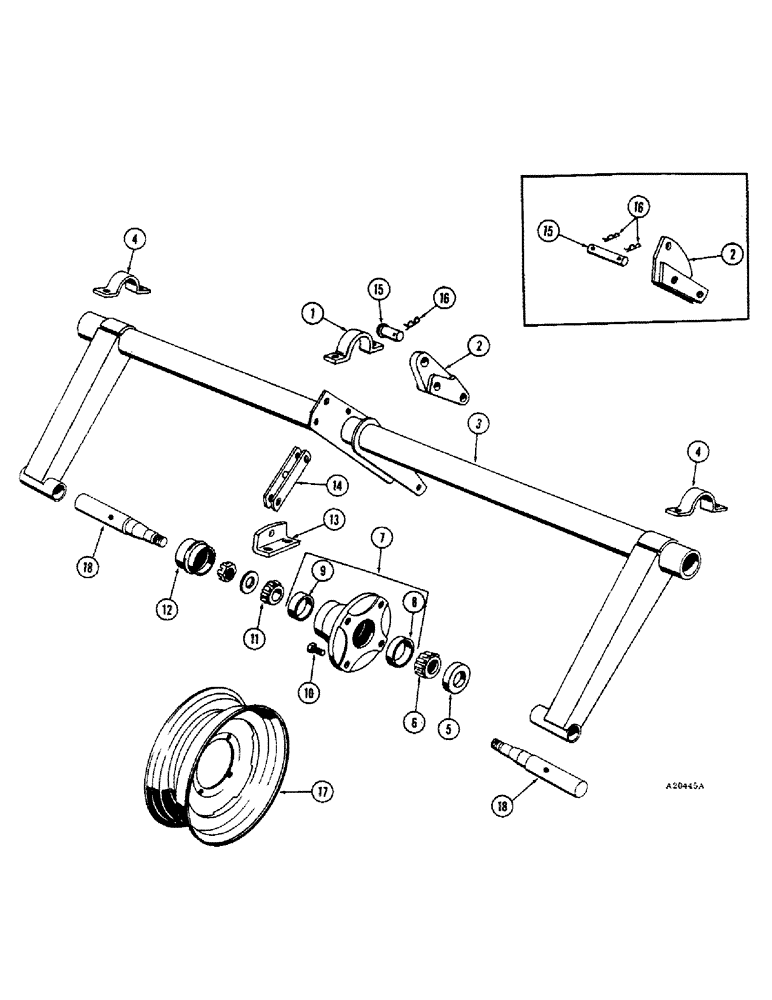

Запчасти Case IH B-SERIES (12) - AXLE AND WHEELS, SINGLE WHEEL, FOR B97, B109, B117 MODELS

1

T33381

STRAP - center, axle bearing (YR. - 66-)

1шт.

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, 1/8"

1шт.

13-1072

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 5

- 5/8" x 4-1/2" N.C. hex

2шт.

195-2071

WASHER

- 2" x 21/32" x 1/4"

2шт.

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

25-1010

NUT,5/8"-11, G5

2шт.

2

T35380

ANCHOR - cylinder pivot (YR. - 66-68)

1шт.

2

T2180

ANCHOR - pivot (YR. - 69-)

1шт.

13-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

1шт.

230-4117

LOCK NUT,7/16"-14, GA

LOCKNUT - 5/8" N.C. hex

1шт.

3

T35702

AXLE (See note) (YR. - 67-68)

1шт.

When replacing T35702 axle, order 1, T38911 axle and 2, T38909 spindle.

1шт.

3

T38911

AXLE (YR. - 68-)

1шт.

When replacing T35702 axle, order 1, T38911 axle and 2, T38909 spindle.

1шт.

195-41

WASHER,5/8"

- 5/16" x 21/32" x 13 ga.

2шт.

25-1310

SLOTTED NUT,5/8"-18, G5

NUT - 5/8" hex N.F. slotted

2шт.

132-48

COTTER PIN,1/8" x 1"

Pin, Split (Cotter), 1/8" x 1"

2шт.

4

T33286

STRAP - axle bearing (YR. - 66-)

2шт.

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, 1/8"

2шт.

195-2071

WASHER

- 2" x 21/32" x 1/4"

4шт.

13-1072

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 5

- 5/8" x 4-1/2" N.C. hex

4шт.

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

25-1010

NUT,5/8"-11, G5

4шт.

5

B13281

SEAL,38.1mm ID x 59.23mm OD x 10.31mm Thk

- grease (YR. - 66-)

2шт.

6

B12409

BEARING, ROLLER,31.763 mm ID x 16.84 mm

CONE (YR. - 66-)

2шт.

7

T34308

HUB ASSY.

HUB - w/cups (YR. - 66-)

2шт.

8

B12408

BEARING CUP,59.156 mm OD x 11.862 mm

CUP (YR. - 66-)

1шт.

9

B12410

BEARING, CUP,1.782" OD

CUP (YR. - 66-)

1шт.

10

A30064

BOLT

- hub (YR. - 66-)

8шт.

11

B12411

ROLLER BEARING,0.75" ID x 0.655"

CONE (YR. - 66-)

2шт.

12

MT2560S

CAP

- hub (YR. - 66-)

2шт.

13

T33384

ANCHOR - transport latch (YR. - 66-)

1шт.

195-2071

WASHER

- 2" x 21/32" x 1/4"

2шт.

13-1072

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 5

- 5/8" x 4-1/2" N.C. hex

2шт.

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

25-1010

NUT,5/8"-11, G5

4шт.

14

T33439

LATCH - transport (YR. - 66-)

1шт.

13-1248

BOLT,Hex, 3/4" - 10 x 3", Gr 5

1шт.

131-385

LOCK NUT,3/4"-10, GA

LOCKNUT - 3/4" N.C. Z.P.

1шт.

15

T33367

BOLT

PIN - locknut (YR. - 66-68)

1шт.

15

T38985

PIN - anchor pivot (YR. - 69-)

1шт.

16

T11538

COTTER - hairpin (YR. - 66-68)

1шт.

16

T31049

COTTER - hairpin (YR. - 69-)

1шт.

17

F60951

WHEEL

- 15" (YR. - 66-)

2шт.

17

T25852

RIM

WHEEL - 14" (YR. - 66-)

2шт.

18

T35699

SPINDLE - for T35702 (YR. - 67-68)

2шт.

18

T38909

SPINDLE - axle for T38911 (YR. - 68-)

2шт.

13-848

BOLT,Hex, 1/2" - 13 x 3", Gr 5

- 1/2" x 3" N.C. hex

2шт.

92-8

LOCK WASHER,1/2"

2шт.

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex

2шт.
