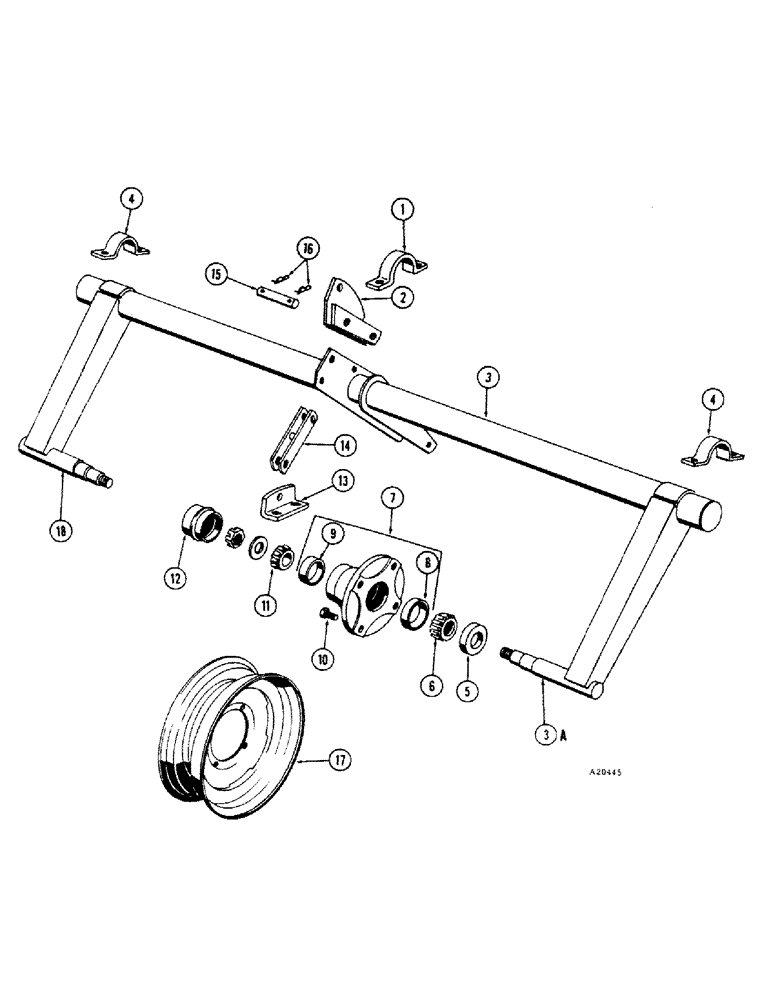

Запчасти Case IH B-SERIES (10) - AXLE AND WHEELS, SINGLE WHEEL, FOR B97, B109 AND B117 MODELS, 1966 PRODUCTION

1

T33381

STRAP - center, axle bearing (YR. - 1966)

1шт.

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, 1/8"

1шт.

13-1072

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 5

- 5/8" x 4-1/2" N.C. hex Z.P.

2шт.

195-2071

WASHER

- 2" x 21/32" x 1/4"

2шт.

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

25-1010

NUT,5/8"-11, G5

2шт.

2

T35380

ANCHOR - cylinder pivot (YR. - 1966)

1шт.

13-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

1шт.

230-4117

LOCK NUT,7/16"-14, GA

LOCKNUT - 5/8" N.C.

1шт.

3

T33361

X

AXLE - use (1) T38911, (2) T38909 & (2) B13281 (See page 12) (YR. - 1966)

1шт.

3a

T35371

SPINDLE (Weld to T33361) (YR. - 1966)

2шт.

195-41

WASHER,5/8"

- 5/16" x 21/32" x 13 ga

2шт.

25-1310

SLOTTED NUT,5/8"-18, G5

NUT - 5/8" hex N.F. slotted

2шт.

132-48

COTTER PIN,1/8" x 1"

Pin, Split (Cotter), 1/8" x 1"

2шт.

4

T33286

STRAP - axle bearing (YR. - 1966)

2шт.

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, 1/8"

2шт.

195-2071

WASHER

- 2" x 21/32" x 1/4"

4шт.

13-1072

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 5

- 5/8" x 4-1/2" N.C. hex

4шт.

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

25-1010

NUT,5/8"-11, G5

4шт.

5

FD3792

OIL SEAL

SEAL - grease (YR. - 1966)

2шт.

6

B12409

BEARING, ROLLER,31.763 mm ID x 16.84 mm

CONE (YR. - 1966)

2шт.

7

T34308

HUB ASSY.

HUB - w/cups (YR. - 1966)

2шт.

8

B12408

BEARING CUP,59.156 mm OD x 11.862 mm

CUP (YR. - 1966)

1шт.

9

B12410

BEARING, CUP,1.782" OD

CUP (YR. - 1966)

1шт.

10

A30064

BOLT

- hub (YR. - 1966)

8шт.

11

B12411

ROLLER BEARING,0.75" ID x 0.655"

CONE (YR. - 1966)

2шт.

12

MT2560S

CAP

- hub (YR. - 1966)

2шт.

13

T33384

ANCHOR - transport latch (YR. - 1966)

1шт.

195-2071

WASHER

- 2" x 21/32" x 1/4"

2шт.

13-1072

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 5

- 5/8" x 4-1/2" N.C. hex

2шт.

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

25-1010

NUT,5/8"-11, G5

2шт.

14

T33439

LATCH - transport (YR. - 1966)

1шт.

13-1248

BOLT,Hex, 3/4" - 10 x 3", Gr 5

1шт.

131-385

LOCK NUT,3/4"-10, GA

LOCKNUT - 3/4" N.C. Z.P.

1шт.

15

T33367

BOLT

PIN - lockout (YR. - 1966)

1шт.

16

T11538

COTTER - hairpin (YR. - 1966)

2шт.

17

F60951

WHEEL

- 15" (YR. - 1966)

2шт.

17

T25852

RIM

WHEEL - 14" (YR. - 1966)

2шт.
