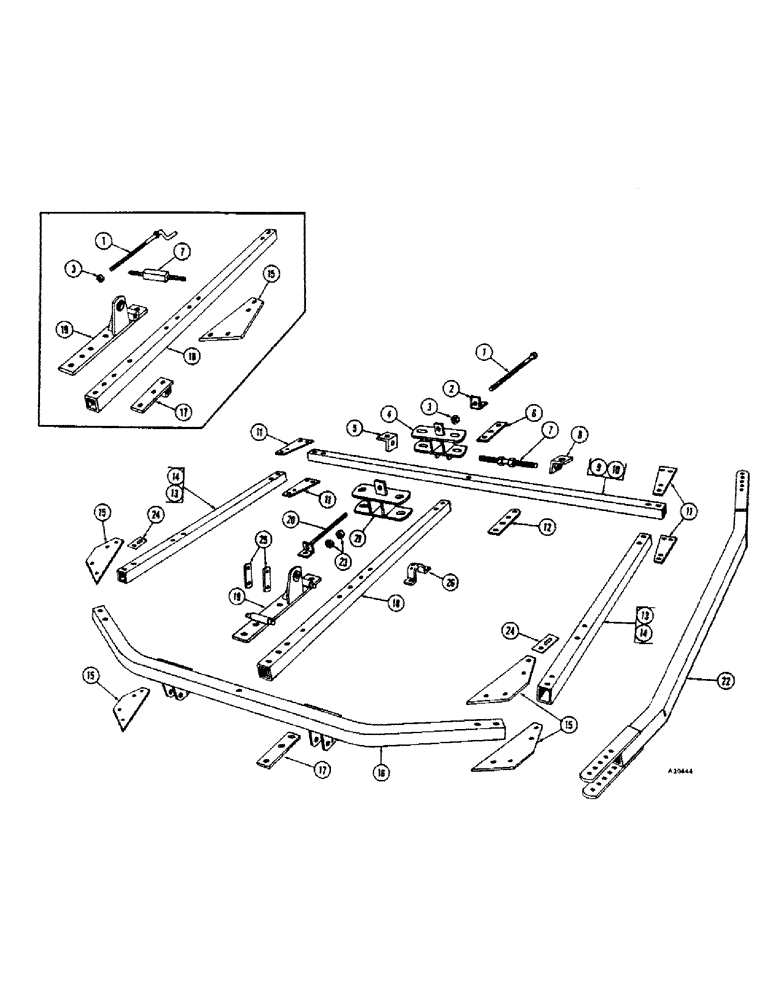

Запчасти Case IH B-SERIES (08) - MAIN FRAME

20

T33292

SCREW - front angling (Use (1) T35467 and (2) T35473) (YR. - 1966)

1шт.

20

T35467

SCREW - front angling, Acme threads (YR. - 67-)

1шт.

195-109

WASHER,3/4"

- 2" O.D. x 13/16" I.D. x 9 ga. Z.P.

2шт.

13-1280

BOLT,Hex, 3/4" - 10 x 5", Gr 5

1шт.

195-2190

WASHER - 2" x 13/16" x 1/4"

1шт.

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

1шт.

25-1012

NUT,3/4"-10, G5

1шт.

21

T33281

ANCHOR - front gang (YR. - 66-)

1шт.

13-1280

BOLT,Hex, 3/4" - 10 x 5", Gr 5

2шт.

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

25-1012

NUT,3/4"-10, G5

2шт.

22

T33398

BRACE - gang frame (Used on all wing models) (YR. - 66-)

2шт.

13-1280

BOLT,Hex, 3/4" - 10 x 5", Gr 5

8шт.

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

8шт.

25-1012

NUT,3/4"-10, G5

8шт.

23

T35473

NUT - angling, adj. (YR. - 67-)

2шт.

195-109

WASHER,3/4"

- 2" x 13/16" x 9 ga Z.P.

2шт.

24

T39276

SHIM - corner plate (YR. - 69-)

8шт.

25

T33310

LINK - frame to bar (See note B, page 8) (YR. - 69-)

2шт.

26

T39160

STRAP - center axle bearing (See note A, page 8) (YR. - 69-)

1шт.

195-2190

WASHER - 2" x 13/16" x 1/4"

1шт.

113-727

BOLT,Hex, 3/4" - 10 x 4-3/4", Gr 5

- 3/4" x 4-3/4" N.C. hex Z.P.

1шт.

192-27

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

1шт.

129-108

NUT,3/4"-10, G5

1шт.
