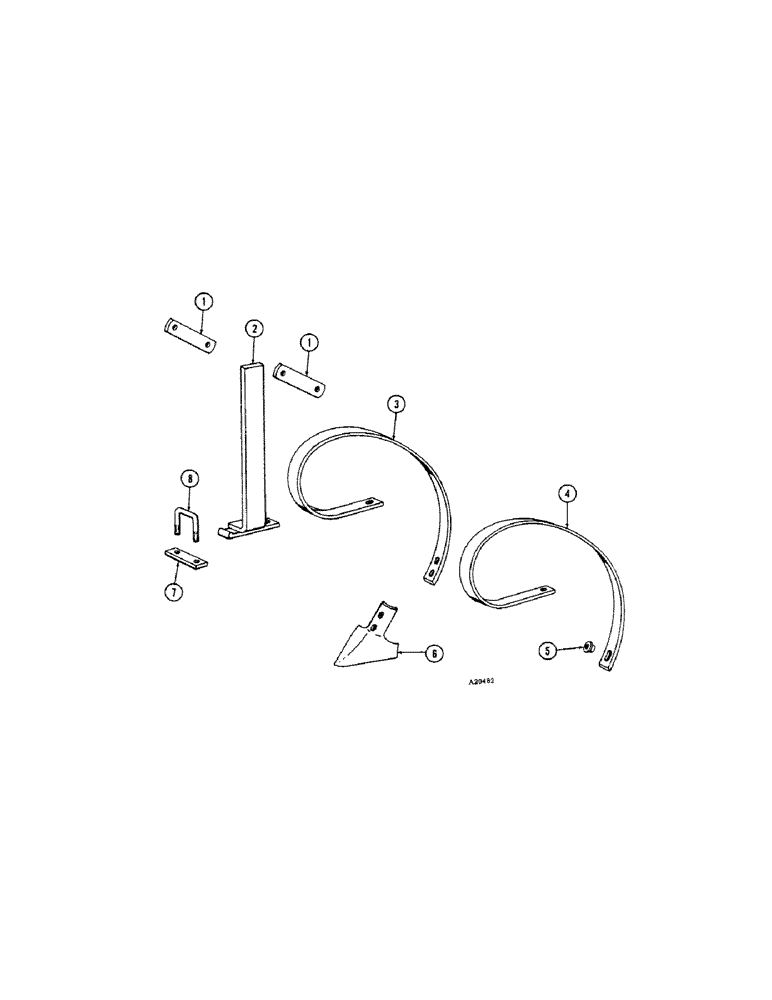

Запчасти Case IH B-SERIES (90) - CENTER TOOTH ATTACHMENT

1

T33332

BRACKET - attaching, standard (YR. - 66-)

2шт.

13-1088

BOLT,Hex, 5/8" - 11 x 5-1/2", Gr 5

- 5/8" x 5-1/2" N.C. hex

2шт.

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

25-1010

NUT,5/8"-11, G5

2шт.

2

T33330

STANDARD (YR. - 66-)

1шт.

3

T25111

TOOTH

- spring, inner (YR. - 66-)

1шт.

4

T25112

TOOTH

- spring, outer (YR. - 66-)

1шт.

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

- 1/2" x 1-3/4" N.C. hex

1шт.

92-8

LOCK WASHER,1/2"

1шт.

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex

1шт.

5

T25115

BUSHING - spring tooth (YR. - 66-)

1шт.

6

T21292

SHOVEL

SWEEP - full, 6" (YR. - 66-)

1шт.

118-204

BOLT

- 7/16" x 2" P#3 plow

1шт.

118-202

X

BOLT - 7/16" x 1-1/2" P#3 plow

1шт.

92-7

LOCK WASHER,7/16"

2шт.

25-107

NUT,7/16"-14, G5

- 7/16" N.C. hex

2шт.

7

T25114

STRAP - clamp (YR. - 66-)

1шт.

8

T25113

"U" BOLT - strap and standard (YR. - 66-)

1шт.

92-8

LOCK WASHER,1/2"

2шт.

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex

2шт.
