Запчасти Case IH B-SERIES (86) - SCRAPERS, STANDARD, FURROW FILLER, 7-1/4 INCH, 9-5/16 INCH

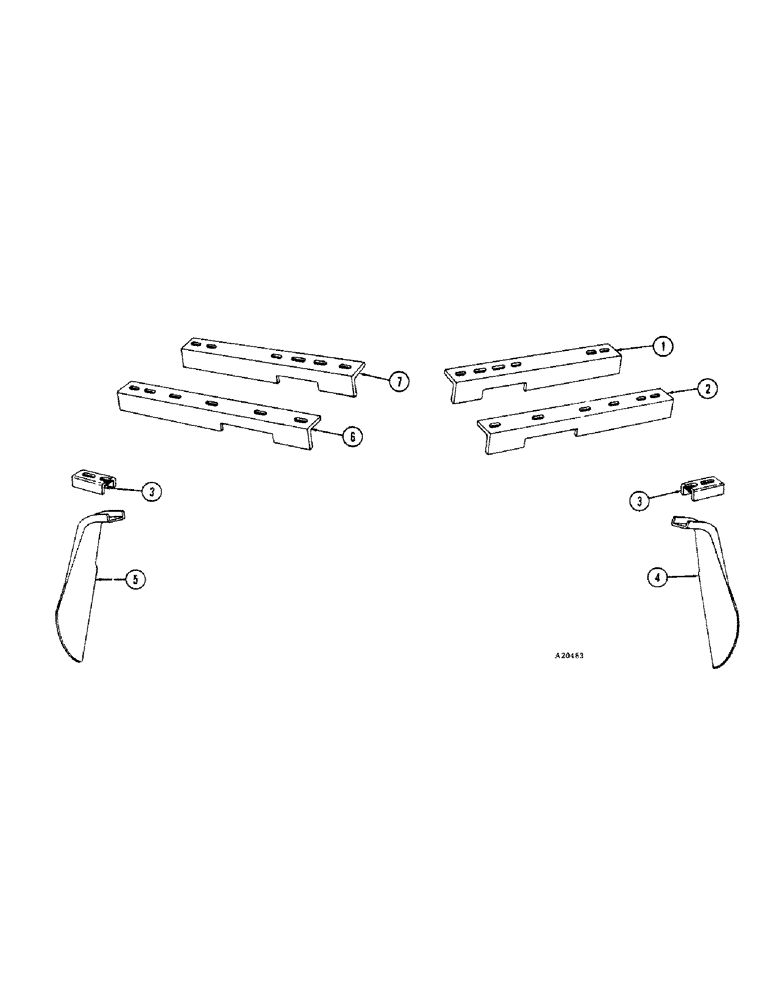

Схема запчастей Case IH B-SERIES - (86) - SCRAPERS, STANDARD, FURROW FILLER, 7-1/4 INCH, 9-5/16 INCH

Артикул

Название

Примечание

Количество

1

T25569

ANGLE - scraper, R.H. furrow filler (7-1/4") (YR. - 66-)

1шт.

11-744

BOLT - 7/16" x 2-3/4" cge (7-1/4")

3шт.

95-7

WASHER,7/16"

- 1-1/4" x 1/2" x #14 ga (7-1/4")

3шт.

92-7

LOCK WASHER,7/16"

(7-1/4") 7/16"

3шт.

25-107

NUT,7/16"-14, G5

- 7/16" N.C. hex (7-1/4")

3шт.

2

T38966

ANGLE - scraper, R.H. furrow filler (9-5/16") (YR. - 66-)

1шт.

11-744

BOLT - 7/16" x 2-3/4" cge (9-5/16")

3шт.

13-720

BOLT,Hex, 7/16" - 14 x 1-1/4", Gr 5, Full Thd

(9-5/16") Hex, 7/16"-14 x 1 1/4", G5, Full Thd

1шт.

95-7

WASHER,7/16"

- 1-1/4" x 1/2" x #14 ga (9-5/16")

4шт.

92-7

LOCK WASHER,7/16"

(9-5/16") 7/16"

4шт.

25-107

NUT,7/16"-14, G5

- 7/16" N.C. hex (9-5/16")

4шт.

3

H5864S

BAR - scraper (YR. - 66-)

2шт.

13-720

BOLT,Hex, 7/16" - 14 x 1-1/4", Gr 5, Full Thd

2шт.

95-7

WASHER,7/16"

- 1-1/4" x 1/2" x #14 ga

2шт.

92-7

LOCK WASHER,7/16"

2шт.

25-107

NUT,7/16"-14, G5

- 7/16" N.C. hex

2шт.

4

T20465

SCRAPER

R.H. (YR. - 66-)

1шт.

11-732

BOLT

- 7/16" x 2" cge

1шт.

95-7

WASHER,7/16"

- 1-1/2" x 1/2" x #14 ga

1шт.

92-7

LOCK WASHER,7/16"

1шт.

25-107

NUT,7/16"-14, G5

- 7/16" N.C. hex

1шт.

5

T20464

SCRAPER

L.H.

1шт.

11-732

BOLT

- 7/16" x 2" cge

1шт.

95-7

WASHER,7/16"

- 1-1/4" x 1/2" x #14 ga

1шт.

92-7

LOCK WASHER,7/16"

1шт.

25-107

NUT,7/16"-14, G5

- 7/16" N.C. hex

1шт.

6

T38967

ANGLE

- scraper, L.H. furrow filler (9-5/16") (YR. - 66-)

1шт.

11-744

BOLT - 7/16" x 2-3/4" cge (9-5/16")

3шт.

13-720

BOLT,Hex, 7/16" - 14 x 1-1/4", Gr 5, Full Thd

(9-5/16") Hex, 7/16"-14 x 1 1/4", G5, Full Thd

1шт.

95-7

WASHER,7/16"

- 1-1/4" x 1/2" x #14 ga (9-5/16")

4шт.

92-7

LOCK WASHER,7/16"

(9-5/16") 7/16"

4шт.

25-107

NUT,7/16"-14, G5

- 7/16" N.C. hex (9-5/16")

4шт.

7

T25570

ANGLE - scraper, L.H. furrow filler (7-1/4") (YR. - 66-)

1шт.

11-744

BOLT - 7/16" x 2-3/4" cge (7-1/4")

3шт.

95-7

WASHER,7/16"

- 1-1/4" x 1/2" x #14 ga (7-1/4")

3шт.

92-7

LOCK WASHER,7/16"

(7-1/4") 7/16"

3шт.

25-107

NUT,7/16"-14, G5

- 7/16" N.C. hex (7-1/4")

3шт.

Выбрано товаров: 37
