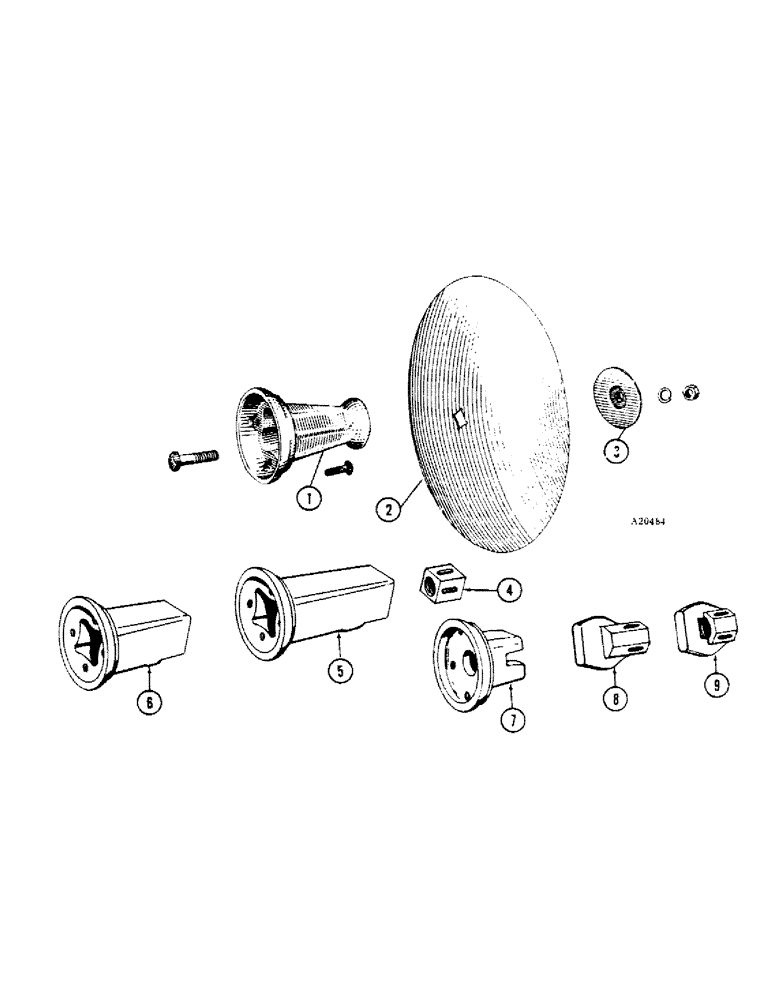

Запчасти Case IH B-SERIES (84) - FURROW FILLER

1

T1500

SPOOL

- furrow filler (YR. - 66-)

2шт.

11-724

BOLT (SPREADER),Short NK, 7/16"-14 x 1 1/2", G2

BOLT - 7/16" x 1-1/2" N.C. cge

4шт.

92-7

LOCK WASHER,7/16"

4шт.

25-107

NUT,7/16"-14, G5

- 7/16" N.C. hex

4шт.

15-1040

X

BOLT - 5/8" x 2-1/2" N.C. sq. hd.

2шт.

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

25-107

NUT,7/16"-14, G5

- 5/8" N.C. hex

2шт.

2

H5792S

DISC

DISK - plain (16 x 11 ga.) (YR. - 66-)

2шт.

2

X675

DISK - plain (18 x 11 ga.) (YR. - 66-)

2шт.

2

X3969

DISC

DISK - plain (20" x 10 ga.) (YR. - 69-)

2шт.

3

NLS

NO LONGER SERVICED

WASHER - end (YR. - 66-)

2шт.

4

T2039

NUT - gang bolt (YR. - 66-68), wing gang driver

2шт.

5

T2040

BLOCK DRIVER

DRIVER - wing, 9-5/16" spacing (YR. - 66-68), wing gang driver

4шт.

11-724

BOLT (SPREADER),Short NK, 7/16"-14 x 1 1/2", G2

BOLT - 7/16" x 1-1/2" cge, wing gang driver

16шт.

92-7

LOCK WASHER,7/16"

wing gang driver 7/16"

16шт.

25-107

NUT,7/16"-14, G5

- 7/16" N.C. hex, wing gang driver

16шт.

6

T2038

BLOCK DRIVER

DRIVER - wing, 7-1/4" spacing (YR. - 66-68), wing gang driver

4шт.

11-724

BOLT (SPREADER),Short NK, 7/16"-14 x 1 1/2", G2

BOLT - 7/16" x 1-1/2" cge, wing gang driver

16шт.

92-7

LOCK WASHER,7/16"

wing gang driver 7/16"

16шт.

7

T2177

BLOCK DRIVER

DRIVER - wing gang (YR. - 69-), wing gang driver

4шт.

8

T2179

NUT

- wing gang, 9-5/16" spacing (YR. - 69-), wing gang driver

4шт.

9

T2178

NUT

- wing gang, 7-1/4" spacing (YR. - 69-), wing gang driver

4шт.
