Запчасти Case IH B-SERIES (82) - HEAVY DUTY DISK SCRAPERS, FRONT AND REAR, 9-5/16 INCH SPACING, WB189, WB219

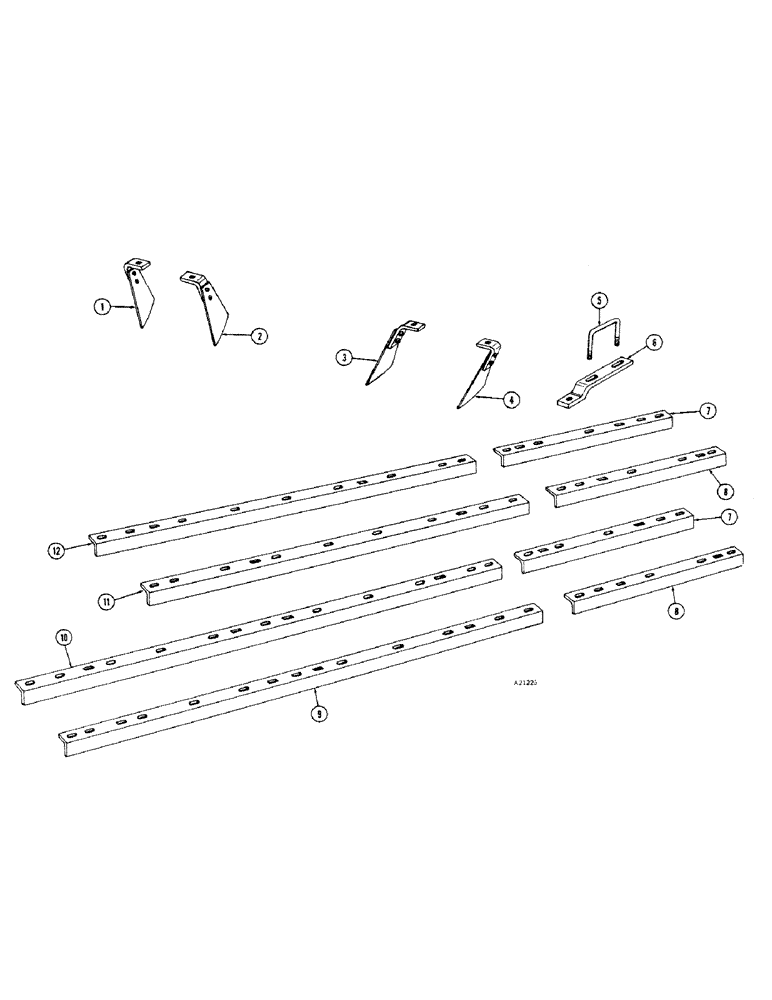

Схема запчастей Case IH B-SERIES - (82) - HEAVY DUTY DISK SCRAPERS, FRONT AND REAR, 9-5/16 INCH SPACING, WB189, WB219

Артикул

Название

Примечание

Количество

1

T39384

BLADE

END SCRAPER ASSY. - L.H. rear and R.H. front (YR. - 69-)

4шт.

11-824

BOLT,Short NK, 1/2"-13 x 1 1/2", G2

- cge., 1/2" x 1-1/2" N.C.

4шт.

95-8

WASHER,1/2"

(1-3/8" x 9/16" x 12 ga) 1/2"

4шт.

92-8

LOCK WASHER,1/2"

4шт.

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex

4шт.

2

T39379

SCRAPER ASSY. - L.H. rear & R.H. front (WB189) (YR. - 69-)

20шт.

T39379

SCRAPER ASSY. - L.H. rear & R.H. front (WB219) (YR. - 69-)

24шт.

11-824

BOLT,Short NK, 1/2"-13 x 1 1/2", G2

- cge., 1/2" x 1-1/2" N.C. (WB189)

20шт.

11-824

BOLT,Short NK, 1/2"-13 x 1 1/2", G2

- cge., 1/2" x 1-1/2" N.C. (WB219)

24шт.

95-8

WASHER,1/2"

(1-3/8" x 9/16" x 12 ga) (WB189) 1/2"

20шт.

95-8

WASHER,1/2"

(1-3/8" x 9/16" x 12 ga) (WB219) 1/2"

24шт.

92-8

LOCK WASHER,1/2"

(WB189) 1/2"

20шт.

92-8

LOCK WASHER,1/2"

(WB219) 1/2"

24шт.

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex (WB189)

20шт.

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex (WB219)

24шт.

3

T39378

SCRAPER ASSY. - L.H. front & R.H. rear (WB189) (YR. - 69-)

20шт.

3

T39378

SCRAPER ASSY. - L.H. front & R.H. rear (WB219) (YR. - 69-)

24шт.

11-824

BOLT,Short NK, 1/2"-13 x 1 1/2", G2

- cge., 1/2" x 1-1/2" N.C. (WB189)

20шт.

11-824

BOLT,Short NK, 1/2"-13 x 1 1/2", G2

- cge., 1/2" x 1-1/2" N.C. (WB219)

24шт.

95-8

WASHER,1/2"

(1-3/8" x 9/16" x 12 ga) (WB189) 1/2"

20шт.

95-8

WASHER,1/2"

(1-3/8" x 9/16" x 12 ga) (WB219) 1/2"

24шт.

92-8

LOCK WASHER,1/2"

(WB189) 1/2"

20шт.

92-8

LOCK WASHER,1/2"

(WB219) 1/2"

24шт.

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex (WB189)

20шт.

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex (WB219)

24шт.

4

T39383

END SCRAPER ASSY. - L.H. front & R.H. rear (YR. - 69-)

4шт.

11-824

BOLT,Short NK, 1/2"-13 x 1 1/2", G2

- cge., 1/2" x 1-1/2" N.C.

4шт.

95-8

WASHER,1/2"

(1-3/8" x 9/16" x 12 ga) 1/2"

4шт.

92-8

LOCK WASHER,1/2"

4шт.

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex

4шт.

5

T39389

"U" BOLT (WB189) (YR. - 69-)

16шт.

5

T39389

"U" BOLT (WB219) (YR. - 69-)

20шт.

95-8

WASHER,1/2"

(1-3/8" x 9/16" x 12 ga) (WB189) 1/2"

32шт.

95-8

WASHER,1/2"

(1-3/8" x 9/16" x 12 ga) (WB219) 1/2"

40шт.

92-8

LOCK WASHER,1/2"

(WB189) 1/2"

32шт.

92-8

LOCK WASHER,1/2"

(WB219) 1/2"

40шт.

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex (WB189)

32шт.

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex (WB219)

40шт.

6

T39385

SUPPORT - scraper bar (WB189) (YR. - 69-)

16шт.

6

T39385

SUPPORT - scraper bar (WB219) (YR. - 69-)

20шт.

11-828

BOLT (MACHINE)

BOLT - 1/2" x 1-3/4" N.C. (WB189)

16шт.

11-828

BOLT (MACHINE)

BOLT - 1/2" x 1-3/4" N.C. (WB219)

20шт.

92-8

LOCK WASHER,1/2"

(WB189) 1/2"

16шт.

92-8

LOCK WASHER,1/2"

(WB219) 1/2"

20шт.

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex (WB189)

16шт.

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex (WB219)

20шт.

7

T39364

BAR - scraper, wing, L.H. front & R.H. rear (YR. - 69-)

2шт.

8

T39365

BAR - scraper, wing, L.H. rear & R.H. front (YR. - 69-)

2шт.

9

T39362

BAR - scraper, L.H. rear & R.H. front (WB219) (YR. - 69-)

2шт.

10

T39361

BAR - scraper, L.H. front & R.H. rear (WB219) (YR. - 69-)

2шт.

11

T39372

BAR - scraper, L.H. rear & R.H. front (WB189) (YR. - 69-)

2шт.

12

T39371

BAR - scraper, L.H. front & R.H. rear (WB189) (YR. - 69-)

2шт.

Выбрано товаров: 52
