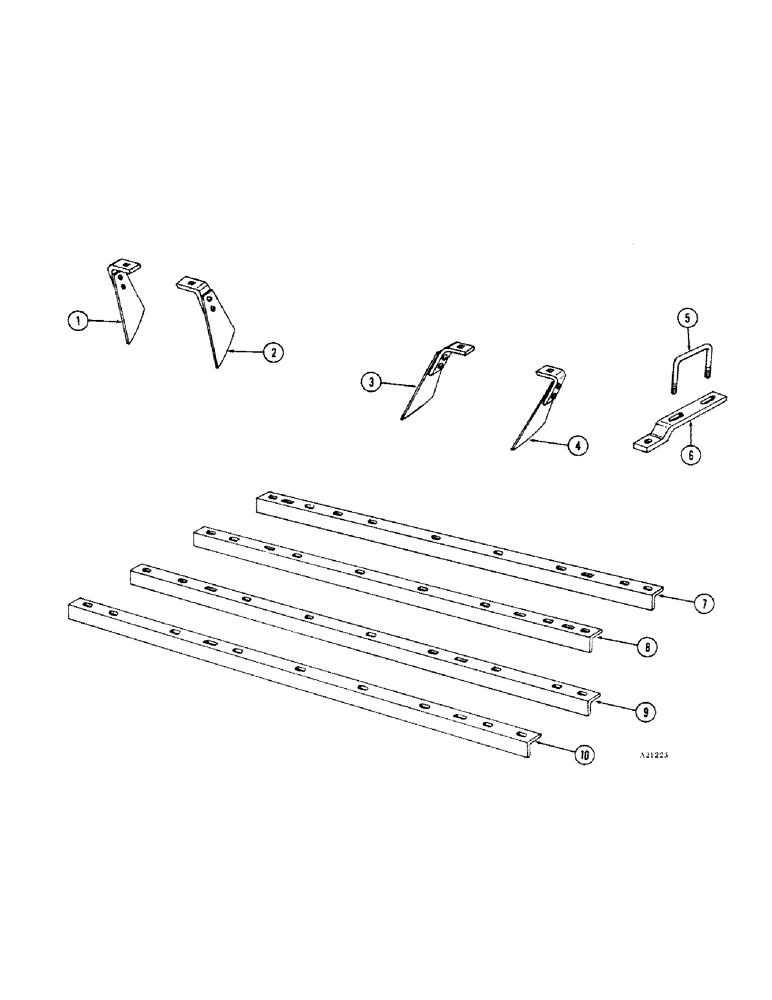

Запчасти Case IH B-SERIES (78) - HEAVY DUTY DISK SCRAPERS, FRONT AND REAR, 9-5/16 INCH SPACING, B109, B129

1

T39384

BLADE

END SCRAPER ASSY. - L.H. rear and R.H. front (YR. - 69-)

2шт.

11-824

BOLT,Short NK, 1/2"-13 x 1 1/2", G2

- cge., 1/2" x 1-1/2" N.C.

2шт.

95-8

WASHER,1/2"

(1-3/8" x 9/16" x 12 ga) 1/2"

2шт.

92-8

LOCK WASHER,1/2"

2шт.

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex

2шт.

2

T39379

SCRAPER ASSY. - L.H. rear and R.H. front (B109) (YR. - 69-)

12шт.

2

T39379

SCRAPER ASSY. - L.H. rear and R.H. front (B129) (YR. - 69-)

14шт.

11-824

BOLT,Short NK, 1/2"-13 x 1 1/2", G2

- cge., 1/2" x 1-1/2" N.C. (B109)

12шт.

11-824

BOLT,Short NK, 1/2"-13 x 1 1/2", G2

- cge., 1/2" x 1-1/2" N.C. (B129)

14шт.

95-8

WASHER,1/2"

(1-3/8" x 9/16" x 12 ga) (B109) 1/2"

12шт.

95-8

WASHER,1/2"

(1-3/8" x 9/16" x 12 ga) (B129) 1/2"

14шт.

92-8

LOCK WASHER,1/2"

(B109) 1/2"

12шт.

92-8

LOCK WASHER,1/2"

(B129) 1/2"

14шт.

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex (B109)

12шт.

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex (B129)

14шт.

3

T39378

SCRAP ASSY. - L.H. front and R.H. rear (B109) (YR. - 69-)

12шт.

3

T39378

SCRAP ASSY. - L.H. front and R.H. rear (B129) (YR. - 69-)

14шт.

11-824

BOLT,Short NK, 1/2"-13 x 1 1/2", G2

- cge., 1/2" x 1-1/2" N.C. (B109)

12шт.

11-824

BOLT,Short NK, 1/2"-13 x 1 1/2", G2

- cge., 1/2" x 1-1/2" N.C. (B129)

14шт.

95-8

WASHER,1/2"

(1-3/8" x 9/16" x 12 ga) (B109) 1/2"

12шт.

95-8

WASHER,1/2"

(1-3/8" x 9/16" x 12 ga) (B129) 1/2"

14шт.

92-8

LOCK WASHER,1/2"

(B109) 1/2"

12шт.

92-8

LOCK WASHER,1/2"

(B129) 1/2"

14шт.

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex (B109)

12шт.

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex (B129)

14шт.

4

T39383

END SCRAPER ASSY. - L.H. front and R.H. rear (YR. - 69-)

2шт.

11-824

BOLT,Short NK, 1/2"-13 x 1 1/2", G2

- cge., 1/2" x 1-1/2" N.C.

2шт.

95-8

WASHER,1/2"

(1-3/8" x 9/16" x 12 ga) 1/2"

2шт.

92-8

LOCK WASHER,1/2"

2шт.

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex

2шт.

5

T39389

"U" BOLT (YR. - 69-)

8шт.

95-8

WASHER,1/2"

(1-3/8" x 9/16" x 12 ga) 1/2"

16шт.

92-8

LOCK WASHER,1/2"

16шт.

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex

16шт.

6

T39385

SUPPORT - scraper bar (YR. - 69-)

8шт.

11-828

BOLT (MACHINE)

BOLT - 1/2" x 1-3/4" N.C.

8шт.

92-8

LOCK WASHER,1/2"

8шт.

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex

8шт.

7

T39375

BAR - scraper, L.H. front & R.H. rear (B109) (YR. - 69-)

2шт.

8

T39376

BAR - scraper, L.H. rear & R.H. front (B109) (YR. - 69-)

2шт.

9

T39371

BAR - scraper, L.H. front & R.H. rear (B129) (YR. - 69-)

2шт.

10

T39372

BAR - scraper, L.H. rear and R.H. front (B129) (YR. - 69-)

2шт.
