Запчасти Case IH B-SERIES (76) - HEAVY DUTY DISK SCRAPERS, FRONT AND REAR, 7-1/4 INCH SPACING, WB177, WB197, WB217

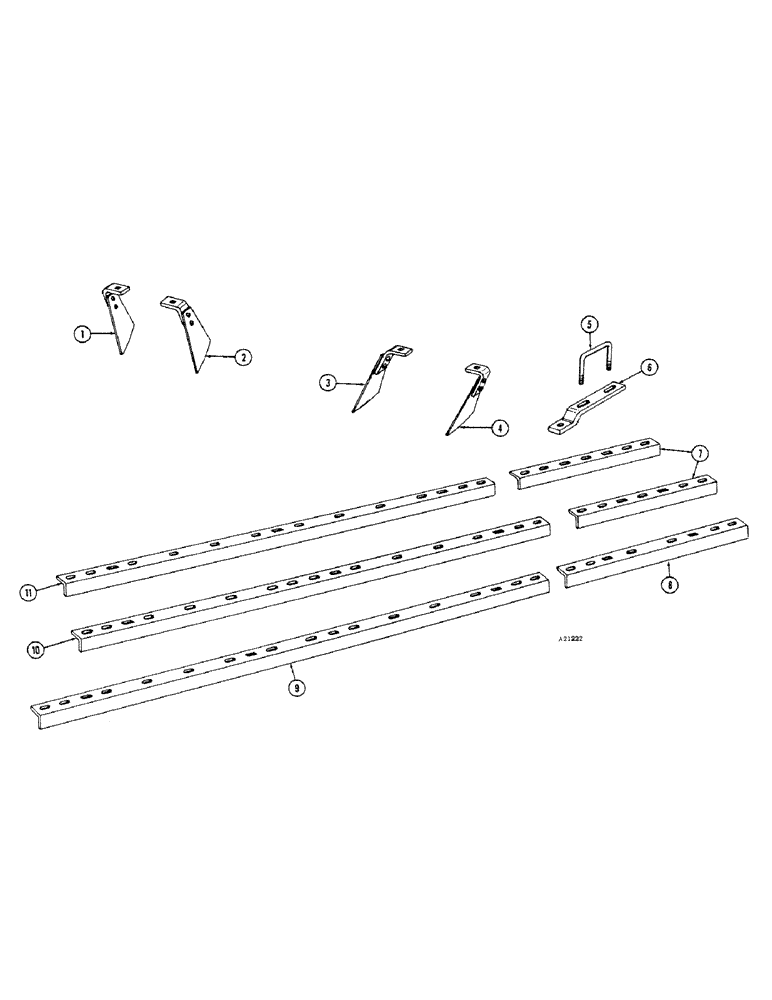

Схема запчастей Case IH B-SERIES - (76) - HEAVY DUTY DISK SCRAPERS, FRONT AND REAR, 7-1/4 INCH SPACING, WB177, WB197, WB217

Артикул

Название

Примечание

Количество

1

T39374

END SCRAPER ASSY. - L.H. rear and R.H. front (YR. - 69-)

4шт.

11-824

BOLT,Short NK, 1/2"-13 x 1 1/2", G2

- cge., 1/2" x 1-1/2" N.C.

4шт.

95-8

WASHER,1/2"

(1-3/8" x 9/16" x 12 ga) 1/2"

4шт.

92-8

LOCK WASHER,1/2"

4шт.

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex

4шт.

2

T39379

SCRAPER ASSY. - L.H. rear and R.H. front (WB177) (YR. - 69-)

26шт.

2

T39379

SCRAPER ASSY. - L.H. rear and R.H. front (WB197) (YR. - 69-)

28шт.

2

T39379

SCRAPER ASSY. - L.H. rear and R.H. front (WB217) (YR. - 69-)

32шт.

11-824

BOLT,Short NK, 1/2"-13 x 1 1/2", G2

- cge., 1/2" x 1-1/2" N.C. (WB177)

26шт.

11-824

BOLT,Short NK, 1/2"-13 x 1 1/2", G2

- cge., 1/2" x 1-1/2" N.C. (WB197)

28шт.

11-824

BOLT,Short NK, 1/2"-13 x 1 1/2", G2

- cge., 1/2" x 1-1/2" N.C. (WB217)

32шт.

95-8

WASHER,1/2"

(1-3/8" x 9/16" x 12 ga) (WB177) 1/2"

26шт.

95-8

WASHER,1/2"

(1-3/8" x 9/16" x 12 ga) (WB197) 1/2"

28шт.

95-8

WASHER,1/2"

(1-3/8" x 9/16" x 12 ga) (WB217) 1/2"

32шт.

92-8

LOCK WASHER,1/2"

(WB177) 1/2"

26шт.

92-8

LOCK WASHER,1/2"

(WB197) 1/2"

28шт.

92-8

LOCK WASHER,1/2"

(WB217) 1/2"

32шт.

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex (WB177)

26шт.

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex (WB197)

28шт.

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex (WB217)

32шт.

3

T39378

SCRAPER ASSY. - L.H. front and R.H. rear (WB177) (YR. - 69-)

26шт.

3

T39378

SCRAPER ASSY. - L.H. front and R.H. rear (WB197) (YR. - 69-)

28шт.

3

T39378

SCRAPER ASSY. - L.H. front and R.H. rear (WB217) (YR. - 69-)

32шт.

11-824

BOLT,Short NK, 1/2"-13 x 1 1/2", G2

- cge., 1/2" x 1-1/2" N.C. (WB177)

26шт.

11-824

BOLT,Short NK, 1/2"-13 x 1 1/2", G2

- cge., 1/2" x 1-1/2" N.C. (WB197)

28шт.

11-824

BOLT,Short NK, 1/2"-13 x 1 1/2", G2

- cge., 1/2" x 1-1/2" N.C. (WB217)

32шт.

95-8

WASHER,1/2"

(1-3/8" x 9/16" x 12 ga) (WB177) 1/2"

26шт.

95-8

WASHER,1/2"

(1-3/8" x 9/16" x 12 ga) (WB197) 1/2"

28шт.

95-8

WASHER,1/2"

(1-3/8" x 9/16" x 12 ga) (WB217) 1/2"

32шт.

92-8

LOCK WASHER,1/2"

(WB177) 1/2"

26шт.

92-8

LOCK WASHER,1/2"

(WB197) 1/2"

28шт.

92-8

LOCK WASHER,1/2"

(WB217) 1/2"

32шт.

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex (WB177)

26шт.

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex (WB197)

28шт.

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex (WB217)

32шт.

4

T39383

END SCRAPER ASSY. - L.H. front and R.H. rear (YR. - 69-)

4шт.

11-824

BOLT,Short NK, 1/2"-13 x 1 1/2", G2

- cge., 1/2" x 1-1/2" N.C.

4шт.

95-8

WASHER,1/2"

(1-3/8" x 9/16" x 12 ga) 1/2"

4шт.

92-8

LOCK WASHER,1/2"

4шт.

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex

4шт.

5

T39389

"U" BOLT (YR. - 69-)

20шт.

95-8

WASHER,1/2"

(1-3/8" x 9/16" x 12 ga) 1/2"

40шт.

92-8

LOCK WASHER,1/2"

40шт.

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex

40шт.

6

T39385

SUPPORT - scraper bar (YR. - 69-)

20шт.

11-828

BOLT (MACHINE)

BOLT - cge., 1/2" x 1-3/4" N.C.

20шт.

92-8

LOCK WASHER,1/2"

20шт.

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex

20шт.

7

T39366

BAR - scraper, wing (WB177, WB197) (YR. - 69-)

4шт.

8

T39367

BAR - scraper, wing (WB217) (YR. - 69-)

4шт.

9

T39368

BAR - scraper (WB217) (YR. - 69-)

4шт.

10

T39363

BAR - scraper (WB197) (YR. - 69-)

4шт.

11

T39360

BAR - scraper (WB177) (YR. 69-)

4шт.
