Запчасти Case IH B-SERIES (74) - HEAVY DUTY DISK SCRAPER, FRONT AND REAR, 7-1/4 INCH SPACING, B137, B147, B157

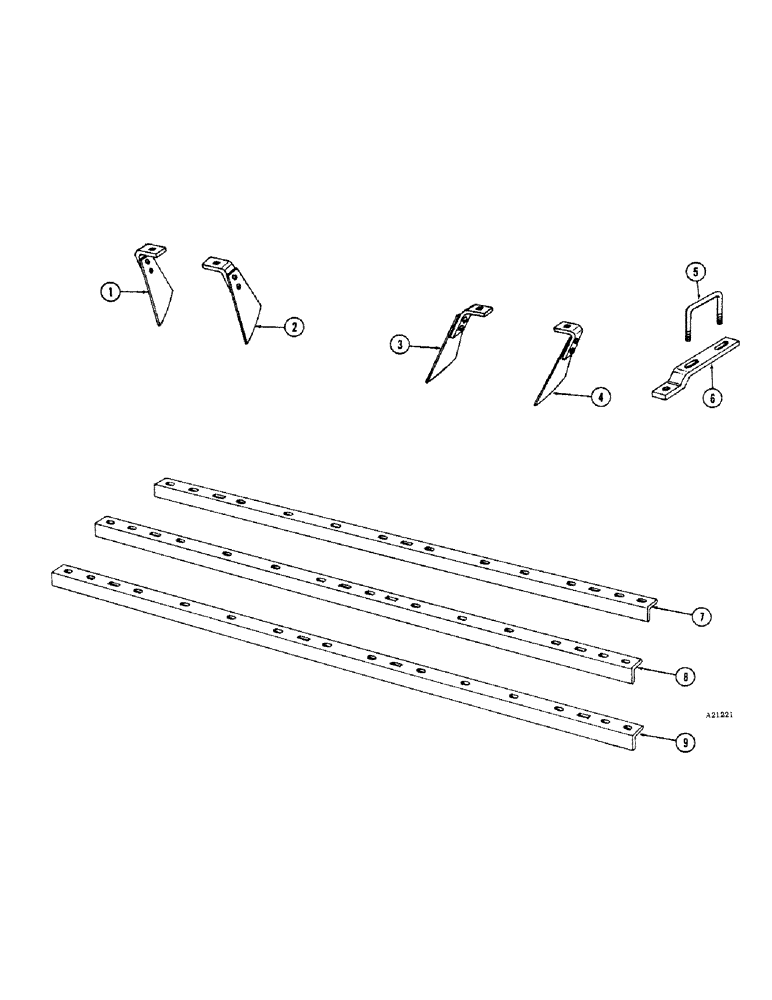

Схема запчастей Case IH B-SERIES - (74) - HEAVY DUTY DISK SCRAPER, FRONT AND REAR, 7-1/4 INCH SPACING, B137, B147, B157

Артикул

Название

Примечание

Количество

1

T39384

BLADE

END SCRAPER ASSY. - L.H. rear and R.H. front (YR. - 69-)

2шт.

11-824

BOLT,Short NK, 1/2"-13 x 1 1/2", G2

- cge., 1/2" x 1-1/2" N.C.

2шт.

95-8

WASHER,1/2"

(1-3/8" x 9/16" x 12 ga) 1/2"

2шт.

92-8

LOCK WASHER,1/2"

2шт.

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex

2шт.

2

T39379

SCRAPER ASSY. - L.H. rear and R.H. front (B137) (YR. - 69-)

20шт.

2

T39379

SCRAPER ASSY. - L.H. rear and R.H. front (B147) (YR. - 69-)

22шт.

2

T39379

SCRAPER ASSY. - L.H. rear and R.H. front (B157) (YR. - 69-)

24шт.

11-824

BOLT,Short NK, 1/2"-13 x 1 1/2", G2

- cge., 1/2" x 1-1/2" N.C. (B137)

20шт.

11-824

BOLT,Short NK, 1/2"-13 x 1 1/2", G2

- cge., 1/2" x 1-1/2" N.C. (B147)

22шт.

11-824

BOLT,Short NK, 1/2"-13 x 1 1/2", G2

- cge., 1/2" x 1-1/2" N.C. (B157)

24шт.

95-8

WASHER,1/2"

(1-3/8" x 9/16" x 12 ga) (B137) 1/2"

20шт.

95-8

WASHER,1/2"

(1-3/8" x 9/16" x 12 ga) (B147) 1/2"

22шт.

95-8

WASHER,1/2"

(1-3/8" x 9/16" x 12 ga) (B157) 1/2"

24шт.

92-8

LOCK WASHER,1/2"

(B137) 1/2"

20шт.

92-8

LOCK WASHER,1/2"

(B147) 1/2"

22шт.

92-8

LOCK WASHER,1/2"

(B157) 1/2"

24шт.

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex (B137)

20шт.

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex (B147)

22шт.

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex (B157)

24шт.

3

T39378

SCRAPER ASSY. - L.H. front and R.H. rear (B137) (YR. - 69-)

20шт.

3

T39378

SCRAPER ASSY. - L.H. front and R.H. rear (B147) (YR. - 69-)

22шт.

3

T39378

SCRAPER ASSY. - L.H. front and R.H. rear (B157) (YR. - 69-)

24шт.

11-824

BOLT,Short NK, 1/2"-13 x 1 1/2", G2

- cge., 1/2" x 1-1/2" N.C. (B137)

20шт.

11-824

BOLT,Short NK, 1/2"-13 x 1 1/2", G2

- cge., 1/2" x 1-1/2" N.C. (B147)

22шт.

11-824

BOLT,Short NK, 1/2"-13 x 1 1/2", G2

- cge., 1/2" x 1-1/2" N.C. (B157)

24шт.

95-8

WASHER,1/2"

(1-3/8" x 9/16" x 12 ga) (B137) 1/2"

20шт.

95-8

WASHER,1/2"

(1-3/8" x 9/16" x 12 ga) (B147) 1/2"

22шт.

95-8

WASHER,1/2"

(1-3/8" x 9/16" x 12 ga) (B157) 1/2"

24шт.

92-8

LOCK WASHER,1/2"

(B137) 1/2"

20шт.

92-8

LOCK WASHER,1/2"

(B147) 1/2"

22шт.

92-8

LOCK WASHER,1/2"

(B157) 1/2"

24шт.

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex (B137)

20шт.

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex (B147)

22шт.

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex (B157)

24шт.

4

T39383

END SCRAPER ASSY. - L.H. front and R.H. rear (YR. - 69-)

2шт.

11-824

BOLT,Short NK, 1/2"-13 x 1 1/2", G2

- cge., 1/2" x 1-1/2" N.C.

2шт.

95-8

WASHER,1/2"

(1-3/8" x 9/16" x 12 ga) 1/2"

2шт.

92-8

LOCK WASHER,1/2"

2шт.

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex

2шт.

5

T39389

"U" BOLT (YR. - 69-)

12шт.

95-8

WASHER,1/2"

(1-3/8" x 9/16" x 12 ga) 1/2"

24шт.

92-8

LOCK WASHER,1/2"

24шт.

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex

24шт.

6

T39385

SUPPORT - scraper bar (YR. - 69-)

12шт.

11-828

BOLT (MACHINE)

BOLT - cge., 1/2" x 1-3/4" N.C.

12шт.

92-8

LOCK WASHER,1/2"

12шт.

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex

12шт.

7

T39360

BAR - scraper (B137) (YR. - 69-)

4шт.

8

T39363

BAR - scraper (B147) (YR. - 69-)

4шт.

9

T39368

BAR - scraper (B157) (YR. - 69-)

4шт.

Выбрано товаров: 51
