Запчасти Case IH B-SERIES (72) - HEAVY DUTY DISK SCRAPERS, FRONT AND REAR, 7-1/4 INCH SPACING, B97, B117, B127

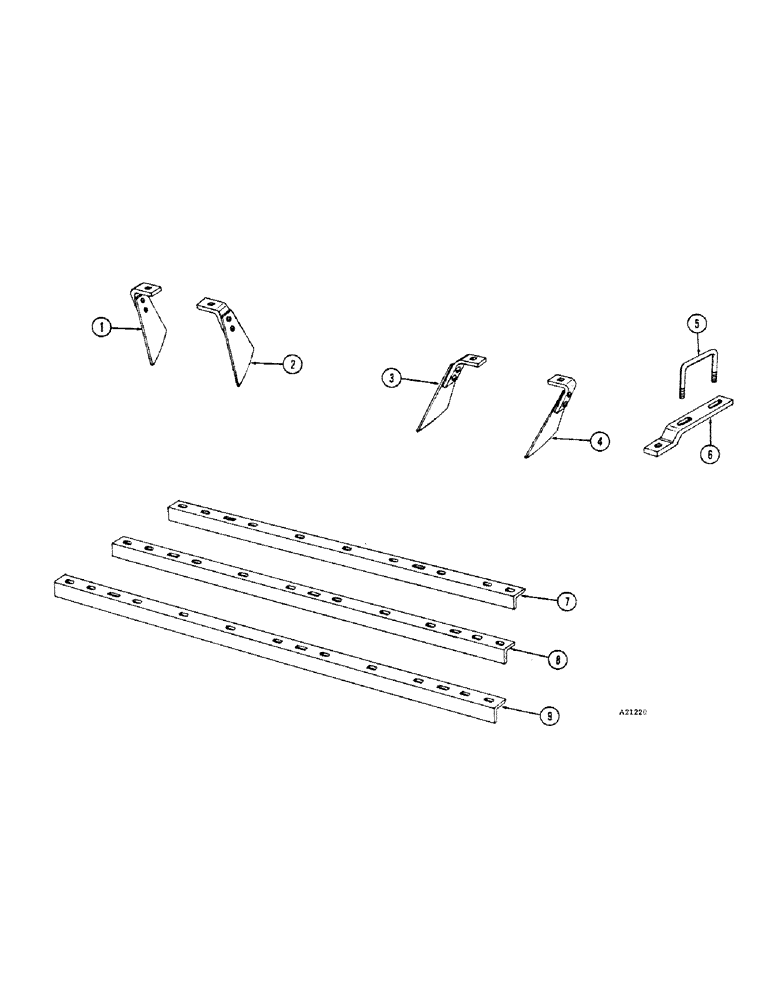

Схема запчастей Case IH B-SERIES - (72) - HEAVY DUTY DISK SCRAPERS, FRONT AND REAR, 7-1/4 INCH SPACING, B97, B117, B127

Артикул

Название

Примечание

Количество

1

T39384

BLADE

END SCRAPER ASSY. - L.H. rear and R.H. front (YR. - 69-)

2шт.

11-824

BOLT,Short NK, 1/2"-13 x 1 1/2", G2

- cge., 1/4" x 1-1/2" N.C.

2шт.

95-8

WASHER,1/2"

(1-3/8" x 9/16" x 12 ga) 1/2"

2шт.

92-8

LOCK WASHER,1/2"

2шт.

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex

2шт.

2

T39379

SCRAPER ASSY. - L.H. rear and R.H. front (B97) (YR. - 69-)

14шт.

2

T39379

SCRAPER ASSY. - L.H. rear and R.H. front (B117) (YR. - 69-)

16шт.

2

T39379

SCRAPER ASSY. - L.H. rear and R.H. front (B127) (YR. - 69-)

18шт.

11-824

BOLT,Short NK, 1/2"-13 x 1 1/2", G2

- cge., 1/2" x 1-1/2" N.C. (B97)

14шт.

11-824

BOLT,Short NK, 1/2"-13 x 1 1/2", G2

- cge., 1/2" x 1-1/2" N.C. (B117)

16шт.

11-824

BOLT,Short NK, 1/2"-13 x 1 1/2", G2

- cge., 1/2" x 1-1/2" N.C. (B127)

18шт.

95-8

WASHER,1/2"

(1-3/8" x 9/16" x 12 ga) (B97) 1/2"

14шт.

95-8

WASHER,1/2"

(1-3/8" x 9/16" x 12 ga) (B117) 1/2"

16шт.

95-8

WASHER,1/2"

(1-3/8" x 9/16" x 12 ga) (B127) 1/2"

18шт.

92-8

LOCK WASHER,1/2"

(B97) 1/2"

14шт.

92-8

LOCK WASHER,1/2"

(B117) 1/2"

16шт.

92-8

LOCK WASHER,1/2"

(B127) 1/2"

18шт.

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex (B97)

14шт.

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex (B117)

16шт.

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex (B127)

18шт.

3

T39378

SCRAPER ASSY. - L.H. front and R.H. rear (B97) (YR. - 69-)

14шт.

3

T39378

SCRAPER ASSY. - L.H. front and R.H. rear (B117) (YR. - 69-)

16шт.

3

T39378

SCRAPER ASSY. - L.H. front and R.H. rear (B127) (YR. - 69-)

18шт.

11-824

BOLT,Short NK, 1/2"-13 x 1 1/2", G2

- cge., 1/2" x 1-1/2" N.C. (B97)

14шт.

11-824

BOLT,Short NK, 1/2"-13 x 1 1/2", G2

- cge., 1/2" x 1-1/2" N.C. (B117)

16шт.

11-824

BOLT,Short NK, 1/2"-13 x 1 1/2", G2

- cge., 1/2" x 1-1/2" N.C. (B127)

18шт.

95-8

WASHER,1/2"

(1-3/8" x 9/16" x 12 ga) (B97) 1/2"

14шт.

95-8

WASHER,1/2"

(1-3/8" x 9/16" x 12 ga) (B117) 1/2"

16шт.

95-8

WASHER,1/2"

(1-3/8" x 9/16" x 12 ga) (B127) 1/2"

18шт.

92-8

LOCK WASHER,1/2"

(B97) 1/2"

14шт.

92-8

LOCK WASHER,1/2"

(B117) 1/2"

16шт.

92-8

LOCK WASHER,1/2"

(B127) 1/2"

18шт.

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex (B97)

14шт.

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex (B117)

16шт.

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex (B127)

18шт.

4

T39383

END SCRAPER ASSY. - L.H. front and R.H. rear (YR. - 69-)

2шт.

11-824

BOLT,Short NK, 1/2"-13 x 1 1/2", G2

- cge., 1/2" x 1-1/2" N.C.

2шт.

95-8

WASHER,1/2"

(1-3/8" x 9/16" x 12 ga) 1/2"

2шт.

92-8

LOCK WASHER,1/2"

2шт.

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex

2шт.

5

T39389

"U" BOLT (B97) (YR. - 69-)

8шт.

5

T39389

"U" BOLT (B117, B127) (YR. - 69-)

12шт.

95-8

WASHER,1/2"

(1-3/8" x 9/16" x 12 ga) (B97) 1/2"

16шт.

95-8

WASHER,1/2"

(1-3/8" x 9/16" x 12 ga) (B117, B127) 1/2"

24шт.

92-8

LOCK WASHER,1/2"

(B97) 1/2"

16шт.

92-8

LOCK WASHER,1/2"

(B117, B127) 1/2"

24шт.

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex (B97)

16шт.

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex (B117, B127)

24шт.

6

T39385

SUPPORT - scraper bar (B97) (YR. - 69-)

8шт.

6

T39385

SUPPORT - scraper bar (B117, B127) (YR. - 69-)

12шт.

11-828

BOLT (MACHINE)

BOLT - cge., 1/2" x 1-3/4" N.C. (B97)

8шт.

11-828

BOLT (MACHINE)

BOLT - cge., 1/2" x 1-3/4" N.C. (B117, B127)

12шт.

92-8

LOCK WASHER,1/2"

(B97) 1/2"

8шт.

92-8

LOCK WASHER,1/2"

(B117, B127) 1/2"

12шт.

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex (B97)

8шт.

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex (B117, B127)

12шт.

7

T39377

BAR - scraper (B97) (YR. - 69-)

4шт.

8

T39374

BAR - scraper (B117) (YR. - 69-)

4шт.

9

T39373

BAR - scraper (B127) (YR. - 69-)

4шт.

Выбрано товаров: 59
