Запчасти Case IH B-SERIES (70) - WING DISK SCRAPERS, FRONT AND REAR, 9-5/16 INCH SPACING, WB189, WB219

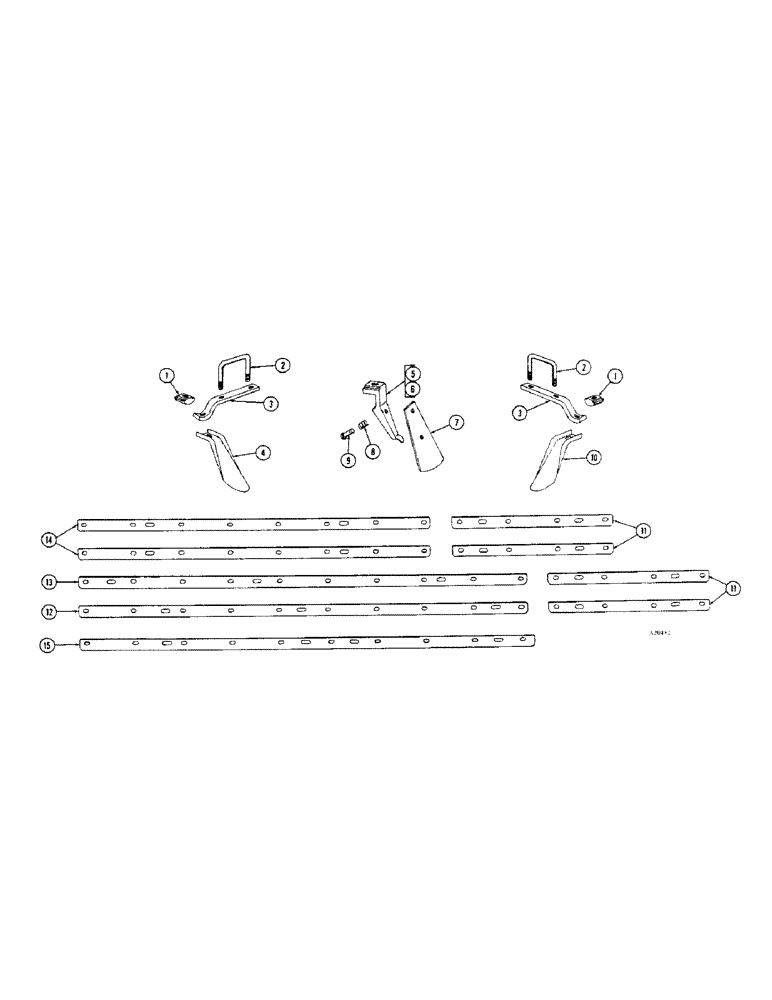

Схема запчастей Case IH B-SERIES - (70) - WING DISK SCRAPERS, FRONT AND REAR, 9-5/16 INCH SPACING, WB189, WB219

Артикул

Название

Примечание

Количество

1

H1130

PAD

- scraper bar (WB189) (YR. - 66-)

16шт.

1

H1130

PAD

- scraper bar (WB219) (YR. - 66-)

20шт.

2

T33321

"U" BOLT - pivot bracket (WB189) (YR. - 66-)

16шт.

2

T33321

"U" BOLT - pivot bracket (WB219) (YR. - 66-)

20шт.

92-8

LOCK WASHER,1/2"

(WB189) 1/2"

32шт.

92-8

LOCK WASHER,1/2"

(WB219) 1/2"

40шт.

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex (WB189)

32шт.

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex (WB219)

40шт.

3

T33323

BRACKET - scraper bar (WB189) (YR. - 66-)

16шт.

3

T33323

BRACKET - scraper bar (WB219) (YR. - 66-)

20шт.

11-844

BOLT

- 1/2" x 2-3/4" cge (WB189)

16шт.

11-844

BOLT

- 1/2" x 2-3/4" cge (WB219)

20шт.

95-8

WASHER,1/2"

(1-3/8" x 9/16" x 12 ga) (WB189) 1/2"

16шт.

95-8

WASHER,1/2"

(1-3/8" x 9/16" x 12 ga) (WB219) 1/2"

20шт.

92-8

LOCK WASHER,1/2"

(WB189) 1/2"

16шт.

92-8

LOCK WASHER,1/2"

(WB219) 1/2"

20шт.

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex (WB189)

16шт.

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex (WB219)

20шт.

4

T20465

SCRAPER

- R.H. rear and L.H. front (WB189) (YR. - 66-)

24шт.

4

T20465

SCRAPER

- R.H. rear and L.H. front (WB219) (YR. - 66-)

28шт.

11-728

BOLT (MACHINE),Short NK, 7/16"-14 x 1 3/4", G2

BOLT - 7/16" x 1-3/4" cge (WB189)

24шт.

11-728

BOLT (MACHINE),Short NK, 7/16"-14 x 1 3/4", G2

BOLT - 7/16" x 1-3/4" cge (WB219)

28шт.

95-7

WASHER,7/16"

- 1-1/4" x 1/2" x 14 ga (WB189)

24шт.

95-7

WASHER,7/16"

- 1-1/4" x 1/2" x 14 ga (WB219)

28шт.

92-7

LOCK WASHER,7/16"

(WB189) 7/16"

24шт.

92-7

LOCK WASHER,7/16"

(WB219) 7/16"

28шт.

25-107

NUT,7/16"-14, G5

- 7/16" N.C. hex (WB189)

24шт.

25-107

NUT,7/16"-14, G5

- 7/16" N.C. hex (WB219)

28шт.

5

T2032

BRACKET - scraper, R.H. rear and L.H. front (WB189) (YR. - 66-)

24шт.

5

T2032

BRACKET - scraper, R.H. rear and L.H. front (WB219) (YR. - 66-)

28шт.

11-732

BOLT

- 7/16" x 2" cge (WB189)

24шт.

11-732

BOLT

- 7/16" x 2" cge (WB219)

28шт.

95-7

WASHER,7/16"

- 1-1/4" x 1/2" x 14 ga (WB189)

24шт.

95-7

WASHER,7/16"

- 1-1/4" x 1/2" x 14 ga (WB219)

28шт.

92-7

LOCK WASHER,7/16"

(WB189) 7/16"

24шт.

92-7

LOCK WASHER,7/16"

(WB219) 7/16"

28шт.

25-107

NUT,7/16"-14, G5

- 7/16" N.C. hex (WB189)

24шт.

25-107

NUT,7/16"-14, G5

- 7/16" N.C. hex (WB219)

28шт.

6

T2033

BRACKET - scraper, R.H. front and L.H. rear (WB189) (YR. - 66-)

24шт.

6

T2033

BRACKET - scraper, R.H. front and L.H. rear (WB219) (YR. - 66-)

28шт.

11-732

BOLT

- 7/16" x 2" cge (WB189)

24шт.

11-732

BOLT

- 7/16" x 2" cge (WB219)

28шт.

95-7

WASHER,7/16"

- 1-1/4" x 1/2" x 14 ga (WB189)

24шт.

95-7

WASHER,7/16"

- 1-1/4" x 1/2" x 14 ga (WB219)

28шт.

92-7

LOCK WASHER,7/16"

(WB189) 7/16"

24шт.

92-7

LOCK WASHER,7/16"

(WB219) 7/16"

28шт.

25-107

NUT,7/16"-14, G5

- 7/16" N.C. hex (WB189)

24шт.

25-107

NUT,7/16"-14, G5

- 7/16" N.C. hex (WB219)

28шт.

7

T33463

BLADE - scraper (WB189) (YR. - 66-)

48шт.

7

T33463

BLADE - scraper (WB219) (YR. - 66-)

56шт.

8

215GD

SPRING - scraper (WB189) (YR. - 66-)

48шт.

8

215GD

SPRING - scraper (WB219) (YR. - 66-)

56шт.

9

B18213

PIN - scraper (WB189) (YR. - 66-)

48шт.

9

B18213

PIN - scraper (WB219) (YR. - 66-)

56шт.

132-48

COTTER PIN,1/8" x 1"

Pin, Split (Cotter), (WB189) 1/8" x 1"

48шт.

132-48

COTTER PIN,1/8" x 1"

Pin, Split (Cotter), (WB219) 1/8" x 1"

56шт.

10

T20464

SCRAPER

- R.H. front and L.H. rear (WB189) (YR. - 66-)

24шт.

10

T20464

SCRAPER

- R.H. front and L.H. rear (WB219) (YR. - 66-)

28шт.

11-728

BOLT (MACHINE),Short NK, 7/16"-14 x 1 3/4", G2

BOLT - 7/16" x 1-3/4" cge (WB189)

24шт.

11-728

BOLT (MACHINE),Short NK, 7/16"-14 x 1 3/4", G2

BOLT - 7/16" x 1-3/4" cge (WB219)

28шт.

95-7

WASHER,7/16"

- 1-1/4" x 1/2" x 14 ga (WB189)

24шт.

95-7

WASHER,7/16"

- 1-1/4" x 1/2" x 14 ga (WB219)

28шт.

92-7

LOCK WASHER,7/16"

(WB189) 7/16"

24шт.

92-7

LOCK WASHER,7/16"

(WB219) 7/16"

28шт.

25-107

NUT,7/16"-14, G5

- 7/16" N.C. hex (WB189)

24шт.

25-107

NUT,7/16"-14, G5

- 7/16" N.C. hex (WB219)

28шт.

11

T33462

BAR - scraper, front and rear wing (YR. - 66-)

4шт.

12

T33426

BAR - scraper, rear (WB219) (YR. - 66-69)

2шт.

13

T33425

BAR - scraper, front (Use T38102) (WB219) (YR. - 66-69)

2шт.

14

T33419

BAR - scraper, front and rear (WB189) (YR. - 66-)

4шт.

15

T38102

BAR - scraper, front and rear (WB219) (YR. - 69-)

4шт.

Выбрано товаров: 71
