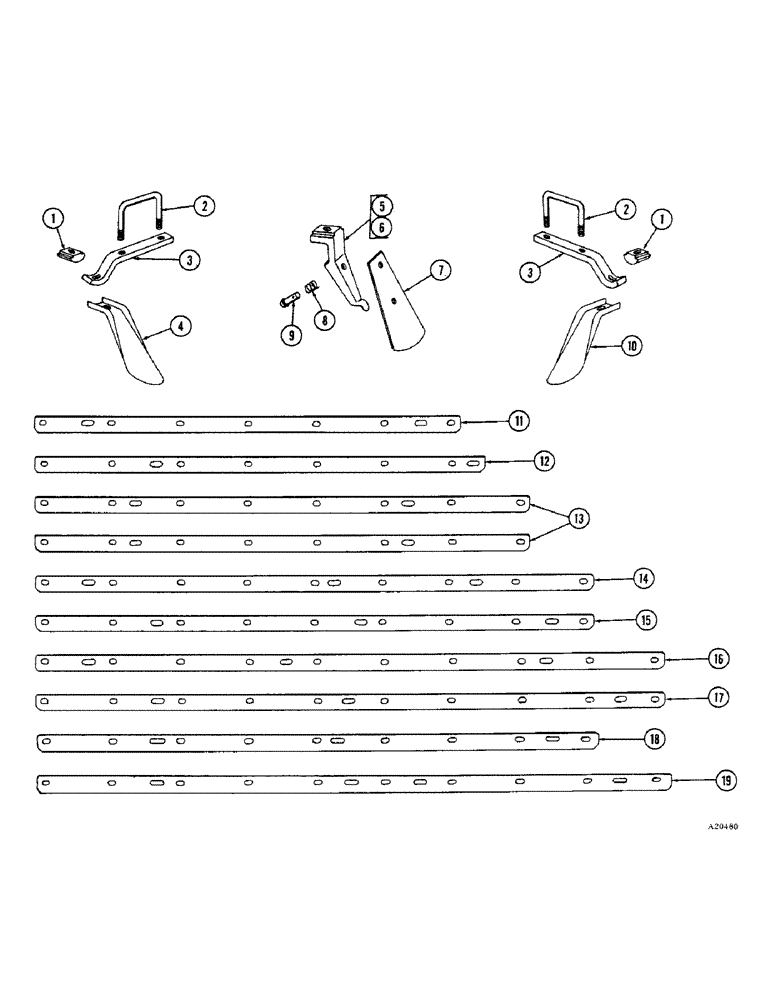

Запчасти Case IH B-SERIES (68) - DISK SCRAPERS, FRONT AND REAR, 9-5/16 INCH SPACING, B139 B159

1

H1130

PAD

- scraper bar (YR. - 66-)

12шт.

2

T33321

"U" BOLT - pivot bracket (YR. - 66-)

12шт.

92-8

LOCK WASHER,1/2"

24шт.

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex

24шт.

3

T33323

BRACKET - scraper bar (YR. - 66-)

12шт.

11-844

BOLT

- 1/2" x 2-3/4" cge

12шт.

95-8

WASHER,1/2"

(1-3/8" x 9/16" x 12 ga) 1/2"

12шт.

92-8

LOCK WASHER,1/2"

12шт.

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex

12шт.

4

T20465

SCRAPER

- R.H. rear and L.H. front (B139) (YR. - 66-)

18шт.

4

T20465

SCRAPER

- R.H. rear and L.H. front (B159) (YR. - 66-)

20шт.

11-728

BOLT (MACHINE),Short NK, 7/16"-14 x 1 3/4", G2

BOLT - 7/16" x 1-3/4" cge (B139)

18шт.

11-728

BOLT (MACHINE),Short NK, 7/16"-14 x 1 3/4", G2

BOLT - 7/16" x 1-3/4" cge (B159)

20шт.

95-7

WASHER,7/16"

- 1-1/4" x 1/2" x 14 ga (B139)

18шт.

95-7

WASHER,7/16"

- 1-1/4" x 1/2" x 14 ga (B159)

20шт.

92-7

LOCK WASHER,7/16"

(B139) 7/16"

18шт.

92-7

LOCK WASHER,7/16"

(B159) 7/16"

20шт.

25-107

NUT,7/16"-14, G5

- 7/16" N.C. hex (B139)

18шт.

25-107

NUT,7/16"-14, G5

- 7/16" N.C. hex (B159)

20шт.

5

T2032

BRACKET - scraper R.H. rear and L.H. front (B139) (YR. - 66-)

18шт.

5

T2032

BRACKET - scraper R.H. rear and L.H. front (B159) (YR. - 66-)

20шт.

11-732

BOLT

- 7/16" x 2" cge (B139)

18шт.

11-732

BOLT

- 7/16" x 2" cge (B159)

20шт.

95-7

WASHER,7/16"

- 1-1/4" x 1/2" x 14 ga (B139)

18шт.

95-7

WASHER,7/16"

- 1-1/4" x 1/2" x 14 ga (B159)

20шт.

92-7

LOCK WASHER,7/16"

(B139) 7/16"

18шт.

92-7

LOCK WASHER,7/16"

(B159) 7/16"

20шт.

25-107

NUT,7/16"-14, G5

- 7/16" N.C. hex (B139)

18шт.

25-107

NUT,7/16"-14, G5

- 7/16" N.C. hex (B159)

20шт.

6

T2033

BRACKET - scraper, R.H. front and L.H. rear (B139) (YR. - 66-)

18шт.

6

T2033

BRACKET - scraper, R.H. front and L.H. rear (B159) (YR. - 66-)

20шт.

11-732

BOLT

- 7/16" x 2" cge (B139)

18шт.

11-732

BOLT

- 7/16" x 2" cge (B159)

20шт.

95-7

WASHER,7/16"

- 1-1/4" x 1/2" x 14 ga (B139)

18шт.

95-7

WASHER,7/16"

- 1-1/4" x 1/2" x 14 ga (B159)

20шт.

92-7

LOCK WASHER,7/16"

(B139) 7/16"

18шт.

92-7

LOCK WASHER,7/16"

(B159) 7/16"

20шт.

25-107

NUT,7/16"-14, G5

- 7/16" N.C. hex (B139)

18шт.

25-107

NUT,7/16"-14, G5

- 7/16" N.C. hex (B159)

20шт.

7

T33463

BLADE - scraper (B139) (YR. - 66-)

36шт.

7

T33463

BLADE - scraper (B159) (YR. - 66-)

40шт.

8

215GD

SPRING - scraper (B139) (YR. - 66-)

36шт.

8

215GD

SPRING - scraper (B159) (YR. - 66-)

40шт.

9

B18213

PIN - scraper (B139) (YR. - 66-)

36шт.

9

B18213

PIN - scraper (B159) (YR. - 66-)

40шт.

132-48

COTTER PIN,1/8" x 1"

Pin, Split (Cotter), (B139) 1/8" x 1"

36шт.

132-48

COTTER PIN,1/8" x 1"

Pin, Split (Cotter), (B159) 1/8" x 1"

40шт.

10

T20464

SCRAPER

- R.H. front and L.H. rear (B139) (YR. - 66-)

18шт.

10

T20464

SCRAPER

- R.H. front and L.H. rear (B159) (YR. - 66-)

20шт.

11-728

BOLT (MACHINE),Short NK, 7/16"-14 x 1 3/4", G2

BOLT - 7/16" x 1-3/4" cge (B139)

18шт.

11-728

BOLT (MACHINE),Short NK, 7/16"-14 x 1 3/4", G2

BOLT - 7/16" x 1-3/4" cge (B159)

20шт.

95-7

WASHER,7/16"

- 1-1/4" x 1/2" x 14 ga (B139)

18шт.

95-7

WASHER,7/16"

- 1-1/4" x 1/2" x 14 ga (B159)

20шт.

92-7

LOCK WASHER,7/16"

(B139) 7/16"

18шт.

92-7

LOCK WASHER,7/16"

(B159) 7/16"

20шт.

25-107

NUT,7/16"-14, G5

- 7/16" N.C. hex (B139)

18шт.

25-107

NUT,7/16"-14, G5

- 7/16" N.C. hex (B159)

20шт.

14

T33333

BAR - scraper, front (Use T38101) (B139) (YR. - 66-69)

2шт.

15

T33334

BAR - scraper, rear (Use T38101) (B139) (YR. - 66-69)

2шт.

16

T33425

BAR - scraper, front (Use T38102) (B159) (YR. - 66-69)

2шт.

17

T33426

BAR - scraper, rear (B159) (YR. - 66-69)

2шт.

18

T38101

BAR - scraper, front and rear (B139) (YR. - 69-)

4шт.

19

T38102

BAR - scraper, front and rear (B159) (YR. - 69-)

4шт.
