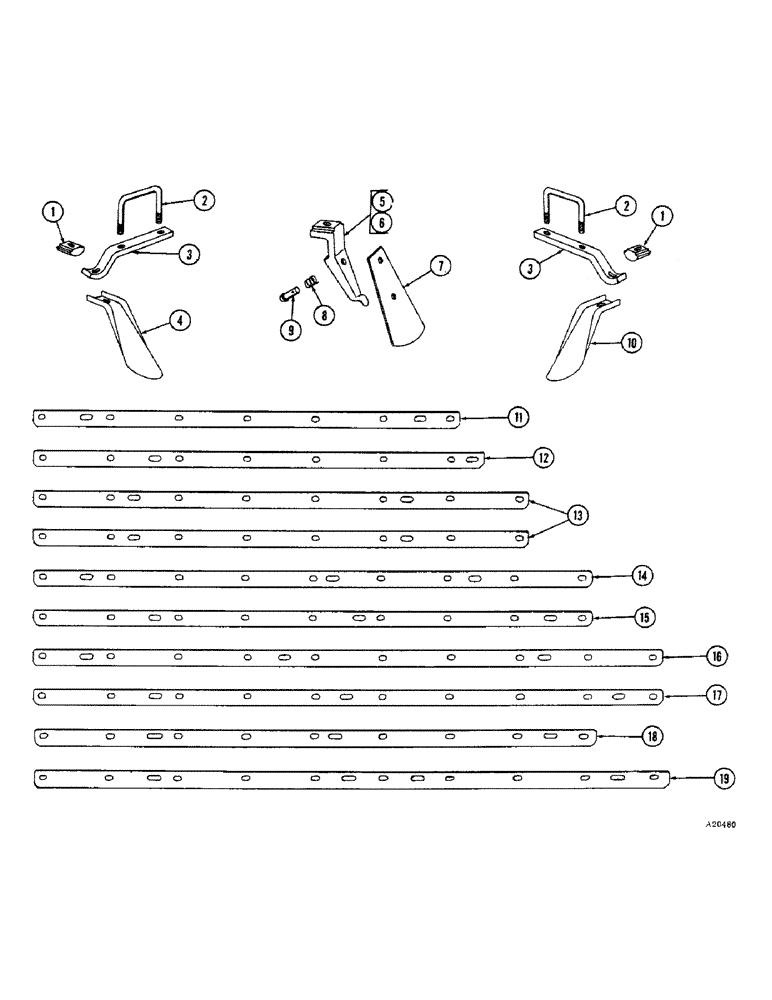

Запчасти Case IH B-SERIES (66) - DISK SCRAPERS, FRONT AND REAR, 9-5/16 INCH SPACING, B109 B129

1

H1130

PAD

- scraper bar (YR. - 66-)

8шт.

2

T33321

"U" BOLT - pivot bracket (YR. - 66-)

8шт.

92-8

LOCK WASHER,1/2"

16шт.

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex

16шт.

3

T33323

BRACKET - scraper bar (YR. - 66-)

8шт.

11-844

BOLT

- 1/2" x 2-3/4" cge

8шт.

95-8

WASHER,1/2"

(1-3/8" x 9/16" x 12 ga) 1/2"

8шт.

92-8

LOCK WASHER,1/2"

8шт.

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex

8шт.

4

T20465

SCRAPER

- R.H. rear & L.H. front (B109) (YR. - 66-)

14шт.

4

T20465

SCRAPER

- R.H. rear & L.H. front (B129) (YR. - 66-)

16шт.

11-728

BOLT (MACHINE),Short NK, 7/16"-14 x 1 3/4", G2

BOLT - 7/16" x 1-3/4" cge (B109)

14шт.

11-728

BOLT (MACHINE),Short NK, 7/16"-14 x 1 3/4", G2

BOLT - 7/16" x 1-3/4" cge (B129)

16шт.

95-7

WASHER,7/16"

- 1-1/4" x 1/2" x 14 ga (B109)

14шт.

95-7

WASHER,7/16"

- 1-1/4" x 1/2" x 14 ga (B129)

16шт.

92-7

LOCK WASHER,7/16"

(B109) 7/16"

14шт.

92-7

LOCK WASHER,7/16"

(B129) 7/16"

16шт.

25-107

NUT,7/16"-14, G5

- 7/16" N.C. hex (B109)

14шт.

25-107

NUT,7/16"-14, G5

- 7/16" N.C. hex (B129)

16шт.

5

T2032

BRACKET - scraper, R.H. rear and L.H. front (B109) (YR. - 66-)

14шт.

5

T2032

BRACKET - scraper, R.H. rear and L.H. front (B129) (YR. - 66-)

16шт.

11-732

BOLT

- 7/16" x 2" cge (B109)

14шт.

11-732

BOLT

- 7/16" x 2" cge (B129)

16шт.

95-7

WASHER,7/16"

- 1-1/4" x 1/2" x 14 ga (B109)

14шт.

95-7

WASHER,7/16"

- 1-1/4" x 1/2" x 14 ga (B129)

16шт.

92-7

LOCK WASHER,7/16"

(B109) 7/16"

14шт.

92-7

LOCK WASHER,7/16"

(B129) 7/16"

16шт.

25-107

NUT,7/16"-14, G5

- 7/16" N.C. hex (B109)

14шт.

25-107

NUT,7/16"-14, G5

- 7/16" N.C. hex (B129)

16шт.

6

T2033

BRACKET - scraper, R.H. front and L.H. rear (B109) (YR. - 66-)

14шт.

6

T2033

BRACKET - scraper, R.H. front and L.H. rear (B129) (YR. - 66-)

16шт.

11-732

BOLT

- 7/16" x 2" cge (B109)

14шт.

11-732

BOLT

- 7/16" x 2" cge (B129)

16шт.

95-7

WASHER,7/16"

- 1-1/4" x 1/2" x 14 ga (B109)

14шт.

95-7

WASHER,7/16"

- 1-1/4" x 1/2" x 14 ga (B129)

16шт.

92-7

LOCK WASHER,7/16"

(B109) 7/16"

14шт.

92-7

LOCK WASHER,7/16"

(B129) 7/16"

16шт.

25-107

NUT,7/16"-14, G5

- 7/16" N.C. hex (B109)

14шт.

25-107

NUT,7/16"-14, G5

- 7/16" N.C. hex (B129)

16шт.

7

T33463

BLADE - scraper (B109) (YR. - 66-)

28шт.

7

T33463

BLADE - scraper (B129) (YR. - 66-)

32шт.

8

215GD

SPRING - scraper (B109) (YR. - 66-)

28шт.

8

215GD

SPRING - scraper (B129) (YR. - 66-)

32шт.

9

B18213

PIN - scraper (B109) (YR. - 66--)

28шт.

9

B18213

PIN - scraper (B129) (YR. - 66--)

32шт.

132-48

COTTER PIN,1/8" x 1"

Pin, Split (Cotter), (B109) 1/8" x 1"

28шт.

132-48

COTTER PIN,1/8" x 1"

Pin, Split (Cotter), (B129) 1/8" x 1"

32шт.

10

T20464

SCRAPER

- R.H. front and L.H. rear (B109) (YR. - 66-)

14шт.

10

T20464

SCRAPER

- R.H. front and L.H. rear (B129) (YR. - 66-)

16шт.

11-728

BOLT (MACHINE),Short NK, 7/16"-14 x 1 3/4", G2

BOLT - 7/16" x 1-3/4" cge (B109)

14шт.

11-728

BOLT (MACHINE),Short NK, 7/16"-14 x 1 3/4", G2

BOLT - 7/16" x 1-3/4" cge (B129)

16шт.

95-7

WASHER,7/16"

- 1-1/4" x 1/2" x 14 ga (B109)

14шт.

95-7

WASHER,7/16"

- 1-1/4" x 1/2" x 14 ga (B129)

16шт.

92-7

LOCK WASHER,7/16"

(B109) 7/16"

14шт.

92-7

LOCK WASHER,7/16"

(B129) 7/16"

16шт.

25-107

NUT,7/16"-14, G5

- 7/16" N.C. hex (B109)

14шт.

25-107

NUT,7/16"-14, G5

- 7/16" N.C. hex (B129)

16шт.

11

T33407

BAR - scraper, front and rear (B109) (YR. - 66-)

4шт.

12

T33408

BAR - scraper, rear (Use T33407) (B109) (YR. - 66-69)

2шт.

13

T33419

BAR - scraper, front and rear (B129) (YR. - 66-)

4шт.
