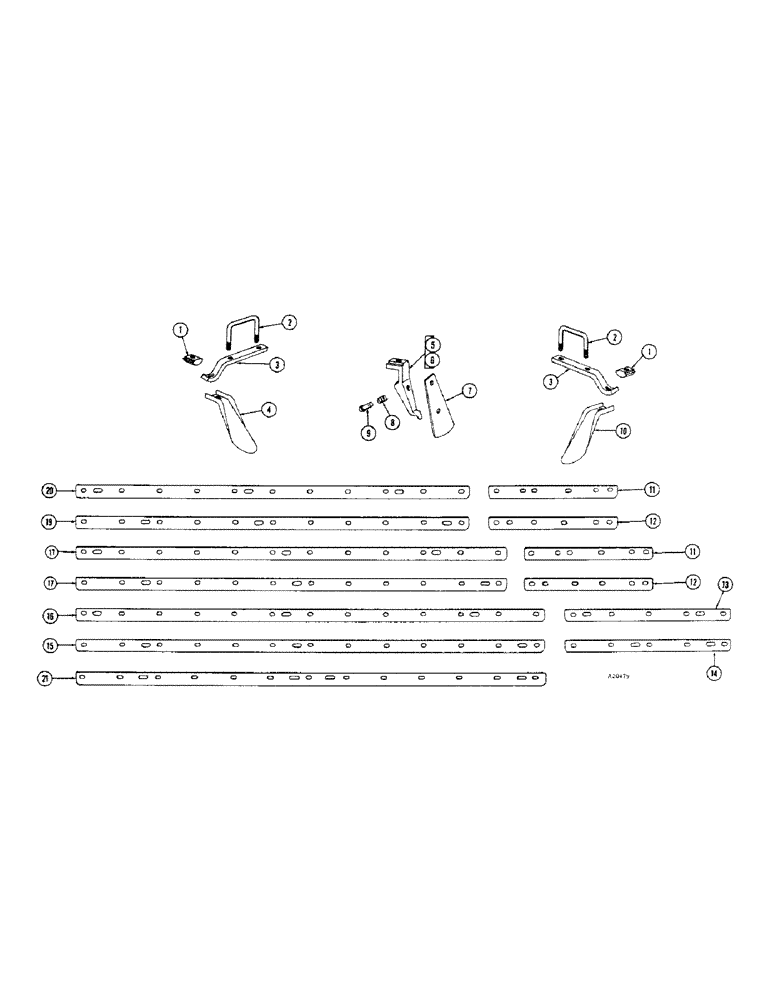

Запчасти Case IH B-SERIES (64) - WING DISK SCRAPERS, FRONT AND REAR, 7-1/4 INCH SPACING, WB177, WB197, WB217

1

H1130

PAD

- scraper bar (YR. - 66-)

20шт.

2

T33321

"U" BOLT - pivot bracket (YR. - 66-)

20шт.

92-8

LOCK WASHER,1/2"

40шт.

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex

40шт.

3

T33323

BRACKET - scraper bar (YR. - 66-)

20шт.

11-844

BOLT

- 1/2" x 2-3/4" cge

20шт.

95-8

WASHER,1/2"

(1-3/8" x 9/16" x 12 ga) 1/2"

20шт.

92-8

LOCK WASHER,1/2"

20шт.

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex

20шт.

4

T20465

SCRAPER

- R.H. rear & L.H. front (WB177) (YR. - 66-)

30шт.

4

T20465

SCRAPER

- R.H. rear & L.H. front (WB197) (YR. - 66-)

32шт.

4

T20465

SCRAPER

- R.H. rear & L.H. front (WB217) (YR. - 66-)

36шт.

11-728

BOLT (MACHINE),Short NK, 7/16"-14 x 1 3/4", G2

BOLT - 7/16" x 1-3/4" cge (WB177)

30шт.

11-728

BOLT (MACHINE),Short NK, 7/16"-14 x 1 3/4", G2

BOLT - 7/16" x 1-3/4" cge (WB197)

32шт.

11-728

BOLT (MACHINE),Short NK, 7/16"-14 x 1 3/4", G2

BOLT - 7/16" x 1-3/4" cge (WB217)

36шт.

92-7

LOCK WASHER,7/16"

(WB177) 7/16"

30шт.

92-7

LOCK WASHER,7/16"

(WB197) 7/16"

32шт.

92-7

LOCK WASHER,7/16"

(WB217) 7/16"

36шт.

25-107

NUT,7/16"-14, G5

- 7/16" N.C. hex (WB177)

30шт.

25-107

NUT,7/16"-14, G5

- 7/16" N.C. hex (WB197)

32шт.

25-107

NUT,7/16"-14, G5

- 7/16" N.C. hex (WB217)

36шт.

5

T2032

BRACKET - scraper, R.H. rear and L.H. front (WB177) (YR. - 66-)

30шт.

5

T2032

BRACKET - scraper, R.H. rear and L.H. front (WB197) (YR. - 66-)

32шт.

5

T2032

BRACKET - scraper, R.H. rear and L.H. front (WB217) (YR. - 66-)

36шт.

11-732

BOLT

- 7/16" x 2" cge (WB177)

30шт.

11-732

BOLT

- 7/16" x 2" cge (WB197)

32шт.

11-732

BOLT

- 7/16" x 2" cge (WB217)

36шт.

95-7

WASHER,7/16"

- 1-1/4" x 1/2" x 14 ga (WB177)

30шт.

95-7

WASHER,7/16"

- 1-1/4" x 1/2" x 14 ga (WB197)

32шт.

95-7

WASHER,7/16"

- 1-1/4" x 1/2" x 14 ga (WB217)

36шт.

92-7

LOCK WASHER,7/16"

(WB177) 7/16"

30шт.

92-7

LOCK WASHER,7/16"

(WB197) 7/16"

32шт.

92-7

LOCK WASHER,7/16"

(WB217) 7/16"

36шт.

25-107

NUT,7/16"-14, G5

- 7/16" N.C. hex (WB177)

30шт.

25-107

NUT,7/16"-14, G5

- 7/16" N.C. hex (WB197)

32шт.

25-107

NUT,7/16"-14, G5

- 7/16" N.C. hex (WB217)

36шт.

6

T2033

BRACKET - scraper, R.H. front and L.H. rear (WB177) (YR. - 66-)

30шт.

6

T2033

BRACKET - scraper, R.H. front and L.H. rear (WB197) (YR. - 66-)

32шт.

6

T2033

BRACKET - scraper, R.H. front and L.H. rear (WB217) (YR. - 66-)

36шт.

11-732

BOLT

- 7/16" x 2" cge (WB177)

30шт.

11-732

BOLT

- 7/16" x 2" cge (WB197)

32шт.

11-732

BOLT

- 7/16" x 2" cge (WB217)

36шт.

95-7

WASHER,7/16"

- 1-1/4" x 1/2" x 14 ga (WB177)

30шт.

95-7

WASHER,7/16"

- 1-1/4" x 1/2" x 14 ga (WB197)

32шт.

95-7

WASHER,7/16"

- 1-1/4" x 1/2" x 14 ga (WB217)

36шт.

92-7

LOCK WASHER,7/16"

(WB177) 7/16"

30шт.

92-7

LOCK WASHER,7/16"

(WB197) 7/16"

32шт.

92-7

LOCK WASHER,7/16"

(WB217) 7/16"

36шт.

25-107

NUT,7/16"-14, G5

- 7/16" N.C. hex (WB177)

30шт.

25-107

NUT,7/16"-14, G5

- 7/16" N.C. hex (WB197)

32шт.

25-107

NUT,7/16"-14, G5

- 7/16" N.C. hex (WB217)

36шт.

7

T33463

BLADE - scraper (WB177) (YR. - 66-)

60шт.

7

T33463

BLADE - scraper (WB197) (YR. - 66-)

64шт.

7

T33463

BLADE - scraper (WB217) (YR. - 66-)

72шт.

8

215GD

SPRING - scraper (WB177) (YR. - 66-)

60шт.

8

215GD

SPRING - scraper (WB197) (YR. - 66-)

64шт.

8

215GD

SPRING - scraper (WB217) (YR. - 66-)

72шт.

9

B18213

PIN - scraper (WB177) (YR. - 66-)

60шт.

9

B18213

PIN - scraper (WB197) (YR. - 66-)

64шт.

9

B18213

PIN - scraper (WB217) (YR. - 66-)

72шт.

132-48

COTTER PIN,1/8" x 1"

Pin, Split (Cotter), (WB177) 1/8" x 1"

60шт.

132-48

COTTER PIN,1/8" x 1"

Pin, Split (Cotter), (WB197) 1/8" x 1"

64шт.

132-48

COTTER PIN,1/8" x 1"

Pin, Split (Cotter), (WB217) 1/8" x 1"

72шт.

10

T20464

SCRAPER

- R.H. front & L.H. rear (WB177) (YR. - 66-)

30шт.

10

T20464

SCRAPER

- R.H. front & L.H. rear (WB197) (YR. - 66-)

32шт.

10

T20464

SCRAPER

- R.H. front & L.H. rear (WB217) (YR. - 66-)

36шт.

11-728

BOLT (MACHINE),Short NK, 7/16"-14 x 1 3/4", G2

BOLT - 7/16" x 1-3/4" cge (WB177)

30шт.

11-728

BOLT (MACHINE),Short NK, 7/16"-14 x 1 3/4", G2

BOLT - 7/16" x 1-3/4" cge (WB197)

32шт.

11-728

BOLT (MACHINE),Short NK, 7/16"-14 x 1 3/4", G2

BOLT - 7/16" x 1-3/4" cge (WB217)

36шт.

95-7

WASHER,7/16"

- 1-1/4" x 1/2" x 14 ga (WB177)

30шт.

95-7

WASHER,7/16"

- 1-1/4" x 1/2" x 14 ga (WB197)

32шт.

95-7

WASHER,7/16"

- 1-1/4" x 1/2" x 14 ga (WB217)

36шт.

92-7

LOCK WASHER,7/16"

(WB177) 7/16"

30шт.

92-7

LOCK WASHER,7/16"

(WB197) 7/16"

32шт.

92-7

LOCK WASHER,7/16"

(WB217) 7/16"

36шт.

25-107

NUT,7/16"-14, G5

- 7/16" N.C. hex (WB177)

30шт.

25-107

NUT,7/16"-14, G5

- 7/16" N.C. hex (WB197)

32шт.

25-107

NUT,7/16"-14, G5

- 7/16" N.C. hex (WB217)

36шт.

11

T33432

BAR - scraper, front wing (Use T33433) (WB177, WB197) (YR. - 66-69)

2шт.

12

T33433

BAR - scraper, front and rear wing (WB177, WB197) (YR. - 69-)

4шт.

13

T33356

BAR - scraper, front wing (WB217) (YR. - 66-69)

2шт.

14

T33360

BAR - scraper, front and rear wing (WB217) (YR. - 69-)

4шт.

15

T33412

BAR - scraper, rear (Use T38103) (WB217) (YR. - 66-69)

2шт.

16

T33397

BAR - scraper, front (Use T38103) (WB217) (YR. - 66-69)

2шт.

17

T33317

BAR - scraper, front and rear (WB197) (YR. - 66-)

4шт.

19

T33372

BAR - scraper, rear (Use T33370) (WB177) (YR. - 66-69)

2шт.

20

T33370

BAR - scraper, front and rear (WB177) (YR. - 69-)

4шт.

21

T38103

BAR - scraper, front and rear (WB217) (YR. - 69-)

4шт.
