Запчасти Case IH B-SERIES (60) - DISK SCRAPERS, FRONT AND REAR, 7-1/4 INCH SPACING, B97, B117, B127

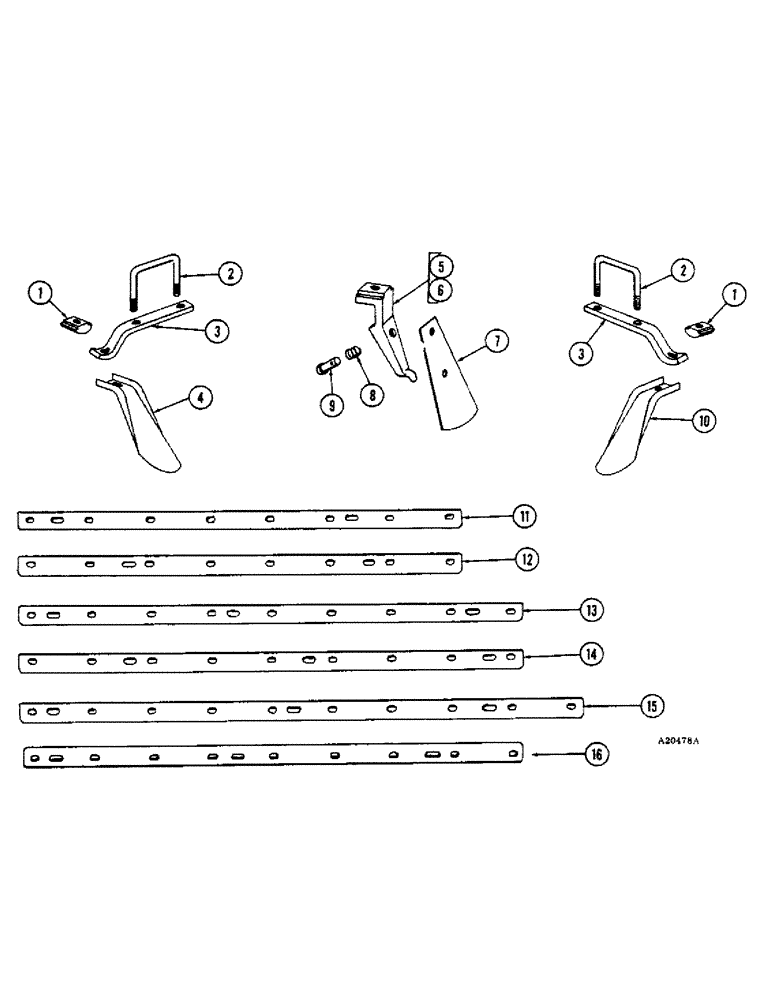

Схема запчастей Case IH B-SERIES - (60) - DISK SCRAPERS, FRONT AND REAR, 7-1/4 INCH SPACING, B97, B117, B127

Артикул

Название

Примечание

Количество

1

H1130

PAD

- scraper bar (B97) (YR. - 66-)

8шт.

1

H1130

PAD

- scraper bar (B117, B127) (YR. - 66-)

12шт.

2

T33321

"U" BOLT - pivot bracket (B97) (YR. - 66-)

8шт.

2

T33321

"U" BOLT - pivot bracket (B117, B127) (YR. - 66-)

12шт.

92-8

LOCK WASHER,1/2"

(B97) 1/2"

16шт.

92-8

LOCK WASHER,1/2"

(B117, B127) 1/2"

24шт.

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex (B97)

16шт.

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex (B117, B127)

24шт.

3

T33323

BRACKET - scraper bar (B97) (YR. - 66-)

8шт.

3

T33323

BRACKET - scraper bar (B117, B127) (YR. - 66-)

12шт.

11-844

BOLT

- 1/2" x 2-3/4" cge (B97)

8шт.

11-844

BOLT

- 1/2" x 2-3/4" cge (B117, B127)

12шт.

95-8

WASHER,1/2"

(1-3/8" x 9/16" x 12 ga.) (B97) 1/2"

8шт.

95-8

WASHER,1/2"

(1-3/8" x 9/16" x 12 ga.) (B117, B127) 1/2"

12шт.

92-8

LOCK WASHER,1/2"

(B97) 1/2"

8шт.

92-8

LOCK WASHER,1/2"

(B117, B127) 1/2"

12шт.

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex (B97)

8шт.

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex (B117, B127)

12шт.

4

T20465

SCRAPER

- R.H. rear & L.H. front (B97) (YR. - 66-)

16шт.

4

T20465

SCRAPER

- R.H. rear & L.H. front (B117) (YR. - 66-)

18шт.

4

T20465

SCRAPER

- R.H. rear & L.H. front (B127) (YR. - 66-)

20шт.

11-728

BOLT (MACHINE),Short NK, 7/16"-14 x 1 3/4", G2

BOLT - 7/16" x 1-3/4" cge (B97)

16шт.

11-728

BOLT (MACHINE),Short NK, 7/16"-14 x 1 3/4", G2

BOLT - 7/16" x 1-3/4" cge (B117)

18шт.

11-728

BOLT (MACHINE),Short NK, 7/16"-14 x 1 3/4", G2

BOLT - 7/16" x 1-3/4" cge (B127)

20шт.

95-7

WASHER,7/16"

- 1-1/4" x 1/2" x 14 ga (B97)

16шт.

95-7

WASHER,7/16"

- 1-1/4" x 1/2" x 14 ga (B117)

18шт.

95-7

WASHER,7/16"

- 1-1/4" x 1/2" x 14 ga (B127)

20шт.

92-7

LOCK WASHER,7/16"

(B97) 7/16"

16шт.

92-7

LOCK WASHER,7/16"

(B117) 7/16"

18шт.

92-7

LOCK WASHER,7/16"

(B127) 7/16"

20шт.

25-107

NUT,7/16"-14, G5

- 7/16" N.C. hex (B97)

16шт.

25-107

NUT,7/16"-14, G5

- 7/16" N.C. hex (B117)

18шт.

25-107

NUT,7/16"-14, G5

- 7/16" N.C. hex (B127)

20шт.

5

T2032

BRACKET - scraper, R.H. rear and L.H. front (B97) (YR. - 66-)

16шт.

5

T2032

BRACKET - scraper, R.H. rear and L.H. front (B117) (YR. - 66-)

18шт.

5

T2032

BRACKET - scraper, R.H. rear and L.H. front (B127) (YR. - 66-)

20шт.

11-732

BOLT

- 7/16" x 2" cge (B97)

16шт.

11-732

BOLT

- 7/16" x 2" cge (B117)

18шт.

11-732

BOLT

- 7/16" x 2" cge (B127)

20шт.

95-7

WASHER,7/16"

- 1-1/4" x 1/2" x 14 ga (B97)

16шт.

95-7

WASHER,7/16"

- 1-1/4" x 1/2" x 14 ga (B117)

18шт.

95-7

WASHER,7/16"

- 1-1/4" x 1/2" x 14 ga (B127)

20шт.

92-7

LOCK WASHER,7/16"

(B97) 7/16"

16шт.

92-7

LOCK WASHER,7/16"

(B117) 7/16"

18шт.

92-7

LOCK WASHER,7/16"

(B127) 7/16"

20шт.

25-107

NUT,7/16"-14, G5

- 7/16" N.C. hex (B97)

16шт.

25-107

NUT,7/16"-14, G5

- 7/16" N.C. hex (B117)

18шт.

25-107

NUT,7/16"-14, G5

- 7/16" N.C. hex (B127)

20шт.

6

T2033

BRACKET - scraper, R.H. front and L.H. rear (B97) (YR. - 66-)

16шт.

6

T2033

BRACKET - scraper, R.H. front and L.H. rear (B117) (YR. - 66-)

18шт.

6

T2033

BRACKET - scraper, R.H. front and L.H. rear (B127) (YR. - 66-)

20шт.

11-732

BOLT

- 7/16" x 2" cge (B97)

16шт.

11-732

BOLT

- 7/16" x 2" cge (B117)

18шт.

11-732

BOLT

- 7/16" x 2" cge (B127)

20шт.

95-7

WASHER,7/16"

- 1-1/4" x 1/2" x 14 ga (B97)

16шт.

95-7

WASHER,7/16"

- 1-1/4" x 1/2" x 14 ga (B117)

18шт.

95-7

WASHER,7/16"

- 1-1/4" x 1/2" x 14 ga (B127)

20шт.

92-7

LOCK WASHER,7/16"

(B97) 7/16"

16шт.

92-7

LOCK WASHER,7/16"

(B117) 7/16"

18шт.

92-7

LOCK WASHER,7/16"

(B127) 7/16"

20шт.

25-107

NUT,7/16"-14, G5

- 7/16" N.C. hex (B97)

16шт.

25-107

NUT,7/16"-14, G5

- 7/16" N.C. hex (B117)

18шт.

25-107

NUT,7/16"-14, G5

- 7/16" N.C. hex (B127)

20шт.

7

T33463

BLADE - scraper (B97) (YR. - 66-)

32шт.

7

T33463

BLADE - scraper (B117) (YR. - 66-)

36шт.

7

T33463

BLADE - scraper (B127) (YR. - 66-)

40шт.

8

215GD

SPRING - scraper (B97) (YR. - 66-)

32шт.

8

215GD

SPRING - scraper (B117) (YR. - 66-)

36шт.

8

215GD

SPRING - scraper (B127) (YR. - 66-)

40шт.

9

B18213

PIN - scraper (B97) (YR. - 66-)

32шт.

9

B18213

PIN - scraper (B117) (YR. - 66-)

36шт.

9

B18213

PIN - scraper (B127) (YR. - 66-)

40шт.

132-48

COTTER PIN,1/8" x 1"

Pin, Split (Cotter), (B97) 1/8" x 1"

32шт.

132-48

COTTER PIN,1/8" x 1"

Pin, Split (Cotter), (B117) 1/8" x 1"

36шт.

132-48

COTTER PIN,1/8" x 1"

Pin, Split (Cotter), (B127) 1/8" x 1"

40шт.

10

T20464

SCRAPER

- R.H. front & L.H. rear (B97) (YR. - 66-)

16шт.

10

T20464

SCRAPER

- R.H. front & L.H. rear (B117) (YR. - 66-)

18шт.

10

T20464

SCRAPER

- R.H. front & L.H. rear (B127) (YR. - 66-)

20шт.

11-728

BOLT (MACHINE),Short NK, 7/16"-14 x 1 3/4", G2

BOLT - 7/16" x 1-3/4" cge (B97)

16шт.

11-728

BOLT (MACHINE),Short NK, 7/16"-14 x 1 3/4", G2

BOLT - 7/16" x 1-3/4" cge (B117)

18шт.

11-728

BOLT (MACHINE),Short NK, 7/16"-14 x 1 3/4", G2

BOLT - 7/16" x 1-3/4" cge (B127)

20шт.

95-7

WASHER,7/16"

- 1-1/4" x 1/2" x 14 ga (B97)

16шт.

95-7

WASHER,7/16"

- 1-1/4" x 1/2" x 14 ga (B117)

18шт.

95-7

WASHER,7/16"

- 1-1/4" x 1/2" x 14 ga (B127)

20шт.

92-7

LOCK WASHER,7/16"

(B97) 7/16"

16шт.

92-7

LOCK WASHER,7/16"

(B117) 7/16"

18шт.

92-7

LOCK WASHER,7/16"

(B127) 7/16"

20шт.

25-107

NUT,7/16"-14, G5

- 7/16" N.C. hex (B97)

16шт.

25-107

NUT,7/16"-14, G5

- 7/16" N.C. hex (B117)

18шт.

25-107

NUT,7/16"-14, G5

- 7/16" N.C. hex (B127)

20шт.

11

T33451

BAR - front scraper (B97) (YR. - 66-69)

2шт.

12

T33452

BAR - rear scraper (B97) (YR. - 69-)

4шт.

13

T33404

BAR - front scraper (B117) (YR. - 66-69)

2шт.

14

T33405

BAR - rear scraper (B117) (YR. - 66-69)

2шт.

15

T33375

BAR - front and rear scraper (B127) (YR. - 66-)

4шт.

16

T38104

BAR - front and rear scraper (B117) (YR. - 69-)

4шт.

Выбрано товаров: 96
