Запчасти Case IH B-SERIES (04) - HITCH

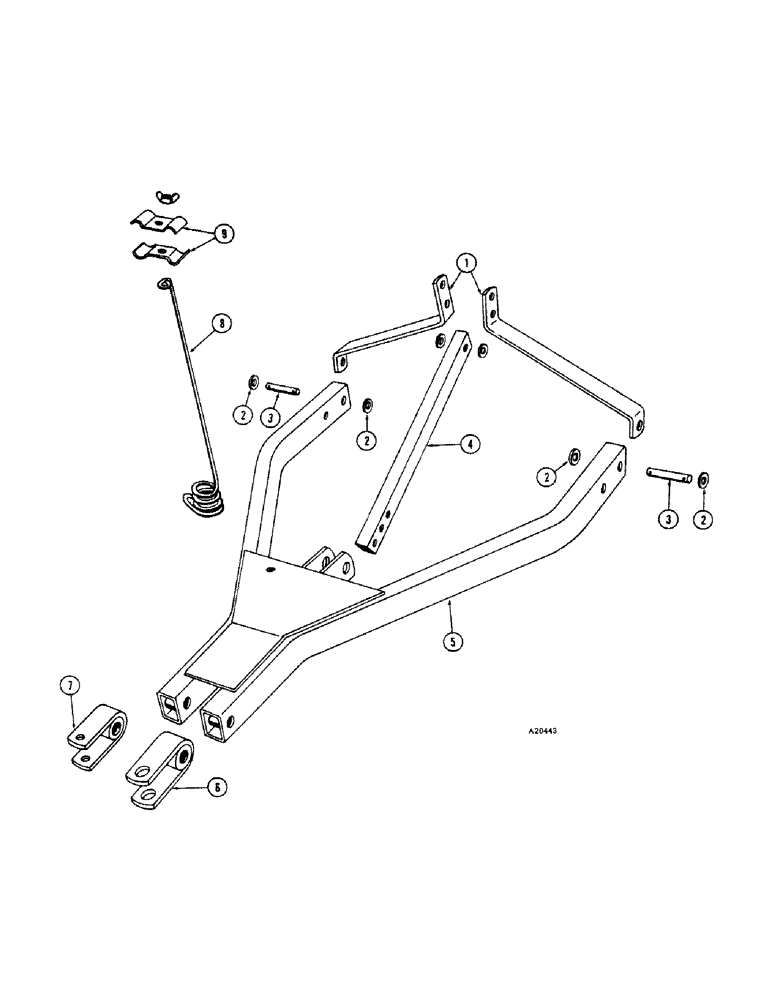

Схема запчастей Case IH B-SERIES - (04) - HITCH

Артикул

Название

Примечание

Количество

1

T33260

ARM - hitch mast (YR. - 66-)

2шт.

13-1052

BOLT,Hex, 5/8" - 11 x 3-1/4", Gr 5

2шт.

131-14

LOCK NUT,5/8"-11, GC

NUT, LOCK, 5/8"-11, GC

2шт.

2

195-2082

WASHER (YR. - 66-)

4шт.

3

T33413

PIN - hitch to frame (YR. - 66-)

2шт.

132-94

PIN

- cotter, 3/16" x 1-3/8"

4шт.

4

T33261

BRACE - hitch mast (YR. - 66-)

1шт.

95-10

WASHER,5/8"

- 1-3/4" x 11/16" x #10 ga

2шт.

131-14

LOCK NUT,5/8"-11, GC

NUT, LOCK, 5/8"-11, GC

1шт.

13-1056

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5

- 5/8" x 3-1/2" N.C. hex

2шт.

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

25-1010

NUT,5/8"-11, G5

1шт.

5

T33390

WASHER

HITCH (YR. - 1966)

1шт.

5

T37202

HITCH (YR. - 67-)

1шт.

6

T33414

CLEVIS - hitch (Use T37570) (YR. - 1966)

1шт.

6

T37570

CLEVIS - hitch (Wing Model only) (YR. - 67-)

1шт.

13-12120

BOLT,Hex, 3/4" - 10 x 7-1/2", Gr 5

- 3/4" x 7-1/2" N.C. hex

1шт.

230-41112

LOCK NUT,3/4"-10, GA

LOCKNUT - 3/4", Gripco toploc

1шт.

7

T33259

CLEVIS - hitch (Use T37569) (YR. - 1966)

1шт.

7

T37569

CLEVIS - hitch (All models except wing) (YR. - 67-)

1шт.

13-12120

BOLT,Hex, 3/4" - 10 x 7-1/2", Gr 5

- 3/4" x 7-1/2" N.C. hex

1шт.

230-41112

LOCK NUT,3/4"-10, GA

LOCKNUT - 3/4", Gripco toploc

1шт.

8

H4730S

SUPPORT

- hydraulic hose (YR. - 66-)

1шт.

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

1шт.

92-8

LOCK WASHER,1/2"

1шт.

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex

1шт.

9

T37564

CLAMP - hose support (YR. - 66-)

2шт.

195-2026

WASHER,.328" x 5/8" x .065"

- 1" x 9/16" x #16 ga

1шт.

11-728

BOLT (MACHINE),Short NK, 7/16"-14 x 1 3/4", G2

BOLT - 7/16" x 1-3/4", cge

1шт.

129-407

NUT, WING

NUT - wing, 7/16"

1шт.

Выбрано товаров: 30
