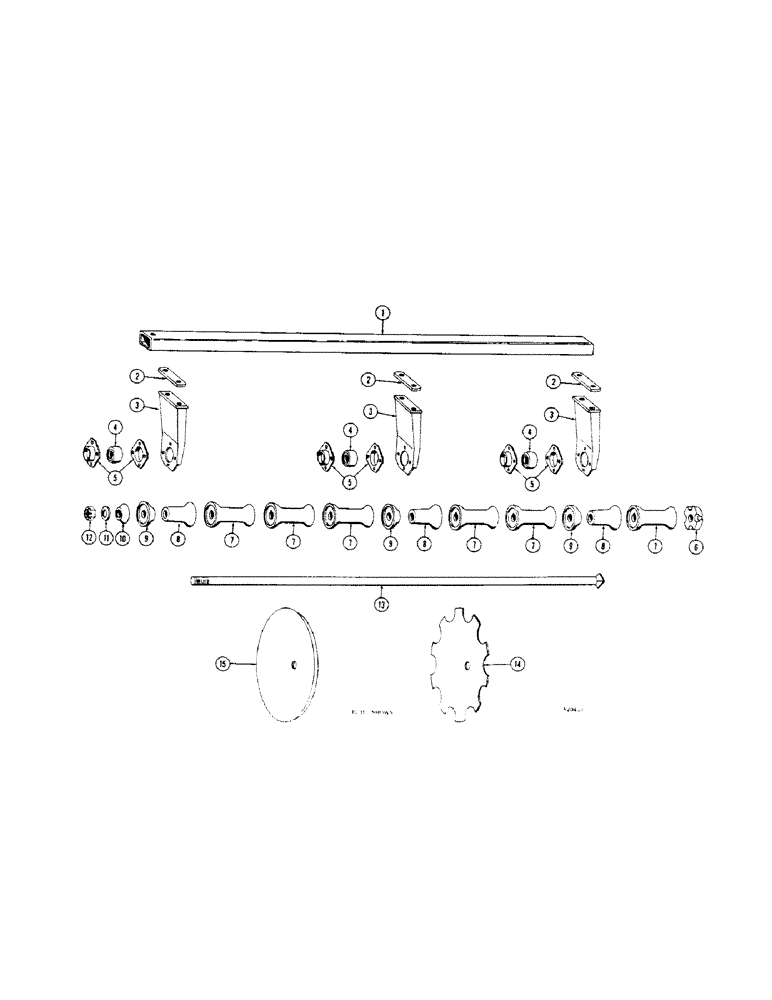

Запчасти Case IH B-SERIES (24[1]) - REAR GANG B127, 7-1/4 INCH SPACING

1

T33376

FRAME - gang (YR. - 66-)

2шт.

2

T33322

PLATE

- standard (YR. - 66-) (Hardware same as ref. 2 above)

6шт.

3

T33383

SUPPORT ASSY.

STANDARD (YR. - 66-)

6шт.

4

T34178

BALL BEARING,38.61mm ID x 85.72mm OD x 30.18mm W

BEARING (YR. - 66-)

6шт.

5

T29920

FLANGE

- bearing (YR. - 66-) (Hardware same as ref. 5 above)

12шт.

6

T1895

BUMPER

(YR. - 66-)

2шт.

7

T2029

SPOOL

(YR. - 66-)

12шт.

8

T2036

SPOOL

- bearing, long (YR. - 66-)

6шт.

9

T2041

SPOOL

- bearing, short (YR. - 66-)

6шт.

10

T2046

WASHER

(YR. - 66-)

2шт.

11

O2827HT

WASHER

(YR. - 66-)

1шт.

12

25-1224

SLOTTED NUT,1 1/2"-6, G5

NUT - 1-1/2" slotted (YR. - 66-)

2шт.

13

T62449

BOLT

- gang (Includes nut, ref. no. 12) (YR. - 66-)

2шт.

132-159

COTTER PIN,1/4" x 3"

Pin, Split (Cotter), 1/4" x 3"

2шт.

14

T33324

DISC

DISK - notched, 20" x 9 ga (YR. - 66-)

20шт.

14

T33326

DISC

DISK - notched, 18" x 10 ga (YR. - 66-)

20шт.

14

T38347

DISC

DISK - notched, 20" x 7 ga (YR. - 68-)

20шт.

15

T33250

DISC

DISK - plain, 20" x 8 ga (YR. - 66-)

20шт.

15

T33327

DISC

DISK - plain, 18" x 11 ga (YR. - 66-)

20шт.

15

T33329

DISK - plain, 20" x 10 ga (YR. - 66-)

20шт.

15

T33464

DISC

DISK - plain, 18" x 8 ga (YR. - 66-)

20шт.

15

T29904

DISC

DISK - plain, 18" x 9 ga (YR. - 66-)

20шт.
