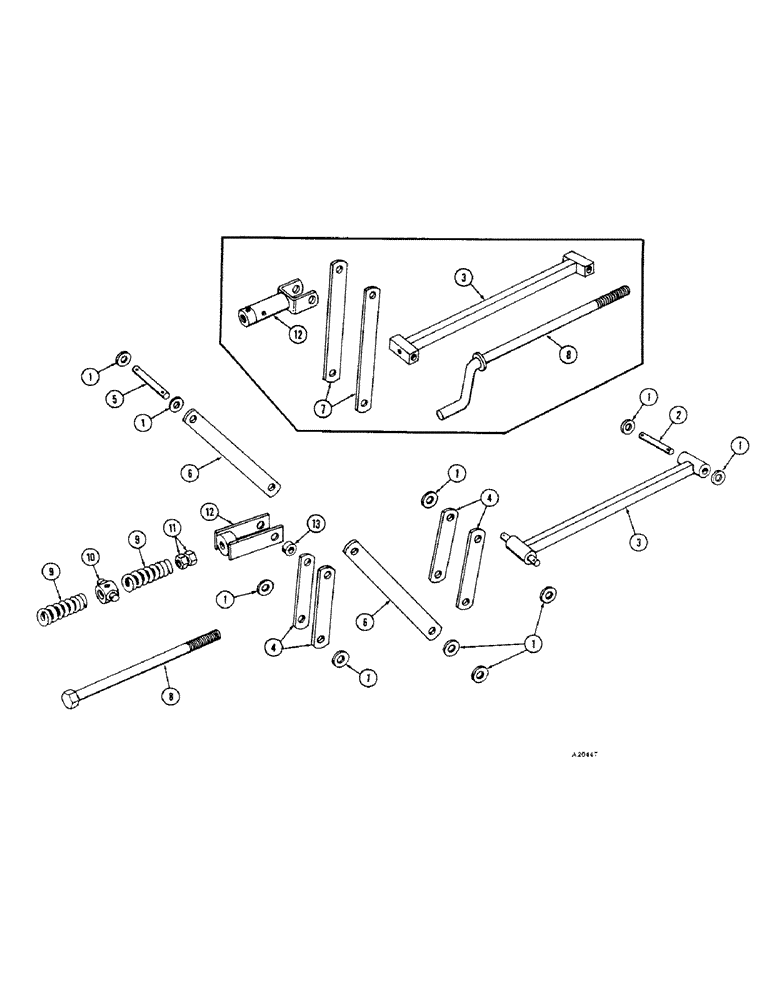

Запчасти Case IH B-SERIES (18) - PARALLEL LINKAGE

1

195-2082

WASHER (YR. - 66-)

10шт.

2

T33313

PIN - axle linkage, 3/4" x 5-5/16" (YR. - 66-)

1шт.

132-51

COTTER PIN,1/8" x 1 3/8"

Pin, Split (Cotter), 1/8" x 1 3/8"

6шт.

3

T33314

ROD - axle linkage (YR. - 66-68)

1шт.

3

T38991

ROD - axle linkage (YR. - 69-)

1шт.

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, 1/8"

2шт.

4

T33310

LINK - frame to bar, 3/8" x 8-1/8" (YR. - 66-)

4шт.

5

T33309

PIN - center parallel link, 3/4" x 6-1/32" (YR. - 66-)

1шт.

132-51

COTTER PIN,1/8" x 1 3/8"

Pin, Split (Cotter), 1/8" x 1 3/8"

4шт.

6

T33312

LINK - hitch clevis to rod, 1-3/4" x 14-3/8" (YR. - 66-)

2шт.

7

T33311

LINK - frame to hitch clevis, 1-3/4" x 12-1/16" (YR. - 66-68)

2шт.

8

T33297

SCREW

CRANK - leveling (YR. - 66-68)

1шт.

8

T38992

BOLT,Hex, 1 1/8" - 7 x 16", Gr 5

- leveling screw (YR. - 69-)

1шт.

9

T37737

SPRING

- compression (Replaces T33417) (YR. - 66-)

2шт.

10

T2031

TRUNNION - screw crank (YR. - 66-)

1шт.

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , taper 1/4"-28 NPT x .54" lg

1шт.

11

25-1418

NUT,Jam, 1 1/8"-7, G5

- 1-1/8" hex jam (YR. - 66-)

2шт.

12

T33288

CLEVIS - leveling link (YR. - 66-68)

1шт.

12

T38987

CLEVIS - leveling link (YR. - 69-)

1шт.

138-135

LOCK PIN,1/4" x 1 1/8", Slotted

PIN, LOCK, 1/4" x 1 1/8", Slotted

1шт.

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, 1/8"

1шт.

13

OA2394L

SPACER - leveling clevis (YR. - 69-)

1шт.
