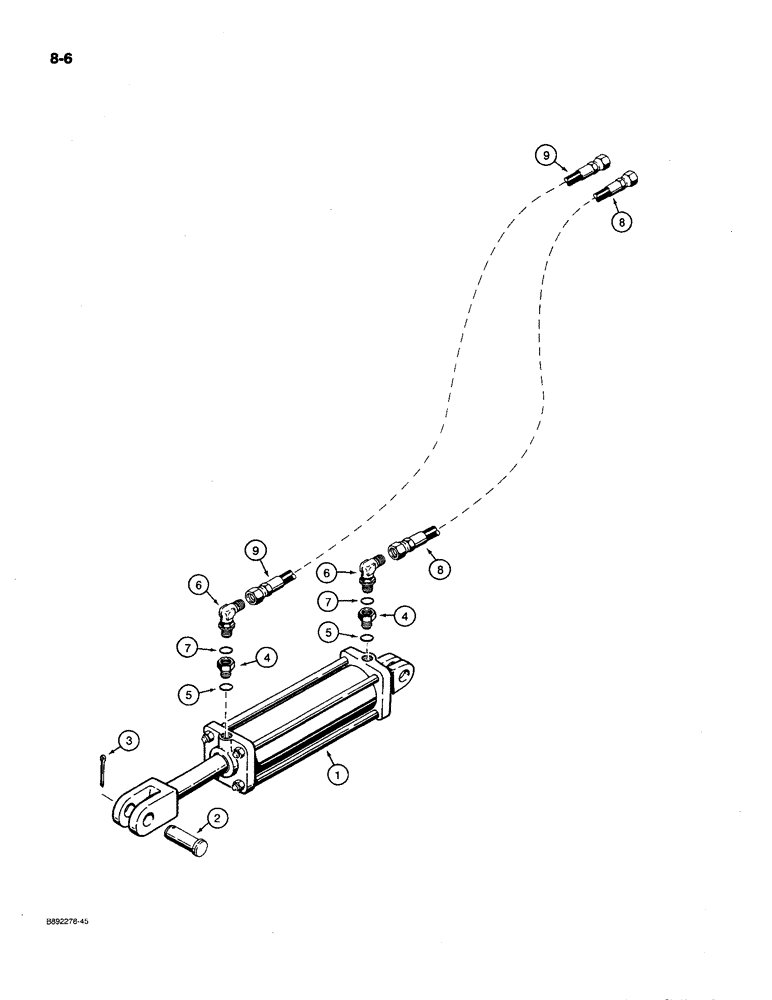

Запчасти Case IH 780 (8-06) - TRANSPORT LIFT HYDRAULIC CIRCUIT, 4" OR 5" ID SINGLE CYLINDER (08) - HYDRAULICS

1/2" ID Supply & Return Hoses, Hoses with Female Ends, Without Diverter Valve

1шт.

1

84995C91

CYLINDER

ASSEMBLY - 4 inch ID x 16 inch stroke, transport lift, no longer available, parts list Figure 8-50, for service order 1272150C91 cylinder assembly, parts list Figure 8-54

1шт.

The cylinder assembly part number is stamped on the cylinder tube.

1шт.

1

145213C92

CYLINDER

ASSEMBLY - 4 inch ID x 16 inch stroke, transport lift, parts list Figure 8-48, no longer available, for service order 1272150C91 cylinder assembly, parts list Figure 8-54

1шт.

The cylinder assembly part number is stamped on the cylinder tube.

1шт.

1

548004R92

CYLINDER

ASSEMBLY - 4 inch ID x 16 inch stroke, transport lift, parts list Figure 8-44, no longer available, for service order 1272150C91 cylinder assembly, parts list Figure 8-54, also order (2) 1252129C1 adapters and (2) 237-6008 O-rings

1шт.

The cylinder assembly part number is stamped on the cylinder tube.

1шт.

1

108681C91

CYLINDER

ASSEMBLY - 4 inch ID x 16 inch stroke, transport lift, parts list Figure 8-46, no longer available, for service order 1272150C91 cylinder assembly, parts list Figure 8-54, also order (2) 1252129C1 adapters and (2) 237-6008 O-rings

1шт.

The cylinder assembly part number is stamped on the cylinder tube.

1шт.

1

145435C91

CYLINDER

ASSEMBLY - 4 inch ID x 16 inch stroke, transport lift, parts list Figure 8-52

1шт.

The cylinder assembly part number is stamped on the cylinder tube.

1шт.

1

1272150C91

CYLINDER

ASSEMBLY - 4 inch ID x 16 inch stroke, transport lift, parts list Figure 8-54, if used

1шт.

The cylinder assembly part number is stamped on the cylinder tube.

1шт.

1

84993C91

CYLINDER ASSY.

CYLINDER ASSEMBLY - 5 inch ID x 16 inch stroke, transport lift, parts list Figure 8-56, no longer available, for service order 1286452C91 cylinder assembly, parts list Figure 8-64

1шт.

The cylinder assembly part number is stamped on the cylinder tube.

1шт.

1

142687C91

CYLINDER

ASSEMBLY - 5 inch ID x 16 inch stroke, transport lift, parts list Figure 8-58, no longer available, for service order 1286452C91 cylinder assembly, parts list Figure 8-64, also order (1) 1252130C1 adapter

1шт.

The cylinder assembly part number is stamped on the cylinder tube.

1шт.

1

1286452C91

CYLINDER ASSY.,Double Acting, 50.8mm Rod, 406.4mm Stroke

CYLINDER ASSEMBLY - 5 inch ID x 16 inch stroke, transport lift, parts list Figure 8-64, if used

1шт.

The cylinder assembly part number is stamped on the cylinder tube.

1шт.

2

28537R1

CLEVIS PIN,1 1/4" x 3 3/4"

PIN - clevis, 1-1/4 x 3-3/4 inch, cylinder mounting

2шт.

3

32-2028

COTTER PIN,5/16" x 1 3/4"

PIN, SPLIT (COTTER), 5/16" x 1 3/4"

2шт.

4

1252130C1

ADAPTER

- straight, 3/4-16 female x 9/16-18 inch male O-ring

2шт.

5

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

2шт.

6

218-5280

ELBOW,90 Degree, 3/4"-16, 37 Degree x 9/16"-18, O-Ring

- 90 degree, adj, 3/4-16 flare x 9/16-18 inch O-ring

2шт.

8

147774C1

FLEXIBLE HOSE

HOSE - 1/2 inch ID x 245 inch long, cylinder closed, Serial Range: end-tractor

1шт.

9

147773C1

FLEXIBLE HOSE

HOSE - 1/2 inch ID x 224 inch long, cylinder rod, Serial Range: end-tractor

1шт.

7

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.
