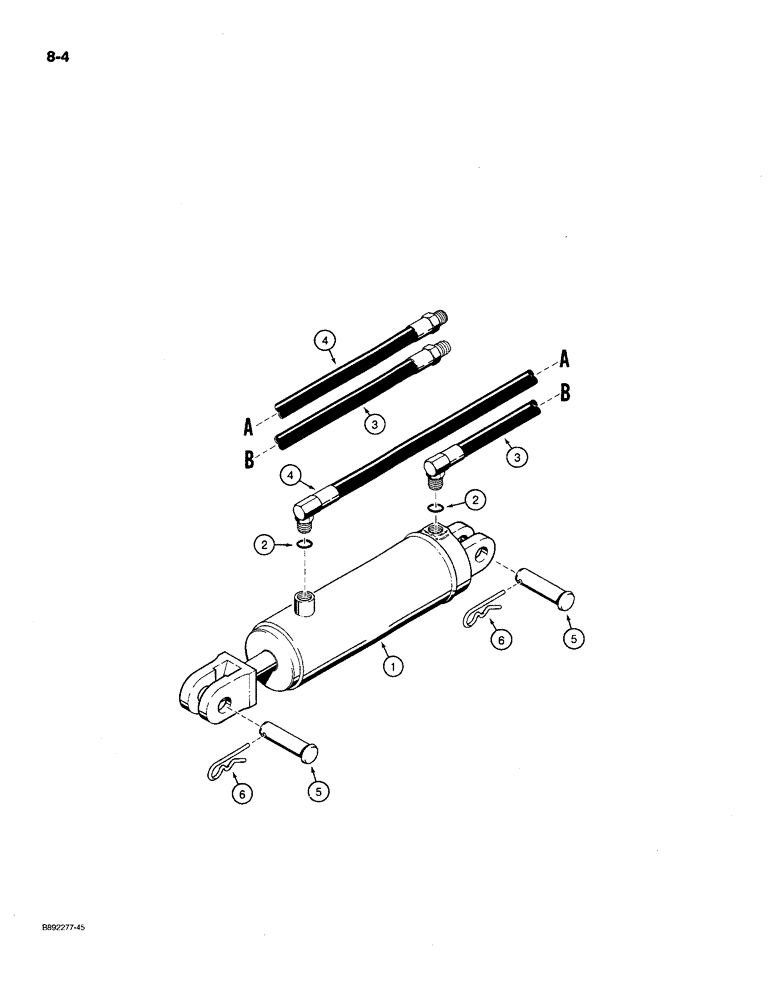

Запчасти Case IH 780 (8-04) - TRANSPORT LIFT HYDRAULIC CIRCUIT, 4 IN. ID CYLINDER (08) - HYDRAULICS

1/2" ID Supply & Return Hoses, Hoses with Male Ends, Without Diverter Valve

1шт.

1

548004R92

CYLINDER

ASSEMBLY- 4 inch ID x 16 inch stroke, transport lift, parts list Figure 8-44, no longer available, for service order 1272150C91 cylinder assembly, parts list Figure 8-54, also order (2) 1252129C1 adapters and (2) 237-6008 O-rings

1шт.

The cylinder assembly part number is stamped on the cylinder tube.

1шт.

1

108681C91

CYLINDER

ASSEMBLY- 4 inch ID x 16 inch stroke, transport lift, parts list Figure 8-46, no longer available, for service order 1272150C91 cylinder assembly, parts list Figure 8-54, also order (2) 1252129C1 adapters and (2) 237-6008 O-rings

1шт.

The cylinder assembly part number is stamped on the cylinder tube.

1шт.

1

145213C92

CYLINDER

ASSEMBLY - 4 inch ID x 16 inch stroke, transport, lift, parts list Figure 8-48, no longer available, for service order 1272150C91 cylinder assembly, parts list Figure 8-54

1шт.

The cylinder assembly part number is stamped on the cylinder tube.

1шт.

1

1272150C91

CYLINDER

ASSEMBLY - 4 inch ID x 16 inch stroke, transport lift, parts list Figure 8-54

1шт.

The cylinder assembly part number is stamped on the cylinder tube.

1шт.

2

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

2шт.

3

100971C1

HYDRAULIC HOSE,0.50" ID x 225.00", SAE 100R1

- Cylinder closed end to tractor 0.50" ID x 225.00", SAE 100R1

1шт.

4

473152R91

HOSE ASSY.

HOSE - 1/2 inch ID x 213 inch long, cylinder rod, Serial Range: end-tractor

1шт.

5

28537R1

CLEVIS PIN,1 1/4" x 3 3/4"

PIN - clevis, 1-1/4 x 3-3/4 inch, cylinder mounting, used with 1272150C91 cylinder assembly, if used

2шт.

6

32-2028

COTTER PIN,5/16" x 1 3/4"

PIN, SPLIT (COTTER), , If used 5/16" x 1 3/4"

2шт.
