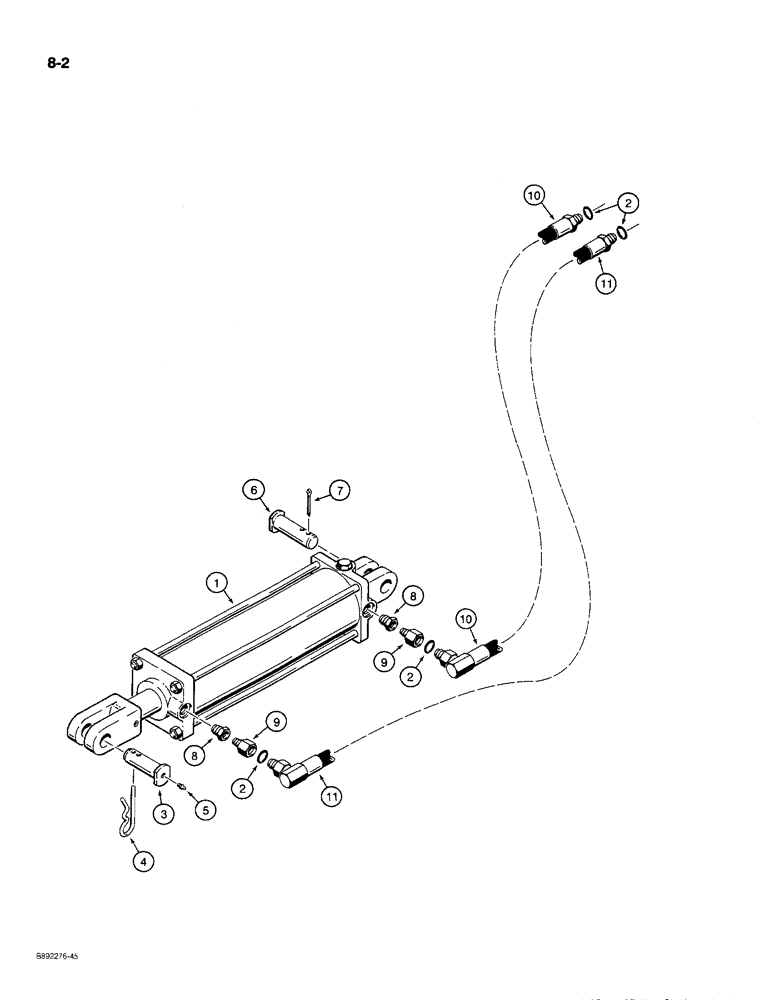

Запчасти Case IH 780 (8-02) - TRANSPORT LIFT HYDRAULIC CIRCUIT, SINGLE TIE-BOLT TYPE CYLINDER (08) - HYDRAULICS

1/2" ID Supply & Return Hoses, Hoses with Male Ends, Without Diverter Valve

1шт.

1

959947R91

CYLINDER,Double Acting, 406.4mm Stroke

ASSEMBLY - 5 inch ID x 16 inch stroke, transport lift, parts list Figure 8-60, if used

1шт.

The cylinder assembly part number is stamped on the cylinder tube.

1шт.

1

145436C92

CYLINDER

ASSEMBLY - 5 inch ID x 16 inch stroke, transport lift, parts list Figure 8-62, if used

1шт.

The cylinder assembly part number is stamped on the cylinder tube.

1шт.

2

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

4шт.

3

951714R1

PIN

- mounting, cylinder, rod end

1шт.

4

517843R1

COTTER PIN

PIN - hair, 3/16 inch

1шт.

5

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight, taper 1/4"-28 NPT x .54" lg

1шт.

6

959945R93

PIN

- mounting, cylinder, closed end

1шт.

7

132-313

COTTER PIN,1/4" x 2"

PIN, Split (Cotter), 1/4" x 2"

1шт.

8

23174R1

BUSHING

REDUCER - 3/4 x 1/2 inch PT, used with 959947R91 cylinder

2шт.

9

461183R1

ADAPTER,1/2" - 14 ORB x 7/8" - 14 ORB

ADAPTER - straight, special

2шт.

10

100971C1

HYDRAULIC HOSE,0.50" ID x 225.00", SAE 100R1

- Cylinder closed end to tractor 0.50" ID x 225.00", SAE 100R1

1шт.

11

473152R91

HOSE ASSY.

HOSE - 1/2 inch ID x 213 inch long, cylinder rod, Serial Range: end-tractor

1шт.
