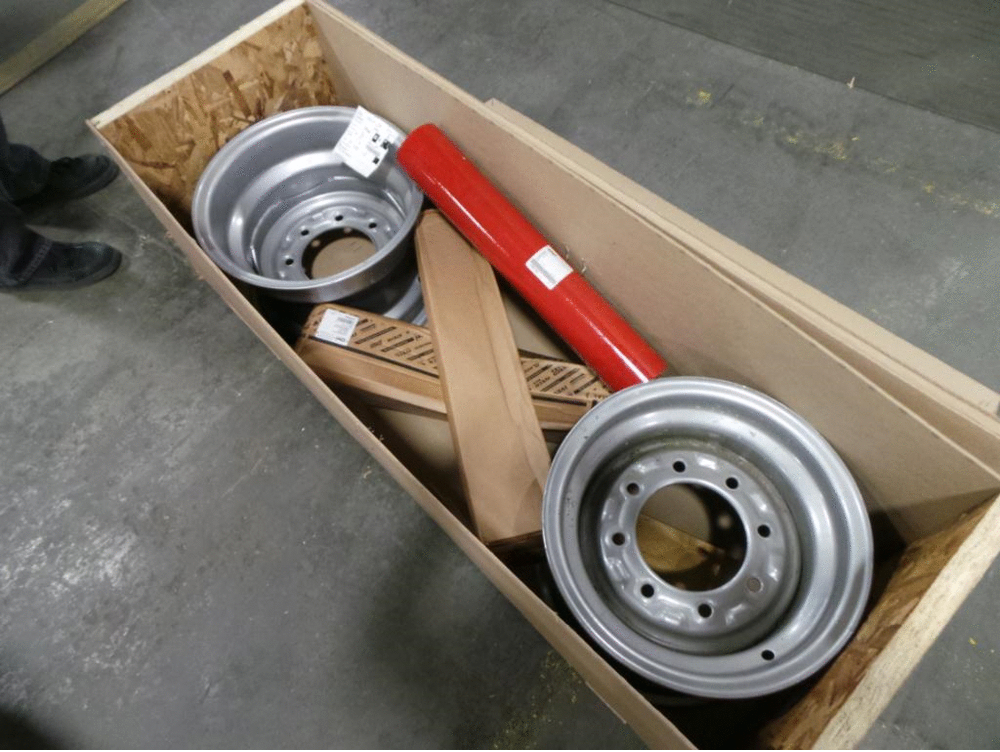

Запчасти Case IH 780 (9-36[01]) - KIT 8 BOLT 2 HUBS TUBE AND 2 WHEELS (09) - CHASSIS/ATTACHMENTS

1

223097A1

AXLE

Incl 2 - 16

1шт.

2

7-64330

INSTRUCTION

1шт.

3

810769C1

VALVE

2шт.

4

534362R1

WHEEL

2шт.

5

6395

LOCK NUT,5/8"-11, GB

2шт.

6

88729

BOLT,Hex, 5/8" - 11 x 5", Gr 5

2шт.

7

199011A2

TUBE

1шт.

8

560950R1

HUB CAP

2шт.

9

87400

COTTER PIN,3/16" x 2"

2шт.

10

86632593

WASHER,1.19" ID x 2.25" OD x 0.13" Thk

2шт.

11

86632555

SLOTTED NUT,1 1/8"-12, G5

2шт.

12

87454025

STUB AXLE/STEERING S

2шт.

13

169329C91

OIL SEAL,63.3mm ID x 95.81mm OD x 8mm Thk

2шт.

14

86512015

TAPERED BEARING,41.27mm ID x 73.46mm OD x 19.63mm W

2шт.

15

648861

BEARING ASSY,53.98mm ID x 123.83mm OD x 36.51mm W

2шт.

16

87407202

HUB

2шт.
