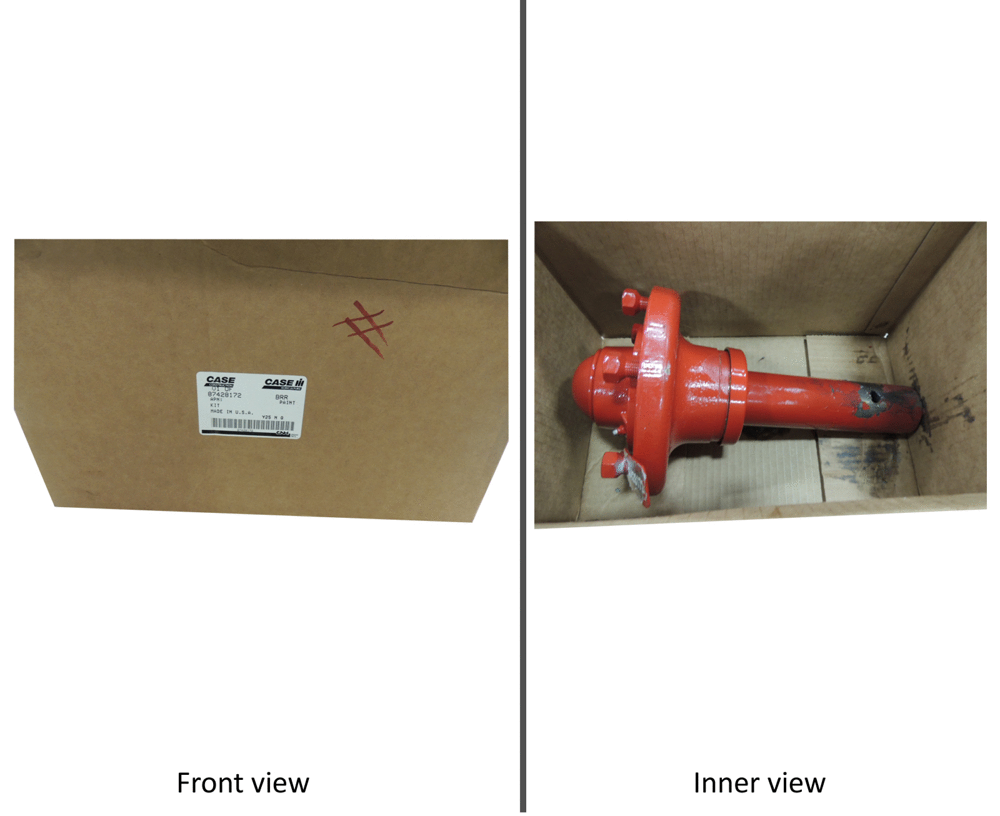

Запчасти Case IH 780 (9-34) - KIT WHEEL HUB AND SPINDLE ASSY (09) - CHASSIS/ATTACHMENTS

1

87428172

KIT

Incl 2 - 14

1шт.

2

87428180

SPECIAL MAT. SEAL

1шт.

3

87428178

SLEEVE

RING RETAINER

1шт.

4

87428177

SLEEVE

RING COUNTERFACE WEAR

1шт.

5

70120D

SLOTTED NUT,7/8"-14

1шт.

6

86512015

TAPERED BEARING,41.27mm ID x 73.46mm OD x 19.63mm W

1шт.

7

84356153

BEARING ASSY

1шт.

84356153GV

BEARING

1шт.

8

606468R2

HUB

1шт.

9

469873R1

WASHER,23.01mm ID x 44.45mm OD x 3.05mm Thk

1шт.

10

86523955

COTTER PIN,1/8" x 2"

1шт.

11

198056

WHEEL BOLT,1/2" - 20 x 1.031"

6шт.

12

249128

HUB CAP

1шт.

13

87414

LUBE NIPPLE,1/4" - 28

1шт.

14

1337412C1

SPINDLE

1шт.
