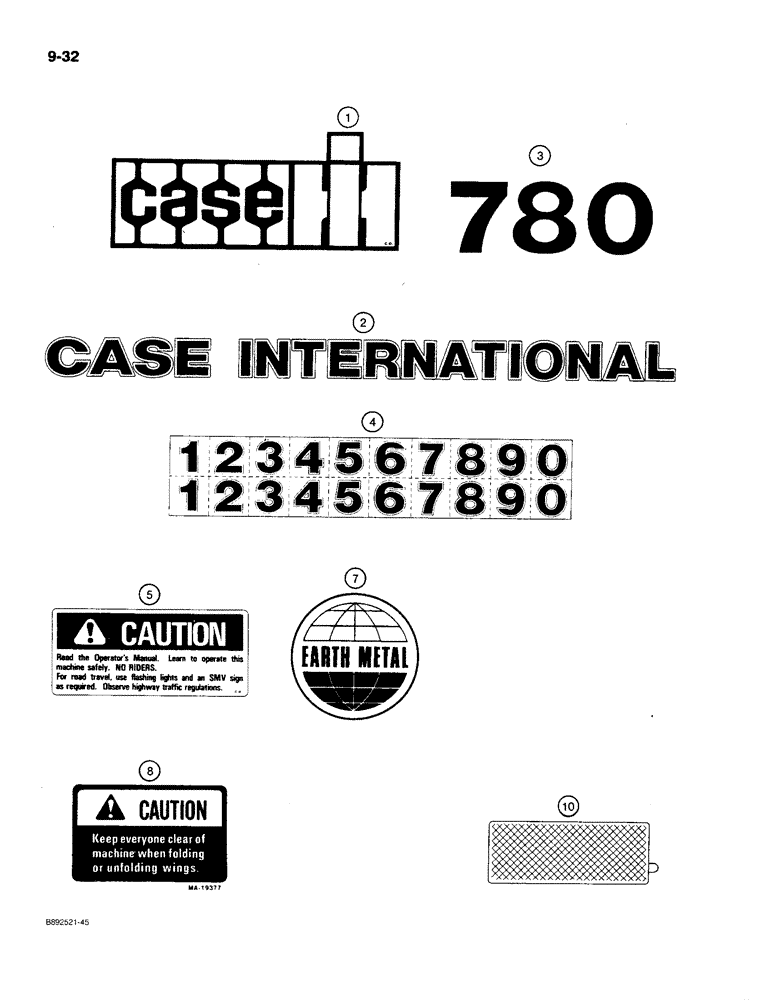

Запчасти Case IH 780 (9-32) - DECALS, CASE IH (09) - CHASSIS/ATTACHMENTS

1

95730C1

DECAL

- CaseIH trademark, 32 x 104 mm, if used

2шт.

1

95731C1

DECAL

- CaseIH trademark, 64 x 156 mm, if used

2шт.

1

91401C1

DECAL

- CaseIH trademark, 85 x 210 mm, if used

2шт.

ref #1--pn 91401c1--- 192849A1 IS THE NEW CASE LOGO VERSION OF tHIS PART NUMBER FOR A DECAL.

1шт.

1

95732C1

DECAL,Case IH Logo

- CaseIH trademark, 106 x 260 mm, if used

2шт.

Ref #1C - Replaced by 192849A1 07/01/96

1шт.

2

95815C1

DECAL

- Case International, 25 x 223 mm, for red background, if used

1шт.

2

1973422C1

DECAL

- Case International, 25 x 412 mm, for red background, if used

1шт.

2

95816C1

DECAL,CASE international Logo

- Case International, 40 x 357 mm, for red background, if used

1шт.

2

95817C1

DECAL

- Case International, 55 x 491 mm, for red background, if used

1шт.

2

1973426C1

DECAL

- Case International, 70 x 625 mm, for red background, if used

1шт.

2

95819C1

DECAL

- Case International, 85 x 759 mm, for red background, if used

1шт.

2

1973428C1

DECAL

- Case International, 60 x 990 mm, for red background, if used

1шт.

2

95821C1

DECAL

- Case International, 115 x 1027 mm, for red background, if used

1шт.

2

96025C1

DECAL

- Case International, 40 x 365 mm, for black background, if used

1шт.

2

96026C1

DECAL

- Case International, 55 x 502 mm, for black background

1шт.

2

96027C1

DECAL

- Case International, 70 x 639 mm, for black background, if used

1шт.

3

198205A1

DECAL

- model number, 780(replaces 95859C1)

1шт.

Ref #3 - Replaced by 198205A1 07/01/96

1шт.

4

96009C1

DECAL

- model, set of black numbers, 25 mm high, if used

1шт.

4

96010C1

DECAL

- model, set of black numbers, 40 mm high, if used

1шт.

4

96011C1

DECAL

- model, set of black numbers, 55 mm high, if used

1шт.

4

96012C1

DECAL

- model, set of black numbers, 70 mm high, if used

1шт.

4

96013C1

DECAL

- model, set of black numbers, 85 mm high, if used

1шт.

4

96014C1

DECAL

- model, set of black numbers, 100 mm high, if used

1шт.

4

96015C1

DECAL

- model, set of black numbers, 115 mm high, if used

1шт.

5

1254170C1

DECAL

- caution, general information

1шт.

Part of Decal Kit P/N 80539C93

1шт.

6

80593C1

DECAL

- caution, general information (French), not shown

1шт.

7

147782C1

DECAL

- Earth Metal

1шт.

Part of Decal Kit P/N 80539C93

1шт.

8

59051C2

PRODUCT GRAPHIC

DECAL - caution, keep everyone clear

1шт.

Part of Decal Kit P/N 80539C93

1шт.

9

80597C1

DECAL

- caution, keep everyone clear (French), not shown

1шт.

10

1284365C2

REFLECTOR

- amber

1шт.

Part of Decal Kit P/N 80539C93

1шт.

10

1284374C1

REFLECTOR,Reflector Red

- red

2шт.

Part of Decal Kit P/N 80539C93

1шт.

80539C93

PACKAGE

KIT - decal, Includes: Ref. 5, 7, 8 and all 10's

1шт.
