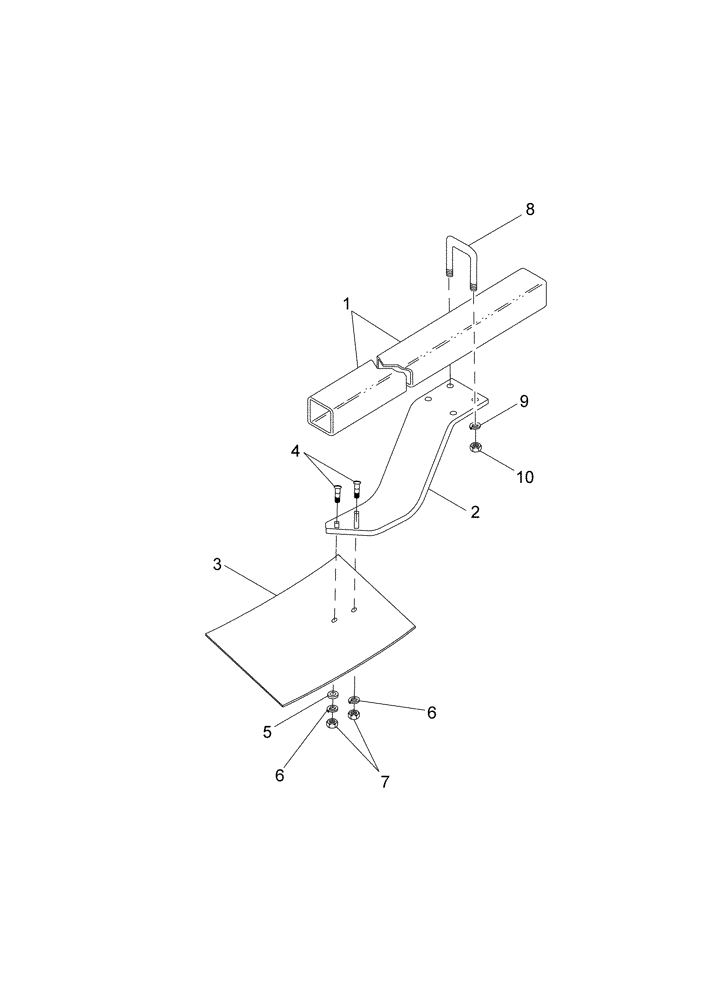

Запчасти Case IH 780 (9-20) - SCRAPERS AND SCRAPER FRAMES, DISK HARROWS WITH PADDLE TYPE SCRAPERS (09) - CHASSIS/ATTACHMENTS

1

953398R1

TUBE

FRAME - scraper mounting (Disk Harrow coded A)

2шт.

1

953399R1

TUBE

FRAME - scraper mounting (Disk Harrow coded B)

2шт.

1

953400R1

TUBE

FRAME - scraper mounting (Disk Harrow coded C)

2шт.

2

953391R2

ARM

BRACKET - mounting, blade, front (Disk Harrow coded A) (Disk Harrow coded B) (Disk Harrow coded C)

16шт.

2

953392R2

ARM

BRACKET - mounting, blade, rear, not shown (Disk Harrow coded A) (Disk Harrow coded B) (Disk Harrow coded C)

16шт.

3

953389R2

HALF BLADE

BLADE - scraper, front (Disk Harrow coded A) (Disk Harrow coded B) (Disk Harrow coded C)

16шт.

3

953390R2

HALF BLADE

BLADE - scraper, rear, not shown (Disk Harrow coded A) (Disk Harrow coded B) (Disk Harrow coded C)

16шт.

4

15600R1

PLOW BOLT,#3, 1/2" - 13 x 1 3/4", Gr 2

BOLT - carriage, 1/2 NC x 1-3/4 inch, 2 used per blade

1шт.

5

138350R1

WASHER

- flat, 1/2 x 1-1/4 x 3/16 inch, 1 used per blade

1шт.

6

103323

LOCK WASHER,1/2"

WASHER, LOCK, , 2 used per blade 1/2"

1шт.

7

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex, 2 used per blade 1/2"-13, G5

1шт.

8

PO27435

U-BOLT

- special (Disk Harrow coded A) (Disk Harrow coded B) (Disk Harrow coded C)

64шт.

9

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, , 2 used per U-bolt 1/2"

1шт.

10

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex, 2 used per U-bolt 1/2"-13, G5

1шт.
