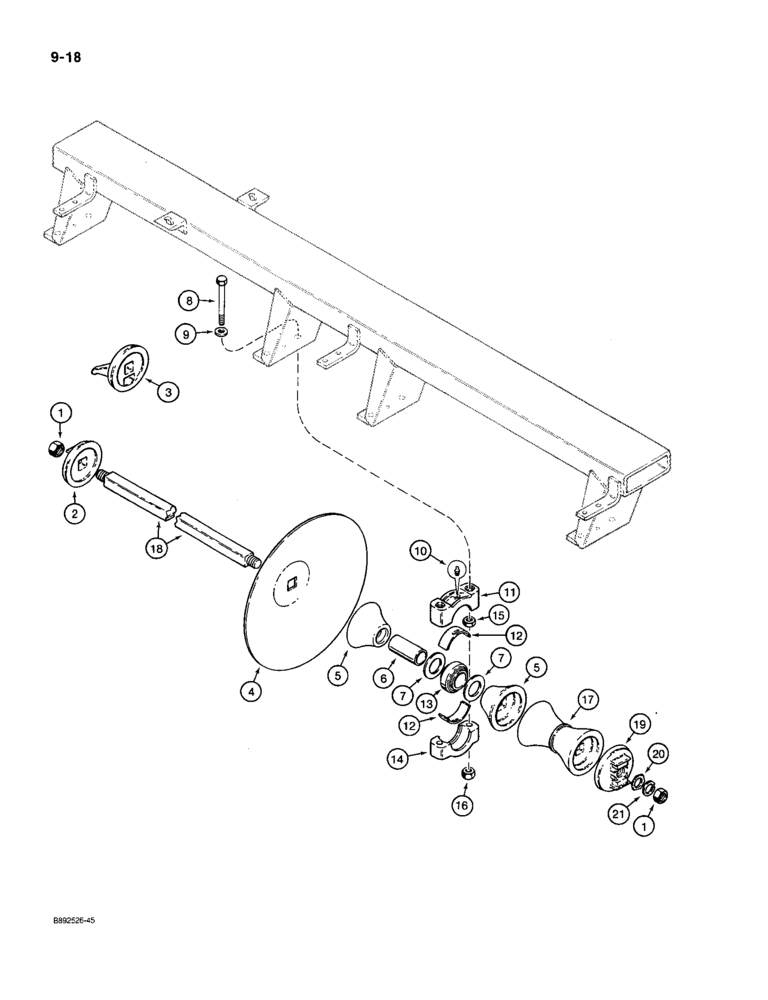

Запчасти Case IH 780 (9-18) - DISKS AND BEARINGS, DISK HARROWS WITH SPRING TYPE SCRAPERS (09) - CHASSIS/ATTACHMENTS

1

961933R1

NUT

- hex, 1-3/4 inch NC

8-16шт.

2

60253C1

WASHER

- special, arbor rod

8-16шт.

3

129916C1

BLOCK DRIVER

DRIVER - gang (Disk Harrow coded D)

8шт.

4

58917C2

DISK HARROW

DISK - notched, 26 inch (660 mm) OD x 5/16 inch (8 mm) thick

1шт.

4

60276C1

DISK HARROW

DISK - notched, 28 inch (711 mm) OD X 5/16 inch (8 mm) thick

1шт.

4

60278C1

DISC

DISK - notched, 30 inch (762 mm) OD x 5/16 inch (8 mm) thick

1шт.

4

60279C1

DISC

DISK - notched, 32 inch (813 mm) OD x 5/16 inch (8 mm) thick

1шт.

4

129586C1

TILLAGE BLADE

DISK - notched, 32 inch (813 mm) OD x 5/16 inch (8 mm) thick, hard face

1шт.

5

60250C1

SPOOL

10шт.

6

60251C1

TUBE,2.312" ID, 2.745" OD, 6.8" Length

10шт.

7

961921R1

WASHER,70.231 mm ID x 110.3 mm OD x 6.35 mm

20шт.

8

60248C1

BOLT,Hex, 1" - 8 x 8", Gr 5

20шт.

9

25550R1

WASHER,1 1/16" x 2" x .219", HDN

20шт.

10

60266C1

BAR

10шт.

11

961902R2

CAP

CLAMP - bearing, upper

8-10шт.

12

60247C1

STRIP

Isolator

2шт.

13

60249C91

BALL BEARING,70mm ID x 125mm OD x 61.93mm W

Bearing

1шт.

14

961903R2

CLAMP

Lower Bearing Clamp

1шт.

15

87553819

JAM NUT

Nut

2шт.

16

218445

NUT,Jam, 1"-8, G5

20шт.

17

60252C1

SPOOL

- spacing, 12 inch (Disk Harrow coded A) (Disk Harrow coded B) (Disk Harrow coded C) (Disk Harrow coded D)

20шт.

18

60244C2

BOLT

ROD - arbor, 69-5/16 inch long (Disk Harrow coded A and D) (Disk Harrow coded C)

2шт.

18

60245C1

BOLT

ROD - arbor, 80-5/16 inch long (Disk Harrow coded B)

4шт.

18

60246C1

BOLT

ROD - arbor, 116-5/16 inch long (Disk Harrow coded C)

2шт.

18

112884C1

BAR

ROD - arbor, 56-5/16 inch long (Disk Harrow coded D)

4шт.

19

60253C1

WASHER

- special, arbor rod

4-8шт.

20

60243C2

SPACER

- hex, arbor rod

4-8шт.

21

60254C1

LOCK WASHER,45.54mm ID x 66.5mm OD x 9.22mm Thk

- lock, 1-3/4 inch

4-8шт.
