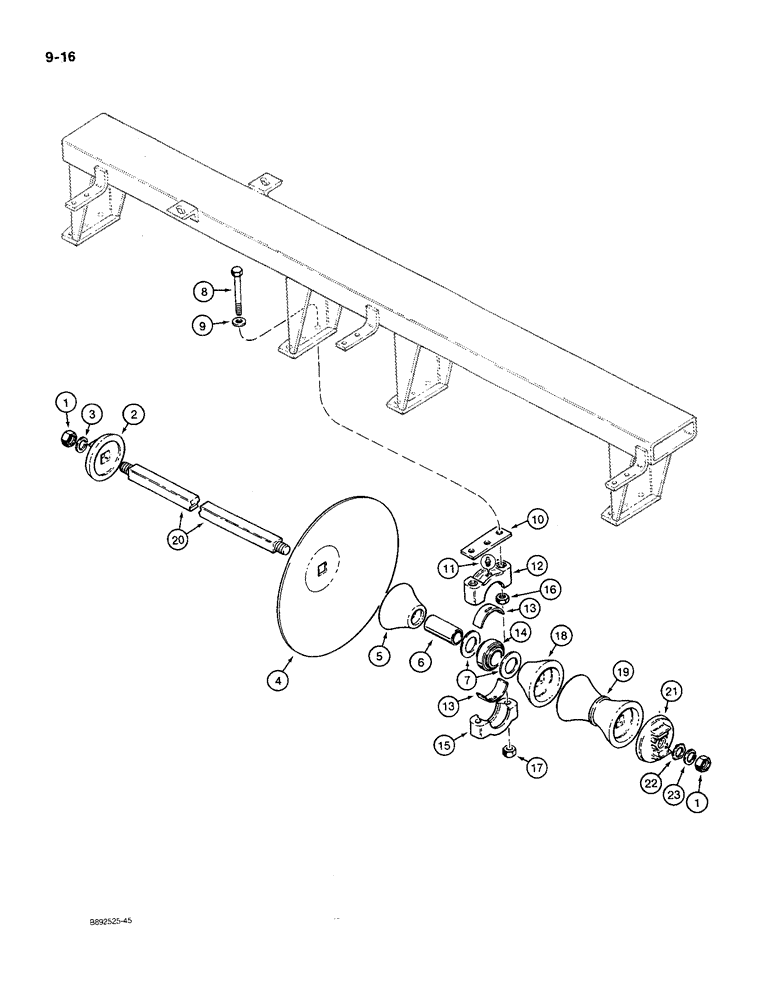

Запчасти Case IH 780 (9-16) - DISKS AND BEARINGS, DISK HARROWS WITH PADDLE TYPE SCRAPERS (09) - CHASSIS/ATTACHMENTS

1

961933R1

NUT

- hex, 1-3/4 inch NC

8шт.

2

60253C1

WASHER

- special, arbor rod

8шт.

3

60254C1

LOCK WASHER,45.54mm ID x 66.5mm OD x 9.22mm Thk

- lock, 1-3/4 inch

4шт.

4

60275C1

DISC

DISK - notched, 28 inch (711 mm) OD x 1/4 inch (6 mm) thick

1шт.

4

60276C1

DISK HARROW

DISK - notched, 28 inch (711 mm) OD X 5/16 inch (8 mm) thick

1шт.

4

60278C1

DISC

DISK - notched, 30 inch (762 mm) OD x 5/16 inch (8 mm) thick

1шт.

4

60279C1

DISC

DISK - notched, 32 inch (813 mm) OD x 5/16 inch (8 mm) thick

1шт.

5

60250C1

SPOOL

- spacing, 12 inch

8-10шт.

6

60251C1

TUBE,2.312" ID, 2.745" OD, 6.8" Length

BUSHING - bearing

8-10шт.

7

961921R1

WASHER,70.231 mm ID x 110.3 mm OD x 6.35 mm

- bearing

16-20шт.

8

60248C1

BOLT,Hex, 1" - 8 x 8", Gr 5

BOLT - hex, 1 inch NC x 8 inch

16-20шт.

9

25550R1

WASHER,1 1/16" x 2" x .219", HDN

- flat, 1-1/16 x 2 x 7/32 inch

16-20шт.

10

60266C1

BAR

- spacer, used with 32 inch OD disks

10шт.

11

219-7

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 inch PT

8-10шт.

12

961902R2

CAP

CLAMP - bearing, upper

8-10шт.

13

60247C1

STRIP

- rubber

16-20шт.

14

60249C91

BALL BEARING,70mm ID x 125mm OD x 61.93mm W

- disk gang

8-10шт.

15

961903R2

CLAMP

- bearing, lower

8-10шт.

16

218445

NUT,Jam, 1"-8, G5

- hex jam, 1 inch NC

16-20шт.

17

220083

NUT,1"-8, G5

- hex, 1 inch NC

16-20шт.

18

60250C1

SPOOL

- bearing, 12 inch

8-10шт.

19

60252C1

SPOOL

- spacing, 12 inch (Disk Harrow coded A) (Disk Harrow coded B) (Disk Harrow coded C)

18шт.

20

60244C2

BOLT

ROD - arbor, 69-5/16 inch long (Disk Harrow coded A) (Disk Harrow coded C)

2шт.

20

60245C1

BOLT

ROD - arbor, 80-5/16 inch long (Disk Harrow coded B)

4шт.

20

60246C1

BOLT

ROD - arbor, 116-5/16 inch long (Disk Harrow coded C)

2шт.

21

60253C1

WASHER

- special, arbor rod

8шт.

22

60243C2

SPACER

- hex, arbor rod

4шт.

23

60254C1

LOCK WASHER,45.54mm ID x 66.5mm OD x 9.22mm Thk

- lock, 1-3/4 inch

4шт.
