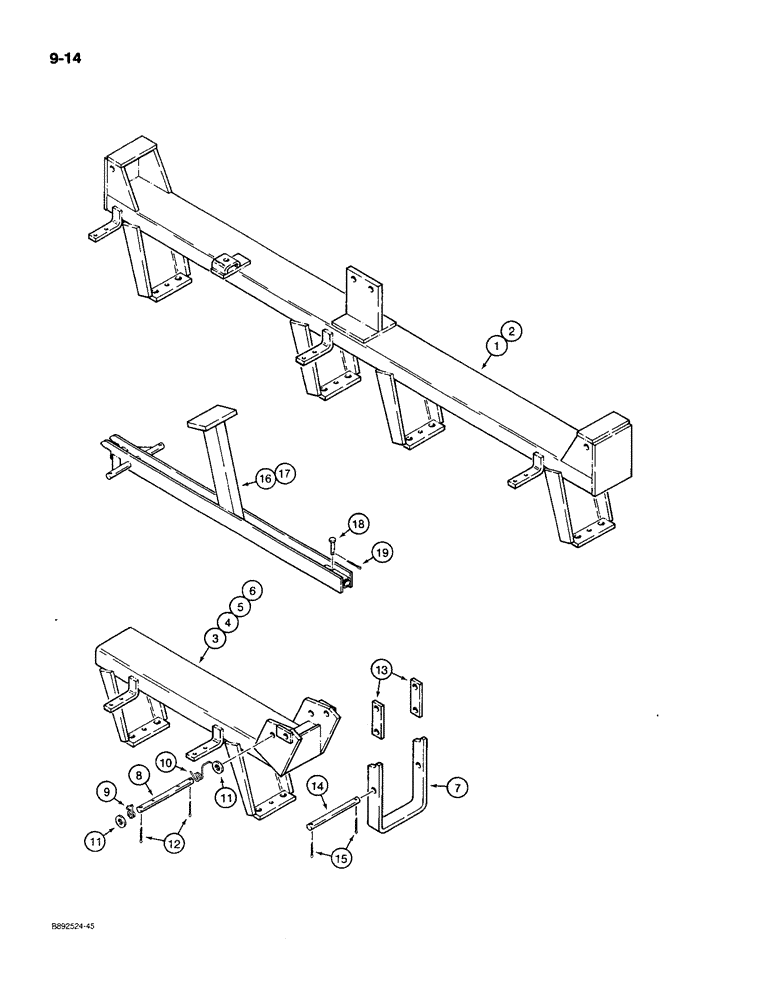

Запчасти Case IH 780 (9-14) - GANG FRAMES, FOLDING, DISK HARROWS WITH SPRING TYPE SCRAPERS (09) - CHASSIS/ATTACHMENTS

1

129510C2

BAR

FRAME - main gang, rear

1шт.

2

129509C2

BAR

FRAME - main gang, front, not shown

1шт.

1263504C91

EXTENSION

FRAME ASSEMBLY - rear wing gang, left-hand

1шт.

1263507C91

EXTENSION

FRAME ASSEMBLY - rear wing gang, right-hand

1шт.

1263506C91

EXTENSION

FRAME ASSEMBLY - front wing gang, left-hand

1шт.

1263505C91

EXTENSION

FRAME ASSEMBLY - front wing gang, right-hand

1шт.

3

NSS

NOT SOLD SEPARAT

FRAME - rear wing gang, left-hand

1шт.

4

NSS

NOT SOLD SEPARAT

FRAME - rear wing gang, right-hand, not shown

1шт.

5

NSS

NOT SOLD SEPARAT

FRAME - front wing gang, left-hand, not shown

1шт.

6

NSS

NOT SOLD SEPARAT

FRAME - front wing gang, right-hand, not shown

1шт.

7

121273C1

BRACKET

- latch lockout

1шт.

8

60209C1

PIN,31.8mm OD x 393.7mm L

- latch pivot

1шт.

9

60600C1

VALVE SPRING

SPRING - hinge latch, left-hand

1шт.

10

60601C1

VALVE SPRING

SPRING - hinge latch, right-hand

1шт.

11

195-2120

WASHER,1.28" ID x 2" OD x 0.24" Thk

- flat, 1-9/32 x 2 x 7/32 inch

2шт.

12

132-182

PIN

- cotter, 5/16 x 2 inch

4шт.

13

60207C1

BAR

- latch pull

8шт.

14

60205C1

PIN

- hinge pivot

4шт.

15

132-182

PIN

- cotter, 5/16 x 2 inch

8шт.

16

112670C1

EXTENSION

ARM - stop, wing frame, front right-hand, rear left-hand and rear right-hand

3шт.

17

112668C1

EXTENSION

ARM - stop, wing bar, front left-hand, not shown

1шт.

18

22966R1

HEADED PIN,5/8" x 2 3/8"

PIN - clevis, 5/8 x 2-3/8 inch

4шт.

19

132-344

COTTER PIN,3/16" x 1"

PIN, SPLIT (COTTER), 3/16" x 1"

4шт.
