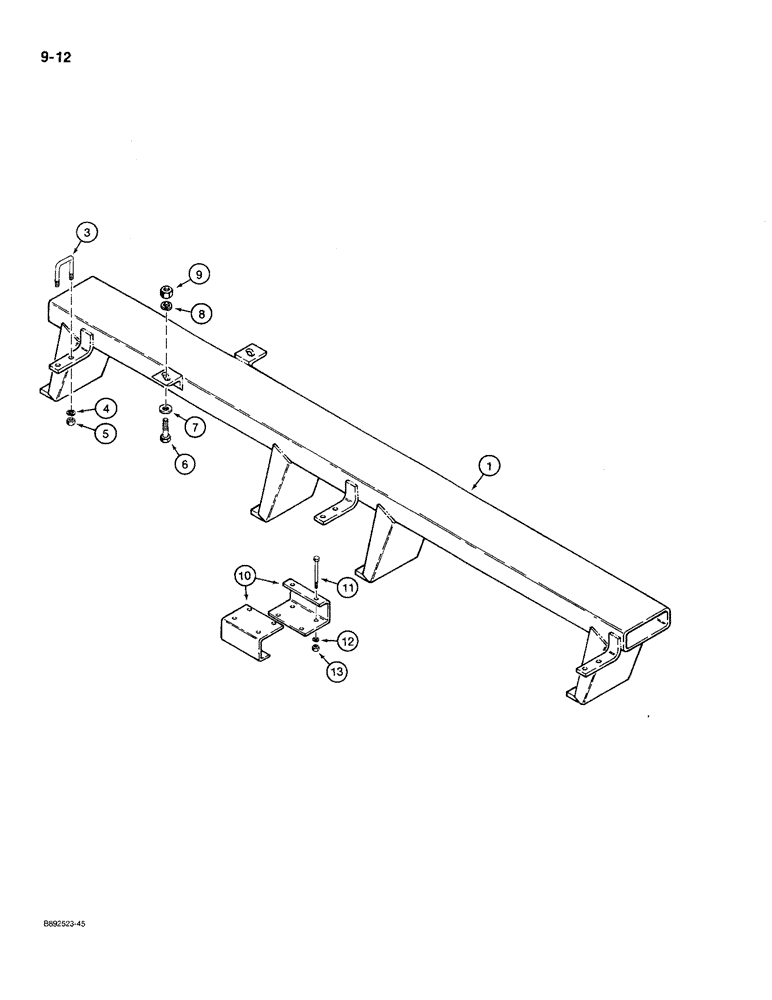

Запчасти Case IH 780 (9-12) - GANG FRAMES, NON-FOLDING, DISK HARROWS WITH SPRING TYPE SCRAPERS (09) - CHASSIS/ATTACHMENTS

1

129501C1

BAR ASSY.

FRAME - main gang, front (Disk Harrow coded A)

1шт.

1

129503C1

BAR ASSY.

FRAME - main gang, front (Disk Harrow coded B)

1шт.

1

129505C1

BAR ASSY.

FRAME - main gang, front (Disk Harrow coded C)

1шт.

2

129502C2

BAR ASSY.

FRAME - main gang, rear, not shown (Disk Harrow coded A)

1шт.

2

129504C1

BAR ASSY.

FRAME - main gang, rear, not shown (Disk Harrow coded B)

1шт.

2

129506C1

BAR

FRAME - main gang, rear, not shown (Disk Harrow coded C)

1шт.

3

60255C1

BOLT

U-BOLT - special, scraper frame retaining, see page 9-23 for scraper frame and scraper

1шт.

4

192-27

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

1шт.

5

425-1012

NUT,3/4"-10, G5

- hex, 3/4 inch NC

1шт.

6

413-1648

BOLT,Hex, 1" - 8 x 3", Gr 5

- hex, 1 NC x 3 inch

2шт.

7

523162R1

WASHER

- flat, 1-1/32 x 1-3/4 x 1/4 inch

2шт.

8

192-31

LOCK WASHER,1"

WASHER, LOCK, 1"

2шт.

9

129-110

NUT,1"-8, G5

2шт.

10

129567C1

SUPPORT

CHANNEL - gang drive

4шт.

11

113-429

BOLT,Hex, 1/2" - 13 x 5", Gr 5

8шт.

12

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

8шт.

13

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

8шт.
