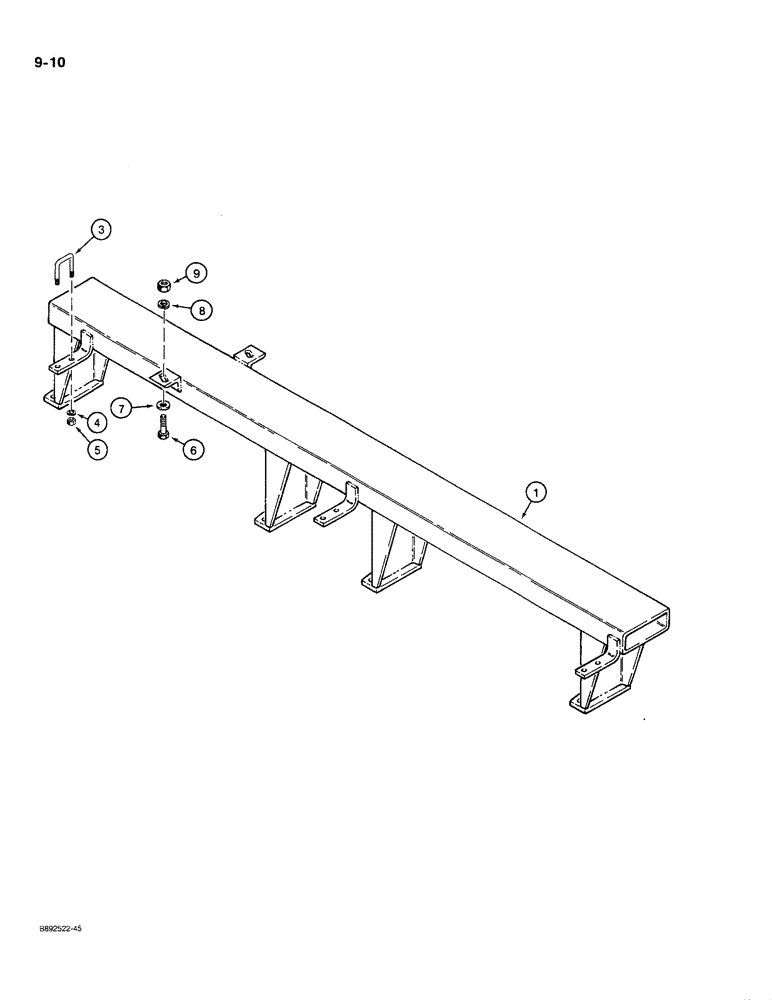

Запчасти Case IH 780 (9-10) - GANG FRAMES, NON-FOLDING, DISK HARROWS WITH PADDLE TYPE SCRAPERS (09) - CHASSIS/ATTACHMENTS

1

60235C2

BAR

FRAME - main gang, front (Disk Harrow coded A)

1шт.

1

60239C2

BAR

FRAME - main gang, front (Disk Harrow coded B)

1шт.

1

60241C2

BAR

FRAME - main gang, front (Disk Harrow coded C)

1шт.

2

60236C1

BAR

FRAME - main gang, rear, not shown (Disk Harrow coded A)

1шт.

2

60240C1

BAR

FRAME - main gang, rear, not shown (Disk Harrow coded B)

1шт.

2

60242C1

BAR

FRAME - main gang, rear, not shown (Disk Harrow coded C)

1шт.

3

60255C1

BOLT

U-BOLT - special, scraper frame retaining, see page 9-21 for scraper frame and scraper

1шт.

4

192-27

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

1шт.

5

425-1012

NUT,3/4"-10, G5

- hex, 3/4 inch NC

1шт.

6

413-1448

BOLT,Hex, 7/8" - 9 x 3", Gr 5

- hex, 7/8 NC x 3 inch

1шт.

7

651239R1

SPRING WASHER,23.02mm ID x 38.1mm OD x 6.35mm Thk

- flat, 29/32 x 1-1/2 x 1/4 inch

1шт.

8

192-29

LOCK WASHER,7/8"

7/8"

1шт.

9

129-109

NUT,7/8"-9, G5

1шт.
