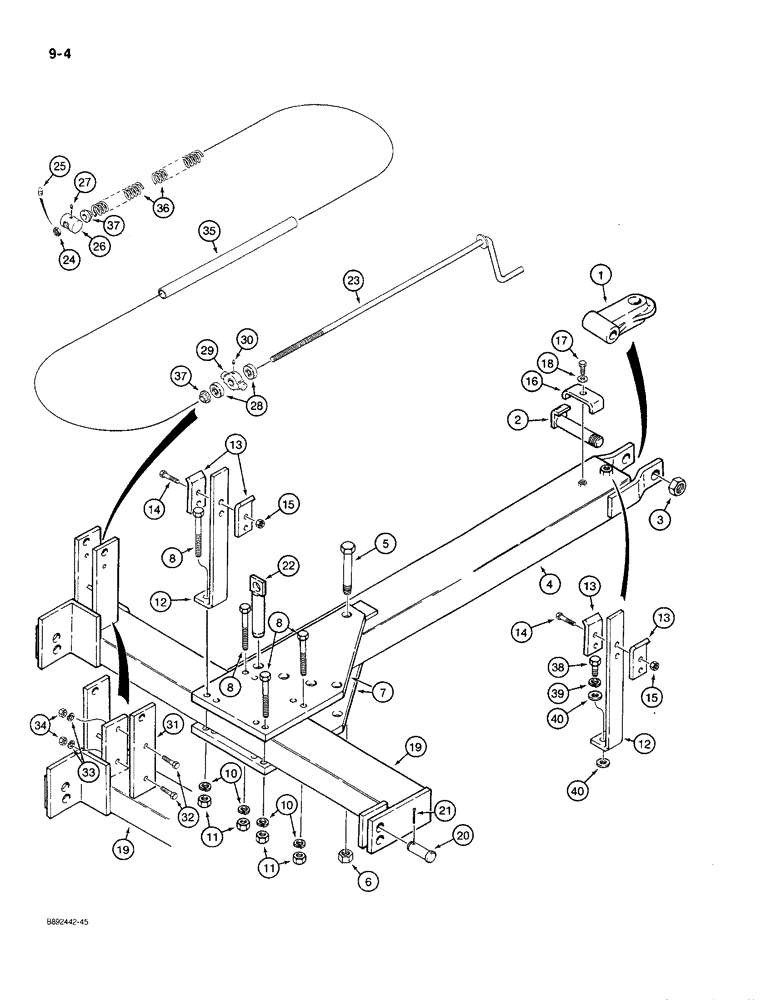

Запчасти Case IH 780 (9-04) - HITCH (09) - CHASSIS/ATTACHMENTS

1

56892C4

TOW BAR

CLEVIS - hitch

1шт.

2

60141C1

PIN

- clevis to drawbar extension

1шт.

3

20787R1

LOCK NUT,1 1/4"-7, G5

NUT - hex lock, 1-1/4 inch NC

1шт.

4

60137C3

ASSEMBLY

EXTENSION - drawbar

1шт.

5

25981R1

BOLT,Hex, 1 1/2" - 6 x 9", Gr 8

- hex, 1-1/2 NC x 9 inch

1шт.

6

21125R1

LOCK NUT,1 1/2"-6, G5

NUT - hex lock, 1-1/2 inch NC

1шт.

7

60136C1

PLATE

- hitch adjustment

2шт.

8

22832R1

BOLT,Hex, 7/8" - 9 x 8 1/2", Gr 5

- hex, 7/8 NC x 8-1/2 inch

8шт.

10

192-29

LOCK WASHER,7/8"

WASHER, LOCK, 7/8"

8шт.

11

129-109

NUT,7/8"-9, G5

8шт.

12

58643C1

SUPPORT

- hydraulic hose

1шт.

13

58644C1

HOLDER

- hydraulic hose

2шт.

14

18498R1

BOLT,Hex, 1/2" - 13 x 3 1/2", Gr 2

- hex, 1/2 NC x 3-1/2 inch

4шт.

15

9413967

LOCK NUT,1/2"-13, GB

NUT - hex lock, 1/2 inch NC

4шт.

16

129888C2

CLAMP

- hose

2шт.

17

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

2шт.

18

25710R1

WASHER

- flat, 17/32 x 1-1/16 x 5/64 inch

2шт.

19

60128C1

HITCH ASSY, TRAILER

DRAWBAR - hitch

1шт.

Used with this Ref.19 P/N 60128C1 is a new Hitch Retaining Bolt P/N 252079A1, new Washer P/N 496-18017 and new Locknut 27478R1. See Service Bulletin NTE SB X48 96. Note the new parts willalso adapt to the 496 and 3900 Disk Harrows.

1шт.

20

28535R1

CLEVIS PIN

PIN - clevis, 1-1/4 x 3-1/4 inch

2шт.

Improved Hitch Retaining Pin released.Change made effective PIN JAG 0790001.See Bulletin NTE SB X08 95.

1шт.

21

132-313

COTTER PIN,1/4" x 2"

PIN, Split (Cotter), 1/4" x 2"

2шт.

22

60150C2

PIN

- lock, hitch adjustment

1шт.

23

60144C1

CRANK

- hitch adjustment

1шт.

24

60149C2

LOCK NUT

- hex special, 1-1/4 inch NC

1шт.

25

485-1318

SET SCREW,Sq Hd, 5/16"-18 x 1/2"

SCREW - square head cup point set, 5/16 NC x 1/2 inch

1шт.

26

60147C1

LINK

SWIVEL - adjustment crank

1шт.

27

219-87

LUBE NIPPLE,1/4" - 28 NPTF

FITTING - grease, straight, 1/4 NF x 1/2 inch

1шт.

28

21076D

BEARING ASSY,31.9mm ID x 55.56mm OD x 16.13mm W

BEARING - hitch crank

2шт.

29

60134C1

TRUNNION

- hitch crank

1шт.

30

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight, taper 1/4"-28 NPT x .54" lg

1шт.

31

60130C1

BAR

- mounting, hitch crank, if used

1шт.

32

113-705

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 5

- hex, 3/4 NC x 2-1/2 inch, if used

2шт.

33

192-27

LOCK WASHER,3/4"

WASHER, LOCK, , If used 3/4"

2шт.

34

425-1012

NUT,3/4"-10, G5

- hex, 3/4 inch NC, if used

2шт.

35

56975C1

PIPE

SPACER - hitch spring

1шт.

36

60148C1

SPRING

- hitch crank

2шт.

37

60516C1

BUSHING,33.02mm ID x 42.93mm OD x 25.4mm L

RETAINER - hitch spring

2шт.

38

18835R1

BOLT,Hex, 3/4" - 10 x 1 1/4", Gr 2

- hex, 3/4 NC x 1-1/4 inch

1шт.

39

192-27

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

1шт.

40

467750R1

WASHER

- flat, 25/32 x 1-1/2 x 3/32 inch

2шт.
