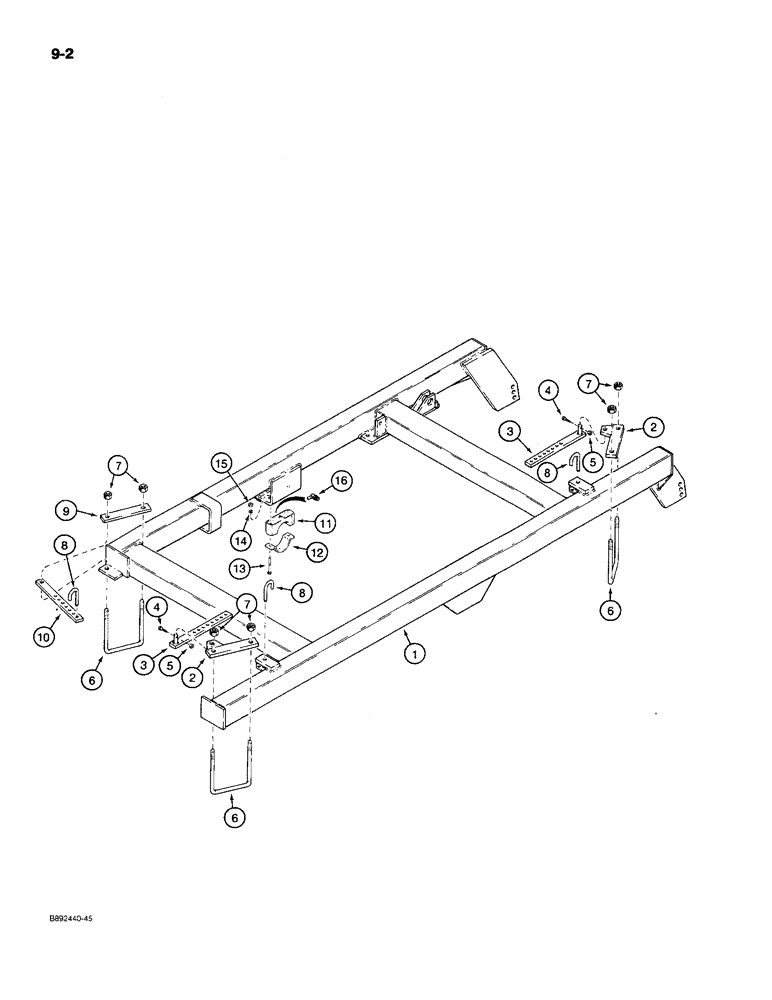

Запчасти Case IH 780 (9-02) - MAIN FRAME (09) - CHASSIS/ATTACHMENTS

1

60108C4

FRAME

- main, disk harrow, non-folding (Disk Harrow coded A, B and C

1шт.

1a

96163C91

FRAME

- main, disk harrow, folding, not shown, includes (1) 1254170C1 decal and (2) 59051C2 decals, see Figures 9-30 and 9-32 for decals

1шт.

(Disk Harrow coded D)

1шт.

2

121261C1

BAR

- retainer, adjustment pin

2шт.

3

60174C1

BAR

- gang adjustment, right-hand side

2шт.

4

113-421

BOLT,Hex, 1/2" - 13 x 2", Gr 5

2шт.

5

9413967

LOCK NUT,1/2"-13, GB

NUT - hex lock, 1/2 inch NC

2шт.

6

112907C1

U-BOLT

- gang, Serial Range: bar-frame

3шт.

7

9849649

NUT,1 1/4"-7, G5

6шт.

8

60161C1

PIN,25.4mm OD

- adjustment, gang bar

3шт.

9

112908C1

BAR

- retainer, gang bar

1шт.

10

139518C1

BAR

- gang adjustment, left-hand side

1шт.

11

60127C1

COVER ASSY

BEARING - wheel axle shaft

2шт.

12

56922C1

CAP

- wheel bearing shaft

2шт.

13

413-1296

BOLT,Hex, 3/4" - 10 x 6", Gr 5

- hex, 3/4 NC x 6 inch

4шт.

14

192-27

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

4шт.

15

425-1012

NUT,3/4"-10, G5

- hex, 3/4 inch NC

4шт.

16

219-57

LUBE NIPPLE,90 Degree Elbow, 1/4" - 28 NPTF

FITTING - grease, 90 degree, 1/4-28 taper x 3/4 inch long

2шт.
