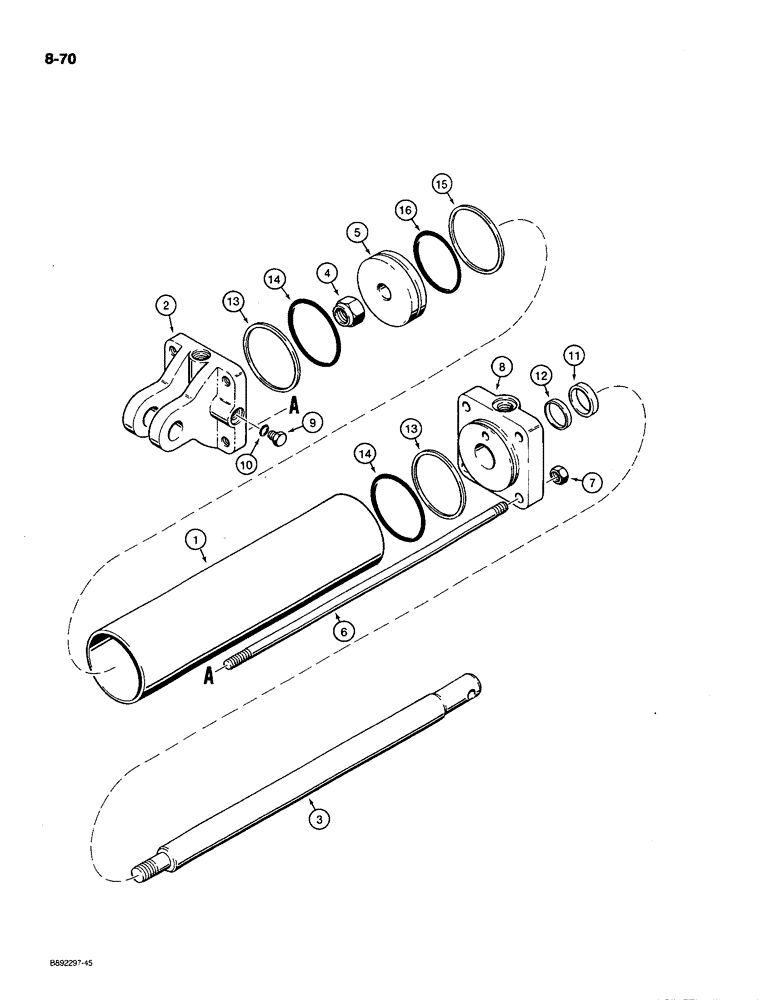

Запчасти Case IH 780 (8-70) - WING LIFT CYLINDER, 1272486C91, TIE-BOLT TYPE, 4 INCH ID (08) - HYDRAULICS

1272486C91

CYLINDER ASSY.

CYLINDER ASSEMBLY - 4 inch ID x 16 inch stroke

1шт.

wing lift

4шт.

1

NSS

NOT SOLD SEPARAT

TUBE - cylinder

1шт.

2

1282336C1

HEAD

CAP - end, cylinder

1шт.

3

1255246C1

ROD

- piston

1шт.

4

20268R1

LOCK NUT,7/8"-14, GC

NUT - hex, self-locking, 7/8 inch NF, grade 8

1шт.

5

149930C1

PISTON

- cylinder

1шт.

6

145251C1

THREADED ROD,5/8" - 11 x 539mm

BOLT - tie, cylinder

4шт.

7

425-1010

NUT,5/8"-11, G5

4шт.

8

1282337C1

GLAND

- cylinder, replaces 145246C1 and 1260843C1 glands

1шт.

9

9410359

PLUG

- hex, 1/2-20 inch, O-ring boss

1шт.

10

NSS

NOT SOLD SEPARAT

O-RING - plug

1шт.

NOTE: The cylinder assembly part number is stamped on the cylinder tube.

1шт.

Part of Cylinder Repair Kit P/N 79979C2

1шт.

11

NSS

NOT SOLD SEPARAT

WIPER - piston rod

1шт.

NOTE: The cylinder assembly part number is stamped on the cylinder tube.

1шт.

Part of Cylinder Repair Kit P/N 79979C2

1шт.

12

NSS

NOT SOLD SEPARAT

SEAL - piston rod

1шт.

NOTE: The cylinder assembly part number is stamped on the cylinder tube.

1шт.

Part of Cylinder Repair Kit P/N 79979C2

1шт.

13

NSS

NOT SOLD SEPARAT

RING - backup, end cap and gland O-rings

2шт.

NOTE: The cylinder assembly part number is stamped on the cylinder tube.

1шт.

Part of Cylinder Repair Kit P/N 79979C2

1шт.

14

NSS

NOT SOLD SEPARAT

O-RING - end cap and gland

2шт.

NOTE: The cylinder assembly part number is stamped on the cylinder tube.

1шт.

Part of Cylinder Repair Kit P/N 79979C2

1шт.

15

NSS

NOT SOLD SEPARAT

RING - backup, piston O-ring

1шт.

NOTE: The cylinder assembly part number is stamped on the cylinder tube.

1шт.

Part of Cylinder Repair Kit P/N 79979C2

1шт.

16

NSS

NOT SOLD SEPARAT

O-RING - piston

1шт.

NOTE: The cylinder assembly part number is stamped on the cylinder tube.

1шт.

Part of Cylinder Repair Kit P/N 79979C2

1шт.

79979C1

GASKET KIT

KIT - cylinder repair, Includes: Ref. 10-16

1шт.

NOTE: The cylinder assembly part number is stamped on the cylinder tube.

1шт.
