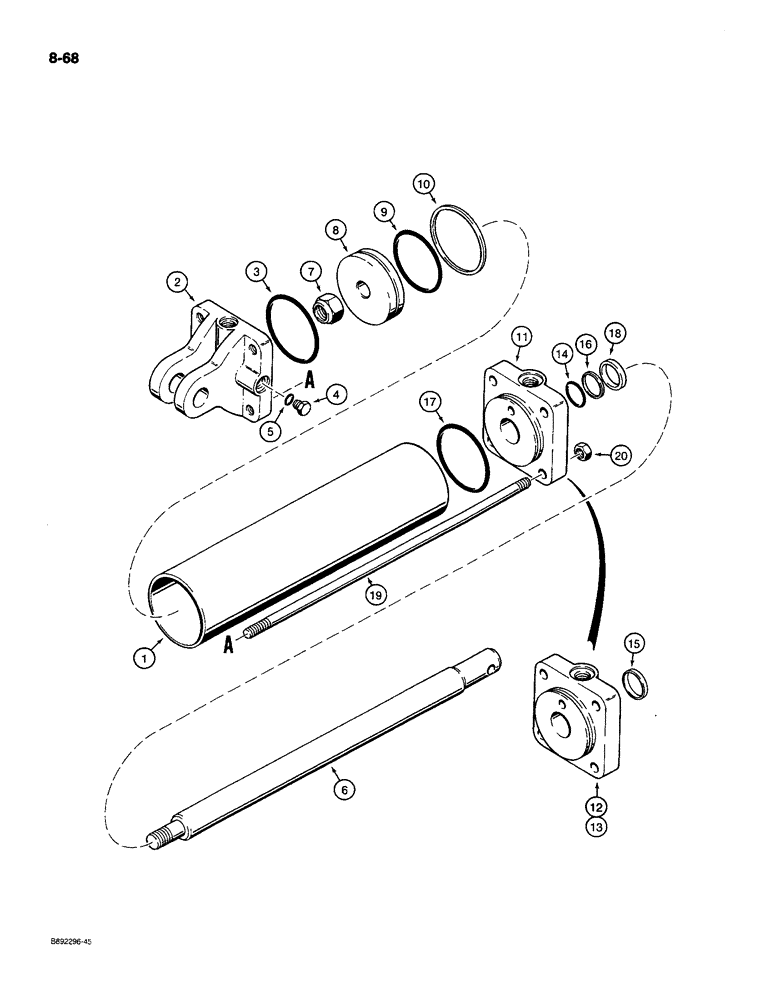

Запчасти Case IH 780 (8-68) - WING LIFT CYLINDER, 1255247C92, TIE-BOLT TYPE, 4 INCH ID (08) - HYDRAULICS

1255247C92

CYLINDER

ASSEMBLY - 4 inch ID x 16 inch stroke no longer available, for service order 1272486C91 cylinder

1шт.

assembly, parts list Figure 8-70

4шт.

1

145245C1

SLEEVE

TUBE - cylinder

1шт.

2

1282336C1

HEAD

CAP - end, cylinder

1шт.

3

NSS

NOT SOLD SEPARAT

O-RING - end cap

1шт.

4

9410359

PLUG

- hex, 1/2-20 inch, O-ring boss

1шт.

5

NSS

NOT SOLD SEPARAT

O-RING - plug

1шт.

6

1255246C1

ROD

- piston

1шт.

7

20268R1

LOCK NUT,7/8"-14, GC

NUT - hex, self-locking, 7/8 inch NF, grade 8

1шт.

8

149930C1

PISTON

- cylinder

1шт.

9

NSS

NOT SOLD SEPARAT

O-RING - piston

1шт.

10

NSS

NOT SOLD SEPARAT

RING - backup, piston O-ring

1шт.

11

145246C1

HEAD

GLAND - cylinder, no longer available, order 1282337C1 gland

1шт.

12

1260843C1

HEAD

GLAND - cylinder, no longer available, order 1282337C1 gland

1шт.

13

1282337C1

GLAND

- cylinder, replaces 145246C1 and 1260843C1 glands

1шт.

14

NSS

NOT SOLD SEPARAT

O-RING - piston rod, used with 145246C1 gland

1шт.

15

NSS

NOT SOLD SEPARAT

SEAL - piston rod, used with 1260843C1 and 1282337C1 glands

1шт.

16

NSS

NOT SOLD SEPARAT

RING - backup, gland O-ring, used with 145246C1 gland

1шт.

17

NSS

NOT SOLD SEPARAT

O-RING - gland

1шт.

18

NSS

NOT SOLD SEPARAT

WIPER - piston rod

1шт.

19

145251C1

THREADED ROD,5/8" - 11 x 539mm

BOLT - tie, cylinder

4шт.

20

425-1010

NUT,5/8"-11, G5

4шт.

145577C1

KIT

- cylinder repair, used with 145246C1 gland, includes items 3, 5, 9, 10, 14, 16 through 18

1шт.

79979C1

GASKET KIT

KIT - cylinder repair, used with 1260843C1 and 1282337C1 glands, includes items 3, 5, 9, 10, 15, 17 and 18. Kit also includes (2) backup washers not used in this application

1шт.
