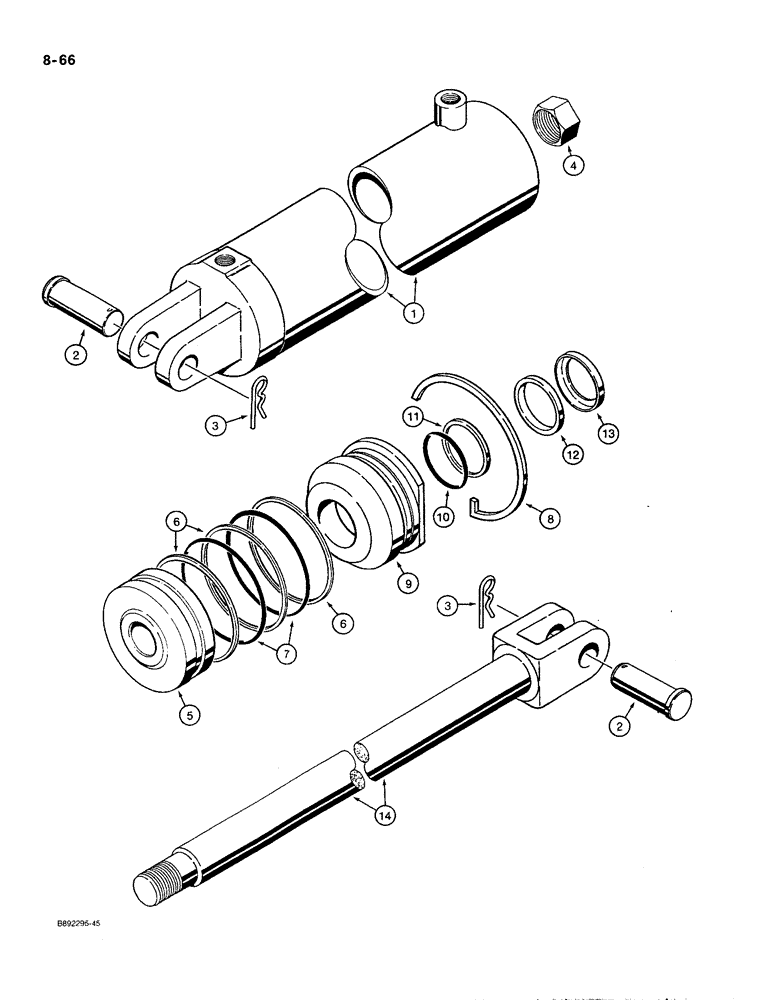

Запчасти Case IH 780 (8-66) - WING LIFT CYLINDER, 64901C91, WELDED TYPE, 4 INCH ID (08) - HYDRAULICS

64901C91

CYLINDER

ASSEMBLY- 4 inch ID x 16 inch stroke, wing lift, no longer available, for service order 1272486C91 cylinder assembly, parts list Figure 8-70, also order (1) 1252130C1 adapter, (1) 570828R1 O-ring and (2) 237-6008 O-rings

4шт.

1

64909C1

TUBE,24.71" Length

- cylinder

1шт.

2

60909C1

PIN

- cylinder pivot

2шт.

3

520175R1

CLIP

PIN - hair, cylinder pin retaining

2шт.

4

20268R1

LOCK NUT,7/8"-14, GC

NUT - hex, self-locking, 7/8 inch NF, grade 8

1шт.

5

548013R1

PISTON

- cylinder

1шт.

6

381107R1

BACK-UP RING

- backup, piston O-ring

3шт.

7

347801R1

O-RING,0.21" Thk x 3.6" ID, -342, Cl 6, 90 Duro

- 3-5/8 x 4 x 3/16 inch, piston seal

2шт.

8

548025R1

RETAINER

RING - locking, gland

1шт.

9

548022R1

HEAD

GLAND - cylinder

1шт.

10

378735R1

O-RING,1.475" ID x 0.21" Width

- 1-1/2 x 1-7/8 x 3/16 inch, rod

1шт.

11

403622R1

BACK-UP RING

RING - backup, rod O-ring

1шт.

12

383770R1

WASHER

WIPER - piston rod

1шт.

13

383771R1

SEALING WASHER

RETAINER - wiper

1шт.

14

60298C1

ROD

- piston

1шт.
