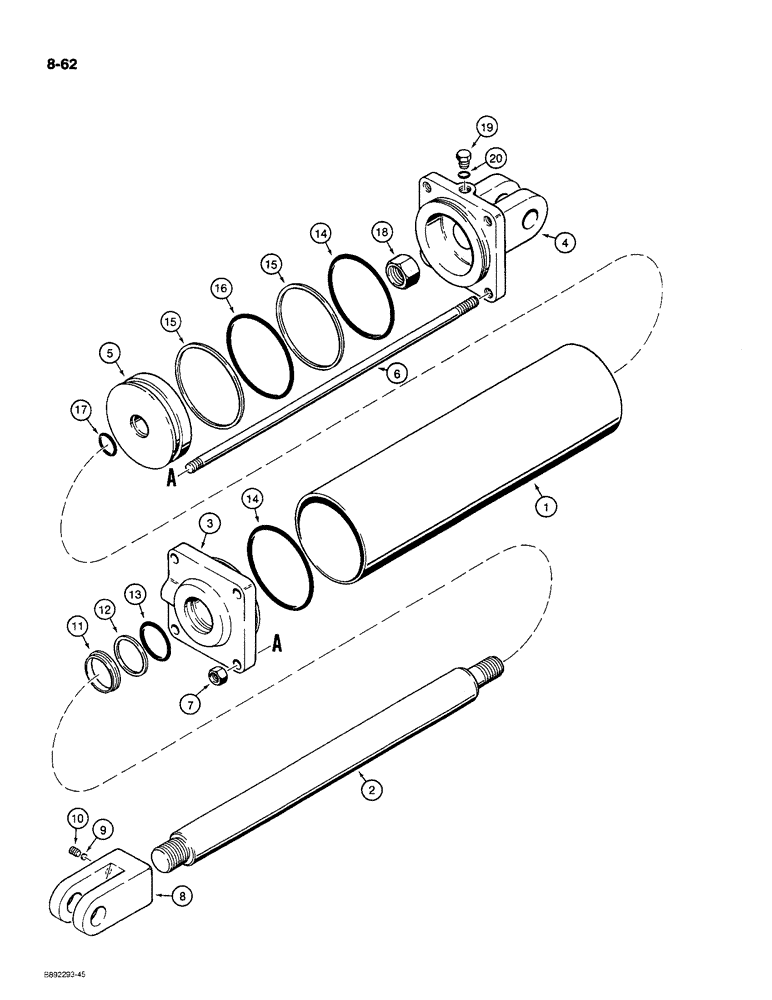

Запчасти Case IH 780 (8-62) - TRANSPORT LIFT CYLINDER, 145436C92, TIE-BOLT TYPE, 5 INCH ID (08) - HYDRAULICS

145436C92

CYLINDER

ASSEMBLY - 5 inch ID x 16 inch stroke, transport lift

1шт.

1

NSS

NOT SOLD SEPARAT

TUBE - cylinder

1шт.

2

78866C1

ROD

- piston(replaces 78865C1)

1шт.

Ref #2 - Should be 78866C1 07/01/96

1шт.

3

78867C1

END

GLAND - cylinder(replaces 78866C1)

1шт.

Ref #3 - Should be 78867C1 07/01/96

1шт.

4

78865C1

END

CAP - end, cylinder(replaces 76701C1)

1шт.

Ref #4 - Should be 78865C1 07/01/96

1шт.

5

76701C1

PISTON

- cylinder(replaces 78867C1)

2шт.

Ref #5 - Should be 76701C1 07/01/96

1шт.

6

78048C1

ROD,5/8" - 18 x 21 5/8"

BOLT - tie, cylinder

4шт.

7

425-1010

NUT,5/8"-11, G5

4шт.

76704C1

FORK

CLEVIS ASSEMBLY - rod end

1шт.

8

NSS

NOT SOLD SEPARAT

CLEVIS - rod end

1шт.

9

145453C1

PLUG,Lock, 7.938mm Dia x 3.175mm Thk, Nylon

PAD - insert

1шт.

10

222518

SET SCREW,Hex Soc, 3/8"-24 x 3/8"

SCREW - set, hex socket, 3/8 NF x 3/8 inch

1шт.

11

NSS

NOT SOLD SEPARAT

WIPER - piston rod

1шт.

NOTE: The cylinder assembly part number is stamped on the cylinder tube.

1шт.

Part of Cylinder Repair Kit P/N 76980C1

1шт.

12

NSS

NOT SOLD SEPARAT

WASHER - backup, rod O-ring

1шт.

NOTE: The cylinder assembly part number is stamped on the cylinder tube.

1шт.

Part of Cylinder Repair Kit P/N 76980C1

1шт.

13

NSS

NOT SOLD SEPARAT

O-RING - rod

1шт.

NOTE: The cylinder assembly part number is stamped on the cylinder tube.

1шт.

Part of Cylinder Repair Kit P/N 76980C1

1шт.

14

NSS

NOT SOLD SEPARAT

O-RING - end cap and gland

2шт.

NOTE: The cylinder assembly part number is stamped on the cylinder tube.

1шт.

Part of Cylinder Repair Kit P/N 76980C1

1шт.

15

NSS

NOT SOLD SEPARAT

WASHER - backup, piston O-ring

2шт.

NOTE: The cylinder assembly part number is stamped on the cylinder tube.

1шт.

Part of Cylinder Repair Kit P/N 76980C1

1шт.

16

NSS

NOT SOLD SEPARAT

O-RING - piston

1шт.

NOTE: The cylinder assembly part number is stamped on the cylinder tube.

1шт.

Part of Cylinder Repair Kit P/N 76980C1

1шт.

17

NSS

NOT SOLD SEPARAT

O-RING - piston, Serial Range: rod-piston

1шт.

NOTE: The cylinder assembly part number is stamped on the cylinder tube.

1шт.

Part of Cylinder Repair Kit P/N 76980C1

1шт.

18

27137R1

LOCK NUT,1 1/4"-12, GC

NUT - hex, self-locking, 1-1/4 inch NF, grade 8

1шт.

19

76349

PLUG,9/16" - 18 ORB

1шт.

76980C1

PACKAGE

KIT - cylinder repair, Includes: Ref. 11-17

1шт.

NOTE: The cylinder assembly part number is stamped on the cylinder tube.

1шт.

20

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.
