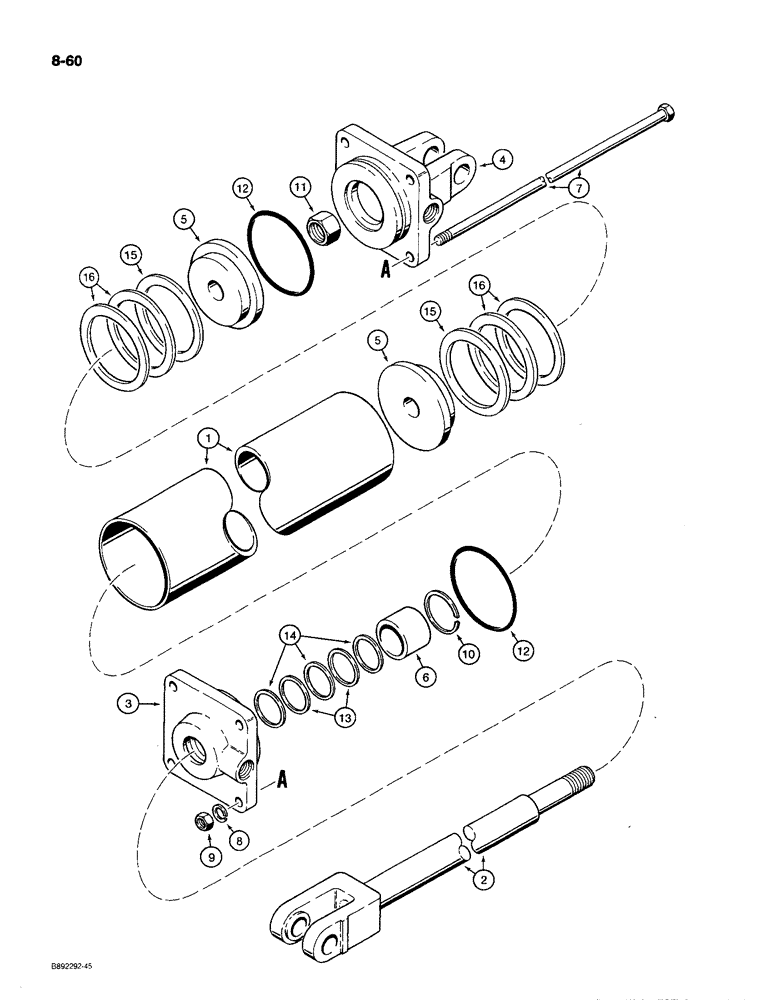

Запчасти Case IH 780 (8-60) - TRANSPORT LIFT CYLINDER, 959947R91, TIE-BOLT TYPE, 5 INCH ID (08) - HYDRAULICS

959947R91

CYLINDER,Double Acting, 406.4mm Stroke

ASSEMBLY - 5 inch ID x 16 inch stroke, transport lift

1шт.

1

NSS

NOT SOLD SEPARAT

TUBE - cylinder

1шт.

2

959937R91

ROD

- piston

1шт.

3

959939R1

HEAD

GLAND - cylinder

1шт.

4

959958R1

HEAD (CYLINDER)

CAP - end, cylinder

1шт.

5

959933R1

HEAD

PISTON - cylinder

2шт.

6

959929R1

BEARING LINER,1.757" ID x 2.5" OD

- piston rod

1шт.

7

959930R2

BOLT,Hex, 5/8" - 11 x 24mm

- tie, cylinder

4шт.

8

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

9

425-1010

NUT,5/8"-11, G5

4шт.

10

959928R1

SNAP RING,2.50", Int, #250

Ring, Snap, , brg 2.50", Int, #250

1шт.

11

27137R1

LOCK NUT,1 1/4"-12, GC

NUT - hex, self-locking, 1-1/4 inch NF, grade 8

1шт.

12

NSS

NOT SOLD SEPARAT

O-RING - end cap and gland

2шт.

NOTE: The cylinder assembly part number is stamped on the cylinder tube.

1шт.

Part of Seal Repair Kit P/N 964134R91

1шт.

13

NSS

NOT SOLD SEPARAT

SEAL - dirt, piston rod

2шт.

NOTE: The cylinder assembly part number is stamped on the cylinder tube.

1шт.

Part of Seal Repair Kit P/N 964134R91

1шт.

14

NSS

NOT SOLD SEPARAT

SEAL - oil, piston rod

3шт.

NOTE: The cylinder assembly part number is stamped on the cylinder tube.

1шт.

Part of Seal Repair Kit P/N 964134R91

1шт.

15

NSS

NOT SOLD SEPARAT

SEAL - piston, outer

2шт.

NOTE: The cylinder assembly part number is stamped on the cylinder tube.

1шт.

Part of Seal Repair Kit P/N 964134R91

1шт.

16

NSS

NOT SOLD SEPARAT

SEAL - piston, inner

4шт.

NOTE: The cylinder assembly part number is stamped on the cylinder tube.

1шт.

Part of Seal Repair Kit P/N 964134R91

1шт.

964134R91

SEAL KIT

- seal repair, Includes: Ref. 12-16

1шт.

NOTE: The cylinder assembly part number is stamped on the cylinder tube.

1шт.
