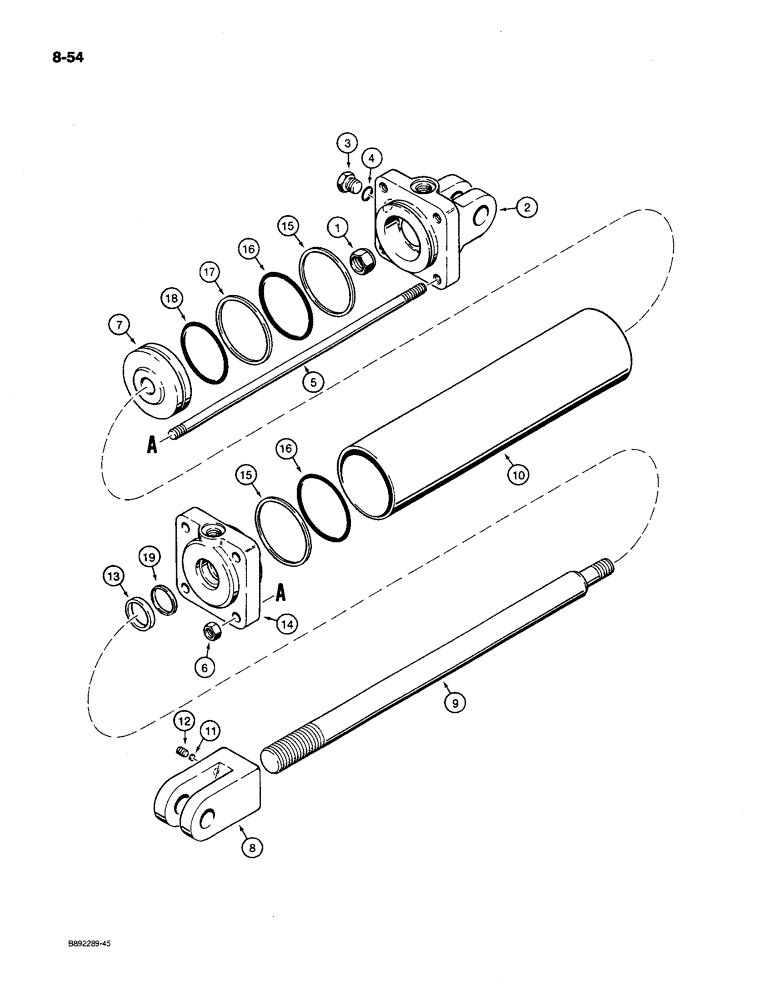

Запчасти Case IH 780 (8-54) - TRANSPORT LIFT CYLINDER, 1272150C91, TIE-BOLT TYPE, 4 INCH ID (08) - HYDRAULICS

1272150C91

CYLINDER

ASSEMBLY - 4 inch ID x 16 inch stroke, transport lift

1шт.

1

20268R1

LOCK NUT,7/8"-14, GC

NUT - hex self-locking, 7/8 inch NF, grade 8

1шт.

2

1282336C1

HEAD

CAP - end, cylinder

1шт.

3

9410359

PLUG

- hex, 3/4-16 inch O-ring boss

1шт.

4

NSS

NOT SOLD SEPARAT

O-RING - plug

1шт.

NOTE: The cylinder assembly part number is stamped on the cylinder tube.

1шт.

Part of Cylinder Repair Kit P/N 79979C2

1шт.

5

145251C1

THREADED ROD,5/8" - 11 x 539mm

BOLT - tie, cylinder

4шт.

6

425-1010

NUT,5/8"-11, G5

4шт.

7

149930C2

PISTON

- cylinder

1шт.

8

145240C1

CLEVIS,1 -1/2" - 12

- rod

1шт.

9

1263346C1

ROD ASSY.

ROD - piston

1шт.

10

NSS

NOT SOLD SEPARAT

TUBE - cylinder

1шт.

11

145453C1

PLUG,Lock, 7.938mm Dia x 3.175mm Thk, Nylon

PAD - insert

1шт.

12

125843

SET SCREW,Hex Skt, 3/8"-16 x 3/8"

SCREW - set, hex socket, 3/8 NC x 3/8 inch

1шт.

13

NSS

NOT SOLD SEPARAT

WIPER - piston rod

1шт.

NOTE: The cylinder assembly part number is stamped on the cylinder tube.

1шт.

Part of Cylinder Repair Kit P/N 79979C2

1шт.

14

1282337C1

GLAND

- cylinder

1шт.

15

NSS

NOT SOLD SEPARAT

RING - backup, gland and end cap O-rings

2шт.

NOTE: The cylinder assembly part number is stamped on the cylinder tube.

1шт.

Part of Cylinder Repair Kit P/N 79979C2

1шт.

16

NSS

NOT SOLD SEPARAT

O-RING - gland and end cap

2шт.

NOTE: The cylinder assembly part number is stamped on the cylinder tube.

1шт.

Part of Cylinder Repair Kit P/N 79979C2

1шт.

17

NSS

NOT SOLD SEPARAT

RING - retaining, piston O-ring

1шт.

NOTE: The cylinder assembly part number is stamped on the cylinder tube.

1шт.

Part of Cylinder Repair Kit P/N 79979C2

1шт.

18

NSS

NOT SOLD SEPARAT

O-RING - piston

1шт.

NOTE: The cylinder assembly part number is stamped on the cylinder tube.

1шт.

Part of Cylinder Repair Kit P/N 79979C2

1шт.

19

NSS

NOT SOLD SEPARAT

SEAL - piston rod

1шт.

NOTE: The cylinder assembly part number is stamped on the cylinder tube.

1шт.

Part of Cylinder Repair Kit P/N 79979C2

1шт.

79979C2

SEAL KIT

KIT - cylinder repair, Includes: Ref. 4, 13 and 15-19

1шт.

NOTE: The cylinder assembly part number is stamped on the cylinder tube.

1шт.
