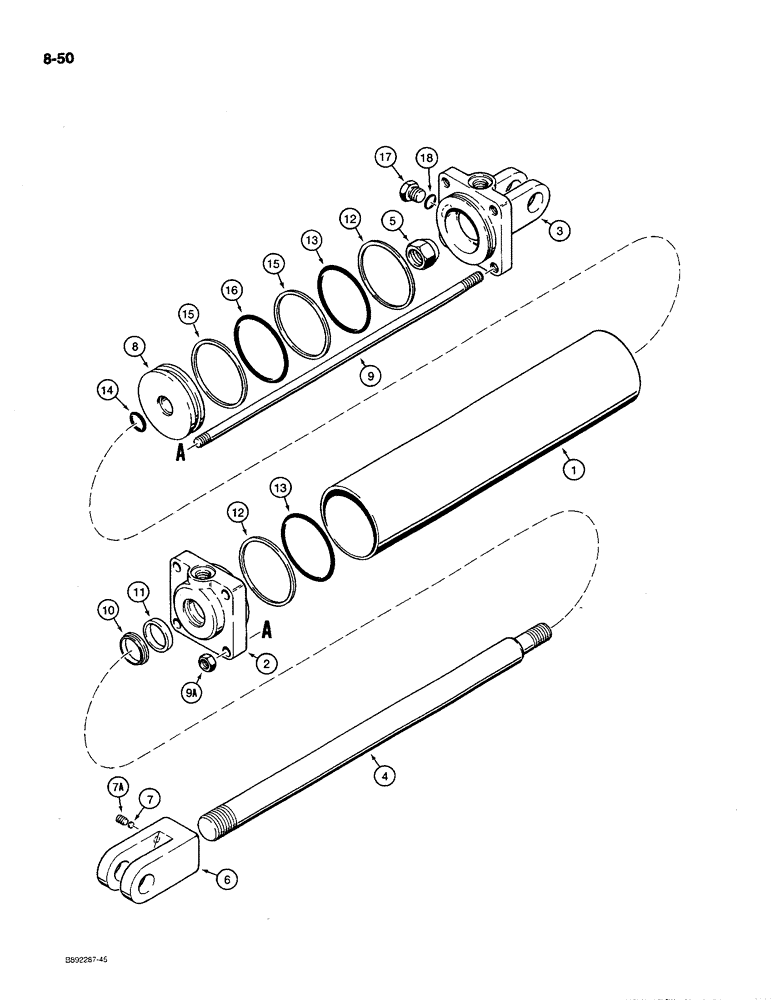

Запчасти Case IH 780 (8-50) - TRANSPORT LIFT CYLINDER, 84995C91, TIE-BOLT TYPE, 4 INCH ID (08) - HYDRAULICS

84995C91

CYLINDER

ASSEMBLY - 4 inch ID x 16 inch stroke, no longer available, for service order 1272150C91 cylinder

1шт.

assembly, parts list Figure 8-54

1шт.

1

NSS

NOT SOLD SEPARAT

TUBE - cylinder

1шт.

2

92479C1

END

GLAND - cylinder

1шт.

3

92480C1

END

CAP - end, cylinder

1шт.

4

79147C1

ROD

- piston

1шт.

5

25878R1

LOCK NUT,1"-14, GC

NUT - hex, self-locking, 1 inch NF

1шт.

76704C1

FORK

CLEVIS ASSEMBLY - rod end

1шт.

6

NSS

NOT SOLD SEPARAT

CLEVIS - rod end

1шт.

7

145453C1

PLUG,Lock, 7.938mm Dia x 3.175mm Thk, Nylon

PAD - insert

1шт.

7a

222518

SET SCREW,Hex Soc, 3/8"-24 x 3/8"

SCREW - set, hex socket, 3/8 NF x 3/8 inch

1шт.

8

79148C1

PISTON

- cylinder

1шт.

9

79150C1

STUD,5/8" - 18 x 21 3/8"

BOLT - tie, cylinder

4шт.

9a

129-127

NUT,5/8"-18, G5

4шт.

10

NSS

NOT SOLD SEPARAT

WIPER - piston rod

1шт.

NOTE: The cylinder assembly part number is stamped on the cylinder tube.

1шт.

Part of Cylinder Repair Kit P/N 92636C1

1шт.

11

NSS

NOT SOLD SEPARAT

SEAL - piston rod

1шт.

NOTE: The cylinder assembly part number is stamped on the cylinder tube.

1шт.

Part of Cylinder Repair Kit P/N 92636C1

1шт.

12

NSS

NOT SOLD SEPARAT

RING - backup

2шт.

NOTE: The cylinder assembly part number is stamped on the cylinder tube.

1шт.

Part of Cylinder Repair Kit P/N 92636C1

1шт.

13

NSS

NOT SOLD SEPARAT

O-RING - gland and end cap

2шт.

NOTE: The cylinder assembly part number is stamped on the cylinder tube.

1шт.

Part of Cylinder Repair Kit P/N 92636C1

1шт.

14

NSS

NOT SOLD SEPARAT

O-RING - piston to piston rod

1шт.

NOTE: The cylinder assembly part number is stamped on the cylinder tube.

1шт.

Part of Cylinder Repair Kit P/N 92636C1

1шт.

15

NSS

NOT SOLD SEPARAT

RING - backup, piston O-ring

2шт.

NOTE: The cylinder assembly part number is stamped on the cylinder tube.

1шт.

Part of Cylinder Repair Kit P/N 92636C1

1шт.

16

NSS

NOT SOLD SEPARAT

O-RING - piston

1шт.

NOTE: The cylinder assembly part number is stamped on the cylinder tube.

1шт.

Part of Cylinder Repair Kit P/N 92636C1

1шт.

17

9410359

PLUG

- hex, 3/4-16 inch O-ring boss

1шт.

18

NSS

NOT SOLD SEPARAT

O-RING - plug

1шт.

NOTE: The cylinder assembly part number is stamped on the cylinder tube.

1шт.

Part of Cylinder Repair Kit P/N 92636C1

1шт.

92636C1

SEAL KIT

KIT - cylinder repair, Includes: Ref. 10-16 and 18

1шт.

NOTE: The cylinder assembly part number is stamped on the cylinder tube.

1шт.
