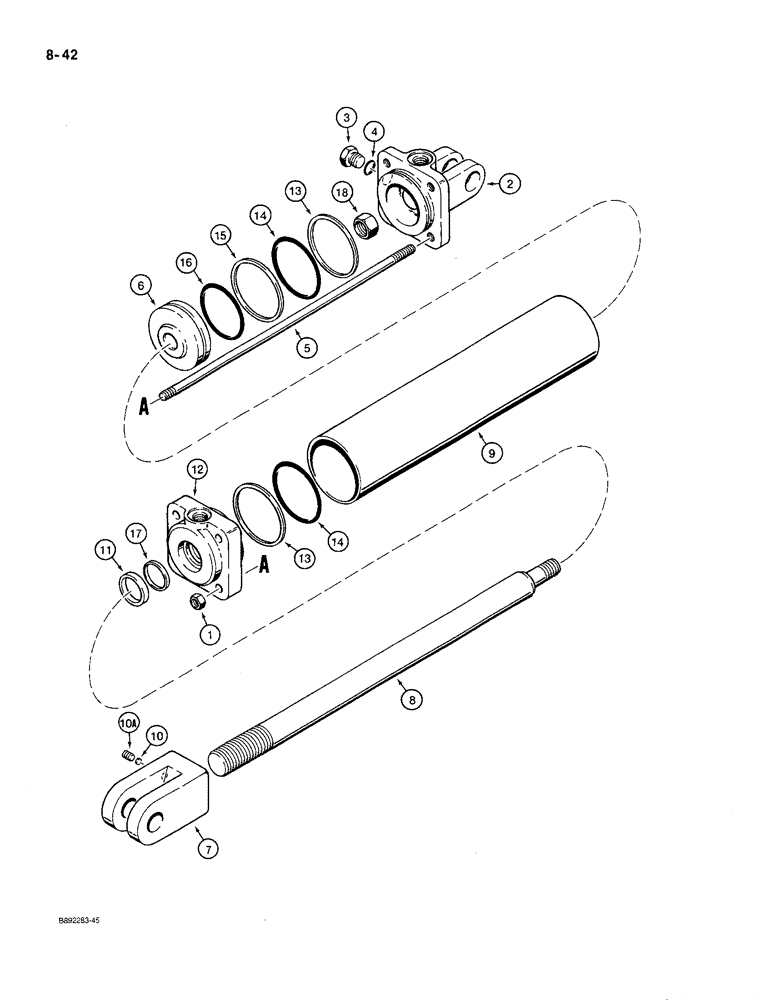

Запчасти Case IH 780 (8-42) - TRANSPORT LIFT CYLINDER, 1272149C91, TIE-BOLT TYPE, 3-1/2 INCH ID (08) - HYDRAULICS

1272149C91

CYLINDER

ASSEMBLY - 3-1/2 inch ID x 16 inch stroke, transport lift

2шт.

1272149C92R

REMAN-HYD CYLINDER

780 CASE IH DISK HARROW, ASSEMBLY, transport lift, Reman for New PN 1272149C91

2шт.

1272149C92C

CORE-HYD CYLINDER

Return Number

2шт.

1

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

4шт.

2

1282334C1

HEAD

CAP - end, cylinder

1шт.

3

9410359

PLUG

- hex, 3/4-16 inch O-ring boss

1шт.

4

NSS

NOT SOLD SEPARAT

O-RING - plug

1шт.

NOTE: The cylinder assembly part number is stamped on the cylinder tube.

1шт.

Part of Cylinder Repair Kit P/N 79978C2

1шт.

5

1282287C1

TIE-ROD,1/2" - 13 x 28.656"

BOLT - tie, cylinder

4шт.

6

145422C1

PISTON

- cylinder

1шт.

7

145240C1

CLEVIS,1 -1/2" - 12

- rod end

1шт.

8

1282397C1

PISTON ROD

ROD - piston

1шт.

9

NSS

NOT SOLD SEPARAT

TUBE - cylinder

1шт.

10

145453C1

PLUG,Lock, 7.938mm Dia x 3.175mm Thk, Nylon

PAD - insert

1шт.

10a

125843

SET SCREW,Hex Skt, 3/8"-16 x 3/8"

SCREW - set, hex socket, 3/8 NC x 3/8 inch

1шт.

11

NSS

NOT SOLD SEPARAT

WIPER - piston rod

1шт.

NOTE: The cylinder assembly part number is stamped on the cylinder tube.

1шт.

Part of Cylinder Repair Kit P/N 79978C2

1шт.

12

1282335C1

HEAD

GLAND - cylinder

1шт.

13

NSS

NOT SOLD SEPARAT

WASHER - backup, end cap and gland O-rings

2шт.

NOTE: The cylinder assembly part number is stamped on the cylinder tube.

1шт.

Part of Cylinder Repair Kit P/N 79978C2

1шт.

14

NSS

NOT SOLD SEPARAT

O-RING - end cap and gland

2шт.

NOTE: The cylinder assembly part number is stamped on the cylinder tube.

1шт.

Part of Cylinder Repair Kit P/N 79978C2

1шт.

15

NSS

NOT SOLD SEPARAT

RING - piston seal

1шт.

NOTE: The cylinder assembly part number is stamped on the cylinder tube.

1шт.

Part of Cylinder Repair Kit P/N 79978C2

1шт.

16

NSS

NOT SOLD SEPARAT

O-RING - piston

1шт.

NOTE: The cylinder assembly part number is stamped on the cylinder tube.

1шт.

Part of Cylinder Repair Kit P/N 79978C2

1шт.

17

NSS

NOT SOLD SEPARAT

SEAL - piston rod

1шт.

NOTE: The cylinder assembly part number is stamped on the cylinder tube.

1шт.

Part of Cylinder Repair Kit P/N 79978C2

1шт.

18

20268R1

LOCK NUT,7/8"-14, GC

NUT - hex, self-locking, 7/8 inch NF, grade 8

1шт.

79978C2

SEAL KIT

KIT - cylinder repair, Includes: Ref. 4, 11 and 13-17

1шт.

NOTE: The cylinder assembly part number is stamped on the cylinder tube.

1шт.
