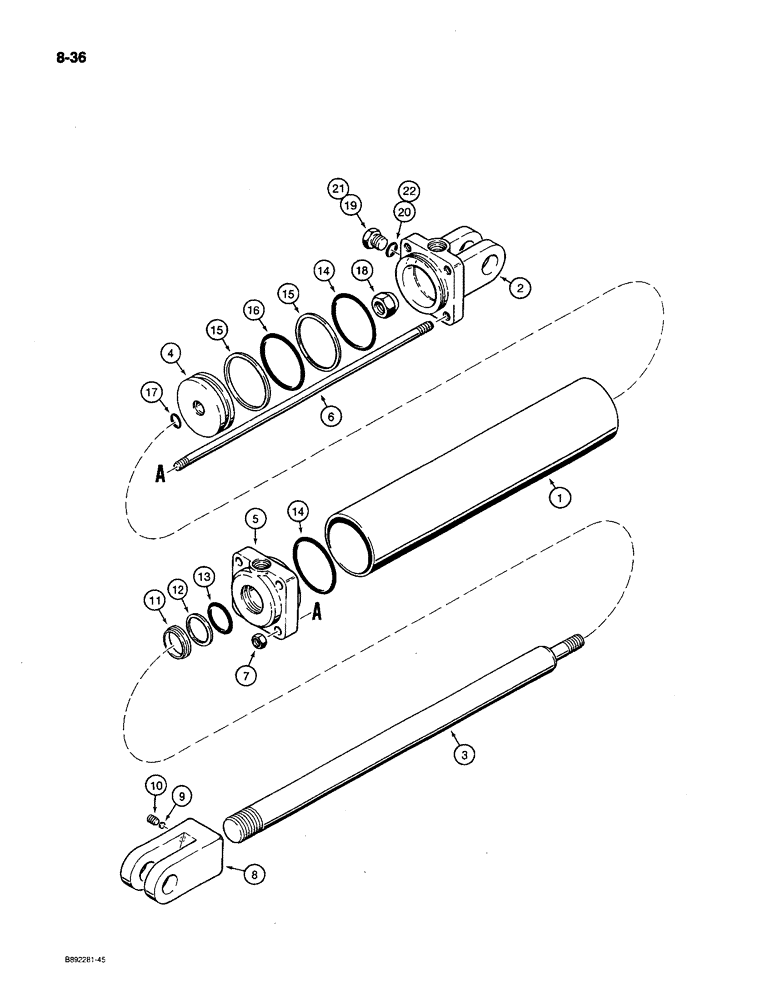

Запчасти Case IH 780 (8-36) - TRANSPORT LIFT CYLINDER, 145433C91, TIE-BOLT TYPE, 3-1/2 INCH ID (08) - HYDRAULICS

145433C91

CYLINDER

ASSEMBLY - 3-1/2 inch ID x 16 inch stroke, transport lift, no longer available, for service order 1272149C91 cylinder assembly, parts list Figure 8-42

2шт.

1272149C92R

REMAN-HYD CYLINDER

780 CASE IH DISK HARROW, ASSEMBLY, transport lift, Reman for New PN 145433C91

2шт.

1272149C92C

CORE-HYD CYLINDER

Return Number

2шт.

1

NSS

NOT SOLD SEPARAT

TUBE - cylinder

1шт.

2

79153C1

END

CAP - end, cylinder, 9/16-18 inch ports, no longer available, for service order (1) 92533C1 end cap, (1) 1252130C1 adapter and (1) 237-6008 O-ring

1шт.

2

92533C1

END

CAP - end, cylinder, 3/4-16 inch ports

1шт.

3

77750C1

ROD

- piston

1шт.

4

79154C1

PISTON

- cylinder

1шт.

5

77751C1

END

GLAND - cylinder, 9/16-18 inch port, no longer available, for service order (1) 92475C1 gland, (1) 1252130C1 adapter and (1) 237-6008 O-ring

1шт.

5

92475C1

END

GLAND - cylinder, 3/4-16 inch port

1шт.

6

77752C1

ROD,1/2" - 13 x 20.125"

BOLT - tie, cylinder

4шт.

7

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

4шт.

76704C1

FORK

CLEVIS ASSEMBLY - rod end

1шт.

8

NSS

NOT SOLD SEPARAT

CLEVIS - rod end

1шт.

9

145453C1

PLUG,Lock, 7.938mm Dia x 3.175mm Thk, Nylon

PAD - insert

1шт.

10

222518

SET SCREW,Hex Soc, 3/8"-24 x 3/8"

SCREW - set, hex socket, 3/8 NF x 3/8 inch

1шт.

11

NSS

NOT SOLD SEPARAT

WIPER - piston rod

1шт.

NOTE: The cylinder assembly part number is stamped on the cylinder tube.

1шт.

Part of Cylinder Repair Kit P/N 79155C1

1шт.

12

NSS

NOT SOLD SEPARAT

WASHER - backup, rod O-ring

1шт.

NOTE: The cylinder assembly part number is stamped on the cylinder tube.

1шт.

Part of Cylinder Repair Kit P/N 79155C1

1шт.

13

NSS

NOT SOLD SEPARAT

O-RING - rod

1шт.

NOTE: The cylinder assembly part number is stamped on the cylinder tube.

1шт.

Part of Cylinder Repair Kit P/N 79155C1

1шт.

14

NSS

NOT SOLD SEPARAT

O-RING - end cap and gland

2шт.

NOTE: The cylinder assembly part number is stamped on the cylinder tube.

1шт.

Part of Cylinder Repair Kit P/N 79155C1

1шт.

15

NSS

NOT SOLD SEPARAT

WASHER - backup, piston O-ring

2шт.

NOTE: The cylinder assembly part number is stamped on the cylinder tube.

1шт.

Part of Cylinder Repair Kit P/N 79155C1

1шт.

16

NSS

NOT SOLD SEPARAT

O-RING - piston

1шт.

NOTE: The cylinder assembly part number is stamped on the cylinder tube.

1шт.

Part of Cylinder Repair Kit P/N 79155C1

1шт.

17

NSS

NOT SOLD SEPARAT

O-RING - piston, Serial Range: rod-piston

1шт.

NOTE: The cylinder assembly part number is stamped on the cylinder tube.

1шт.

Part of Cylinder Repair Kit P/N 79155C1

1шт.

18

131-1251

LOCK NUT,3/4"-16, GC

NUT, LOCK, 3/4"-16, GC

1шт.

19

76349

PLUG,9/16" - 18 ORB

Use with 79153C1 head Hex Hd, 9/16"-18 ORB

1шт.

21

9410359

PLUG

- hex, 3/4-16 inch O-ring boss, used with 92533C1 head

1шт.

22

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, Used with 92533C1 head

1шт.

79155C1

SEAL KIT

- cylinder repair, Includes: Ref. 11-17

1шт.

NOTE: The cylinder assembly part number is stamped on the cylinder tube.

1шт.

20

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.
