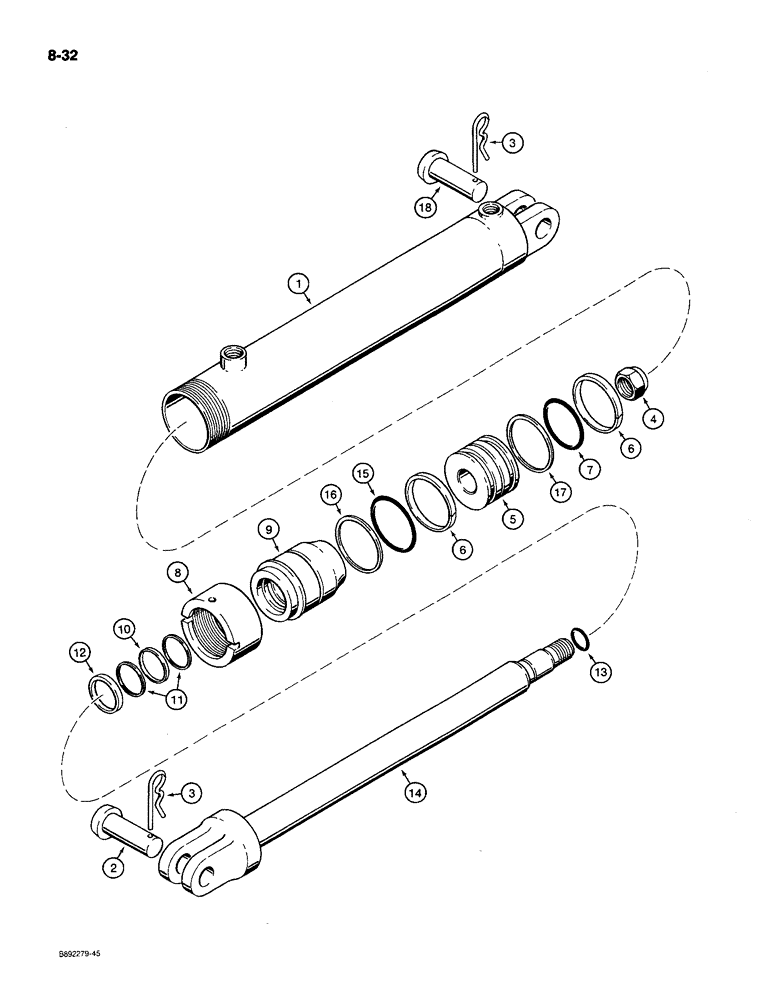

Запчасти Case IH 780 (8-32) - TRANSPORT LIFT CYLINDER, 71958C91, WELDED TYPE, 3-1/2 INCH ID (08) - HYDRAULICS

71958C91

CYLINDER

ASSEMBLY - 3-1/2 inch ID X 16 inch stroke, no longer

1шт.

*

available, for service order 1272149C91 cylinder assembly, parts list Figure 8-42, (1) 28537R1 clevis pin, (1) 132-313 cotter pin, (2) 1252129C1 adapters and (2) 237-6008 O-rings

2шт.

1

387359R12

TUBE

- cylinder

1шт.

2

127892C1

PIN

- cylinder pivot, rod end

1шт.

3

520175R1

CLIP

PIN - hair, cylinder pin retaining

2шт.

4

25126R1

LOCK NUT,1 1/8"-12, GC

NUT - hex, self-locking, 1-1/8 inch NF

1шт.

5

387354R1

PISTON

- cylinder

1шт.

6

383005R1

RING

- piston bearing

2шт.

NOTE: The cylinder assembly part number is stamped on the cylinder tube.

1шт.

Part of Cylinder Repair Kit P/N 387881R92

1шт.

7

380910R1

O-RING,0.103" Thk x 2.987" ID, -151, Cl 5, 75 Duro

- 3 x 3-3/16 x 3/32 inch, piston seal

1шт.

NOTE: The cylinder assembly part number is stamped on the cylinder tube.

1шт.

Part of Cylinder Repair Kit P/N 387881R92

1шт.

8

381089R1

RING

- retaining, gland

1шт.

9

387353R1

END

GLAND - cylinder

1шт.

9

1272149C92R

REMAN-HYD CYLINDER

780 CASE IH DISK HARROW, GLAND, cylinder, Reman for New PN 387353R1

1шт.

9

1272149C92C

CORE-HYD CYLINDER

Return Number

1шт.

10

403995R1

RING

- quad, piston rod

1шт.

NOTE: The cylinder assembly part number is stamped on the cylinder tube.

1шт.

Part of Cylinder Repair Kit P/N 387881R92

1шт.

11

387362R2

BACK-UP RING

- backup, piston rod quad ring

2шт.

NOTE: The cylinder assembly part number is stamped on the cylinder tube.

1шт.

Part of Cylinder Repair Kit P/N 387881R92

1шт.

12

403845R1

WIPER SEAL

WIPER - piston rod

1шт.

NOTE: The cylinder assembly part number is stamped on the cylinder tube.

1шт.

Part of Cylinder Repair Kit P/N 387881R92

1шт.

13

A7623

O-RING,0.139" Thk x 0.984" ID, -214, Cl 5, 75 Duro

- 1 x 1-1/4 x 1/8 inch, piston rod

1шт.

NOTE: The cylinder assembly part number is stamped on the cylinder tube.

1шт.

Part of Cylinder Repair Kit P/N 387881R92

1шт.

14

128016C1

ROD ASSY.

ROD - piston

1шт.

15

378827R1

O-RING,0.21" Thk x 3.1" ID, -338, Cl 6, 90 Duro

- 3-1/8 x 3-1/2 x 3/16 inch, gland

1шт.

NOTE: The cylinder assembly part number is stamped on the cylinder tube.

1шт.

Part of Cylinder Repair Kit P/N 387881R92

1шт.

16

381088R1

BACK-UP RING

RING - backup, gland O-ring

1шт.

NOTE: The cylinder assembly part number is stamped on the cylinder tube.

1шт.

Part of Cylinder Repair Kit P/N 387881R92

1шт.

17

381086R1

RING

SEAL - piston

1шт.

NOTE: The cylinder assembly part number is stamped on the cylinder tube.

1шт.

Part of Cylinder Repair Kit P/N 387881R92

1шт.

18

60909C1

PIN

- cylinder pivot, closed end

1шт.

387881R92

SEAL KIT

KIT - cylinder repair, Includes: Ref. 6, 7, 10-13 and 15-17

1шт.

NOTE: The cylinder assembly part number is stamped on the cylinder tube.

1шт.
