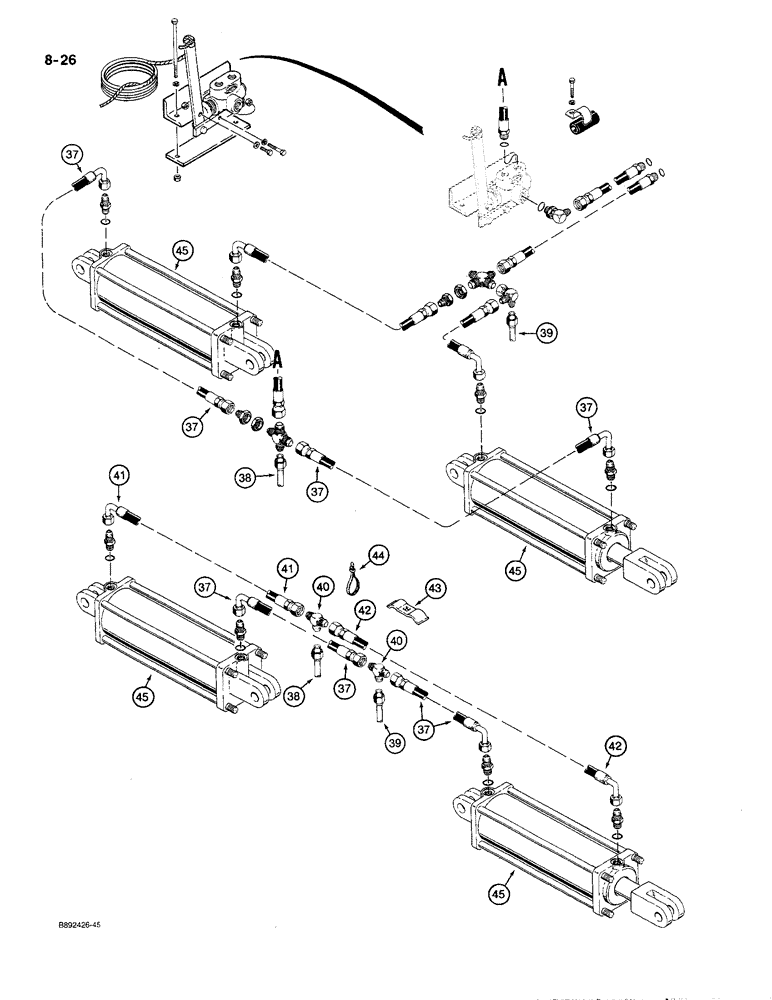

Запчасти Case IH 780 (8-26) - WING LIFT HYDRAULIC CIRCUIT, WITH DIVERTER VALVE (08) - HYDRAULICS

37

60232C1

HOSE

- 34 inch long, cross to front wing lift cylinders, rod end, tee to rear wing lift cylinders, closed end

4шт.

38

139494C1

HYD TUBE

TUBE - cross to tee at rear wing lift cylinder hoses, rod end

1шт.

39

139495C1

HYD TUBE

TUBE - tee to tee at rear wing lift cylinder hoses, closed end

1шт.

40

76355

TEE,9/16" - 18 JIC x 9/16" - 18 JIC x 9/16" - 18 JIC

- 9/16-18 inch flare

2шт.

41

60231C1

HOSE

- 24 inch long, tee to left-hand rear wing lift cylinder, rod end

1шт.

42

60233C1

HOSE

- 54 inch long, tee to right-hand rear wing lift cylinder, rod end

1шт.

43

515030R1

CLAMP

- hose

1шт.

44

22-824

CABLE TIE,3/16" x 7 1/4"

STRAP - tie, 7 inch long

1шт.

45

64901C91

CYLINDER

ASSEMBLY- 4 inch ID x 16 inch stroke, wing lift, parts list Figure 8-66, no longer available, for service order 1272486C91 cylinder assembly, parts list Figure 8-70, also order (1) 1252130C1 adapter, (1) 570828R1 O-ring and (2) 237-6008 O-rings

4шт.

45

1272486C91

CYLINDER ASSY.

CYLINDER ASSEMBLY - 4 inch ID x 16 inch stroke

1шт.

wing lift, parts list Figure 8-70

4шт.
