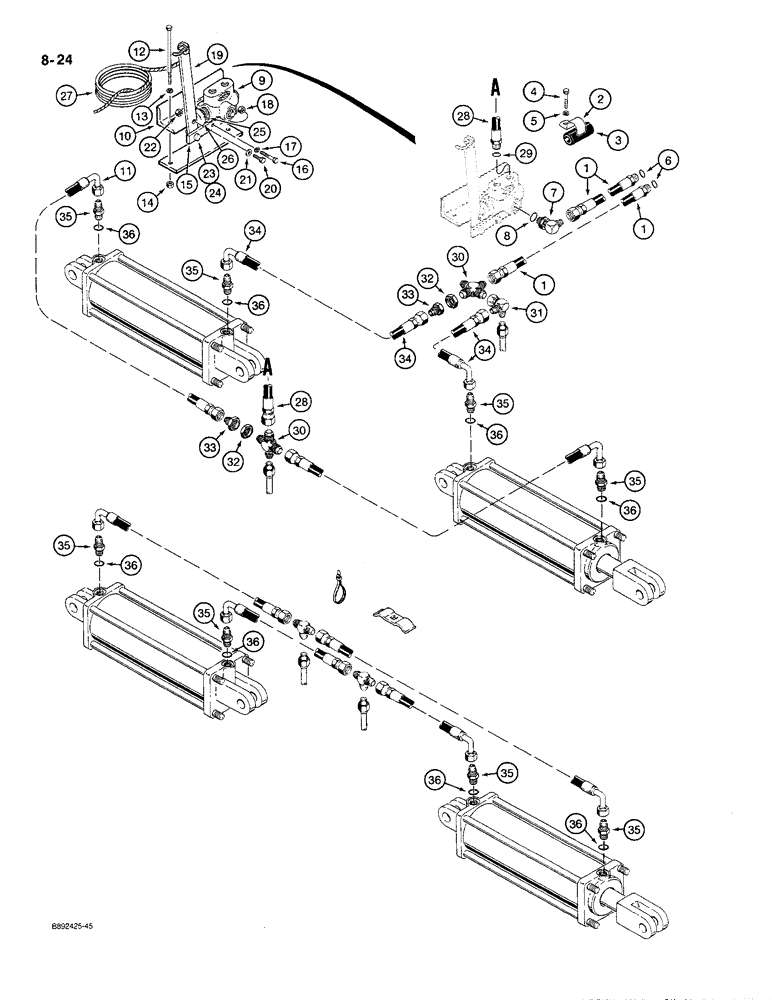

Запчасти Case IH 780 (8-24) - WING LIFT HYDRAULIC CIRCUIT, WITH DIVERTER VALVE (08) - HYDRAULICS

1

100970C1

HYDRAULIC HOSE,0.50" ID x 200.00", SAE 100R1

- 220 inch long, Supply and return

2шт.

2

470976R1

CHANNEL

CLAMP - hose

4шт.

3

393068R1

HOSE

SHIELD - hose, 1-1/2 inch long

8шт.

4

18476R1

BOLT,Hex, 1/2"-13 x 2 1/2", G2

- hex, 1/2 NC x 2-1/2 inch

4шт.

5

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

4шт.

6

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

2шт.

7

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- 90 deg adj, 7/8-14 inch flare x O-ring boss

1шт.

8

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

9

478887R91

VALVE

ASSEMBLY - diverter, parts list Figure 8-28

1шт.

10

60267C1

ANGLE

BRACKET - mounting, diverter valve

1шт.

11

60268C1

BAR

- mounting, diverter valve

1шт.

12

18792R1

BOLT

- hex, 3/8 NC x 7 inch

2шт.

13

492-11038

LOCK WASHER,3/8"

2шт.

14

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

15

57068C1

BAR

- pivot, valve lever

1шт.

16

113-110

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

Hex, 5/16"-18 x 2 1/4", G5

2шт.

17

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

18

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

2шт.

19

57069C1

BAR

LEVER - control, diverter valve

1шт.

20

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

1шт.

21

446363

WASHER,5/16"

- flat, 3/8 x 7/8 x 1/16 inch

1шт.

22

1306680C1

FLANGE NUT

NUT - hex, self-locking, 3/8 inch NC

1шт.

23

21886R1

HEADED PIN,1/4" x 1"

PIN - clevis, 1/4 x 1 inch

1шт.

24

132-310

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), , Not shown 1/8" x 1"

1шт.

25

369462R1

SPRING

- lever

1шт.

26

477589R1

WASHER

- flat, 13/32 x 1-1/2 x 7/64 inch

1шт.

27

REF

INSTRUCTION

ROPE - 1/4 x 300 inch, valve control lever, purchase locally

1шт.

28

653317R91

HOSE ASSY.

HOSE - 26 inch long, diverter, Serial Range: valve-cross

1шт.

29

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

30

532321R1

CROSS

- special, to front wing lift cylinders

2шт.

31

218-5222

TEE,37 Degree, 9/16"-18, x 9/16"-18, Fem Sw Run

- swivel, 9/16-18 inch flare

1шт.

32

9403529

TUBE NUT,37 Degree, 7/8"-14, Type B

NUT - hex, bulkhead, 7/8 inch NF

2шт.

33

9403402

REDUCER,37 Degree, 5/8" x 1/4" Tube

ADAPTER - straight, 5/8-18 inch fem x 3/8-24 inch flare

2шт.

34

60231C1

HOSE

- 24 inch long, tee to front wing lift cylinders, closed end

2шт.

35

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

ADAPTER - straight, 9/16-18 inch flare x O-ring boss

8шт.

36

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.
