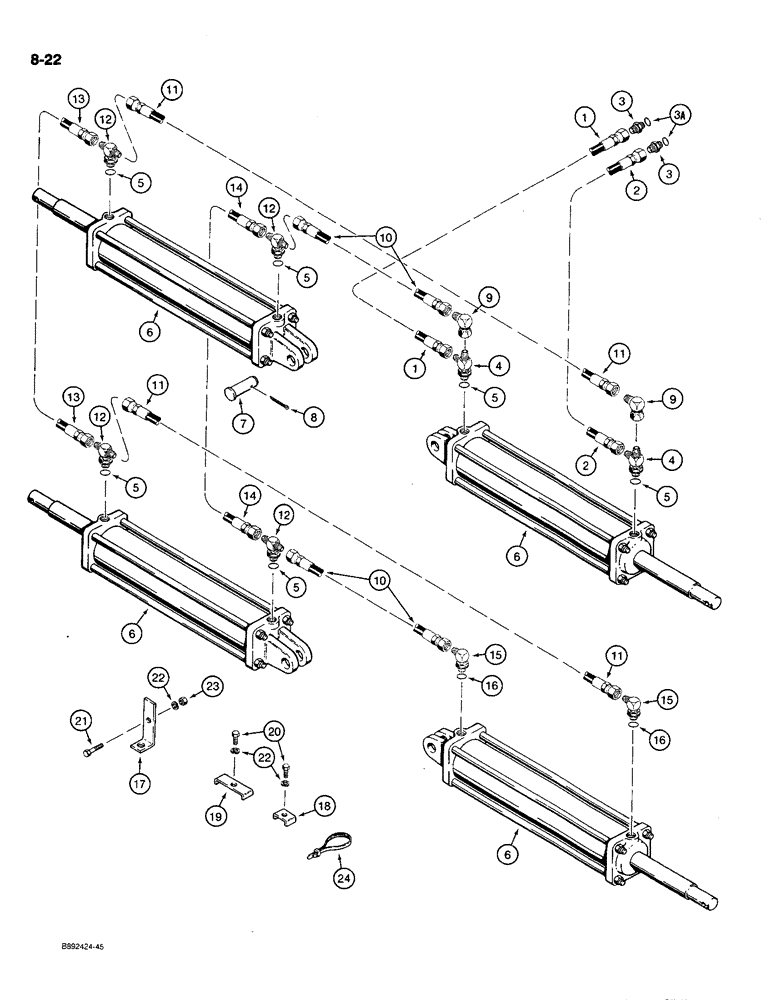

Запчасти Case IH 780 (8-22) - WING LIFT HYDRAULIC CIRCUIT, 3/8" ID SUPPLY & RETURN HOSES W/ADAPTERS AT CYLINDER W/O DIVERTER VALVE (08) - HYDRAULICS

1

129765C2

HYDRAULIC HOSE

HOSE - 3/8 inch ID x 200 inch long, tractor to tee at cylinder closed end

1шт.

2

129764C2

HYDRAULIC HOSE

HOSE - 3/8 inch ID x 215 inch long, tractor to tee at cylinder rod end

1шт.

3

218-5058

HYD CONNECTOR,9/16" - 18 Male JIC x 3/4" - 18 Male ORB

ADAPTER - straight, 9/16-18 flare x 3/4-16 O-ring boss

2шт.

3a

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

4

1284156C1

TEE

- 9/16-18 inch flare base x flare x adj O-ring boss

2шт.

5

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

6шт.

6

1255247C92

CYLINDER

ASSEMBLY - 4 inch ID x 16 inch stroke, wing lift, parts list Figure 8-68, no longer available, for service order 1272486C91 cylinder assembly, parts list Figure 8-70

4шт.

The cylinder assembly part number is stamped on the cylinder tube.

1шт.

6

1272486C91

CYLINDER ASSY.

CYLINDER ASSEMBLY - 4 inch ID x 16 inch stroke, wing lift, parts list Figure 8-70

4шт.

The cylinder assembly part number is stamped on the cylinder tube.

1шт.

7

28535R1

CLEVIS PIN

PIN - clevis, 1-1/4 x 3-1/4 inch

4шт.

8

132-313

COTTER PIN,1/4" x 2"

PIN, Split (Cotter), 1/4" x 2"

4шт.

9

218-980

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw

- 90 degree swivel, 9/16-18 inch flare

2шт.

10

147777C2

HYDRAULIC HOSE,6.40 mm ID x 280.00 mm

Cylinder to Cylinder, Closed End 6.40 mm ID x 280.00 mm

2шт.

11

129908C1

HYDRAULIC HOSE

HOSE - 1/4 inch ID x 54 inch long, cylinder to cylinder, rod end

2шт.

12

1284157C1

TEE,9/16"-18, 37 Degree x 3/4"-16, O-Ring Br

- special

4шт.

13

147779C1

HYDRAULIC HOSE

HOSE - 1/4 inch ID x 144 inch long, tee to tee at left-hand cylinders, rod end

1шт.

14

1261399C1

HYDRAULIC HOSE,6.35mm ID x 4570mm L

HOSE - 1/4 inch ID x 180 inch long, tee to tee at left-hand cylinders, rod end

1шт.

15

218-5128

ELBOW,90° Elbow, 9/16" - 18 Male JIC x 3/4" - 16 Male ORB

- 90 deg adj, 9/16-18 flared x 3/4-16 inch O-ring

2шт.

16

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

17

147770C1

SUPPORT

- hose

1шт.

18

129886C2

CLAMP

- hose, small

6шт.

19

129888C2

CLAMP

- hose, large

3шт.

20

113-433

BOLT,Hex, 1/2" - 13 x 3/4", Gr 5, Full Thd

8шт.

21

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

1шт.

22

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

9шт.

23

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

1шт.

24

22-824

CABLE TIE,3/16" x 7 1/4"

STRAP - tie, 7 inch long

4шт.
