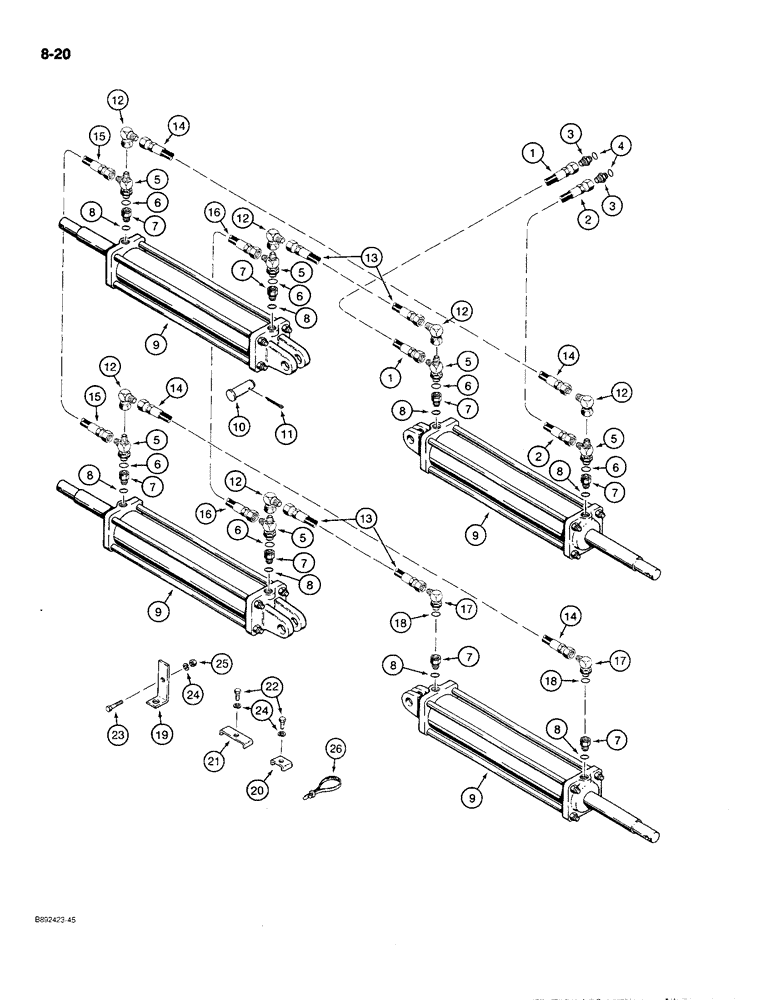

Запчасти Case IH 780 (8-20) - WING LIFT HYDRAULIC CIRCUIT, 3/8" ID SUPPLY & RETURN HOSES W/ADAPTERS AT CYLINDER W/O DIVERTER HOSES (08) - HYDRAULICS

1

129765C2

HYDRAULIC HOSE

HOSE - 3/8 inch ID x 200 inch long, tractor to tee at cylinder, closed end

1шт.

2

129764C2

HYDRAULIC HOSE

HOSE - 3/8 inch ID x 215 inch long, tractor to tee at cylinder, rod end

1шт.

3

935433R1

HYD CONNECTOR,9/16"-18, 37 Degree x 7/8"-14, O-Ring

ADAPTER - straight, 9/16-18 flare x 7/8-14 inch O-ring

2шт.

4

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

2шт.

5

9411130

TEE,9/16"-18, 37 Degree x 9/16"-18, O-Ring Run

- 9/16-18 inch flare base x flare x adj O-ring boss

6шт.

7

1252130C1

ADAPTER

- straight, 3/4-16 female x 9/16-18 inch male O-ring

8шт.

8

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

8шт.

9

1255247C92

CYLINDER

ASSEMBLY - 4 inch ID x 16 inch stroke, wing lift, parts list Figure 8-68, no longer available, for service order 1272486C91 cylinder assembly, parts list Figure 8-70

4шт.

The cylinder assembly part number is stamped on the cylinder tube.

1шт.

9

1272486C91

CYLINDER ASSY.

CYLINDER ASSEMBLY - 4 inch ID x 16 inch stroke, wing lift, parts list Figure 8-70

4шт.

The cylinder assembly part number is stamped on the cylinder tube.

1шт.

10

28535R1

CLEVIS PIN

PIN - clevis, 1-1/4 x 3-1/4 inch

4шт.

11

132-313

COTTER PIN,1/4" x 2"

PIN, Split (Cotter), 1/4" x 2"

4шт.

12

218-980

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw

- 90 degree swivel, 9/16-18 inch flare

6шт.

13

147777C2

HYDRAULIC HOSE,6.40 mm ID x 280.00 mm

Cylinder to Cylinder, Closed End 6.40 mm ID x 280.00 mm

2шт.

14

129908C1

HYDRAULIC HOSE

HOSE - 1/4 inch ID x 54 inch long, cylinder to cylinder, rod end

2шт.

15

147779C1

HYDRAULIC HOSE

HOSE - 1/4 inch ID x 144 inch long, tee to tee at left-hand cylinders, rod end

1шт.

16

147780C1

HOSE

- 1/4 inch ID x 180 inch long, tee to tee at left-hand cylinders, closed end

1шт.

17

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 90 degree, adj, 9/16-18 inch flare x O-ring boss

2шт.

19

147770C1

SUPPORT

- hose

1шт.

20

129886C2

CLAMP

- hose, small

6шт.

21

129888C2

CLAMP

- hose, large

3шт.

22

113-433

BOLT,Hex, 1/2" - 13 x 3/4", Gr 5, Full Thd

8шт.

23

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

1шт.

24

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

9шт.

25

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

1шт.

26

22-824

CABLE TIE,3/16" x 7 1/4"

STRAP - tie, 7 inch long

4шт.

6

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

6шт.

18

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.
