(8-18) - WING LIFT HYDRAULIC CIRCUIT, 1/2 INCH ID SUPPLY & RETURN HOSES W/O DIVERTER VALVE

Запчасти Case IH 780 (8-18) - WING LIFT HYDRAULIC CIRCUIT, 1/2 INCH ID SUPPLY & RETURN HOSES W/O DIVERTER VALVE (08) - HYDRAULICS

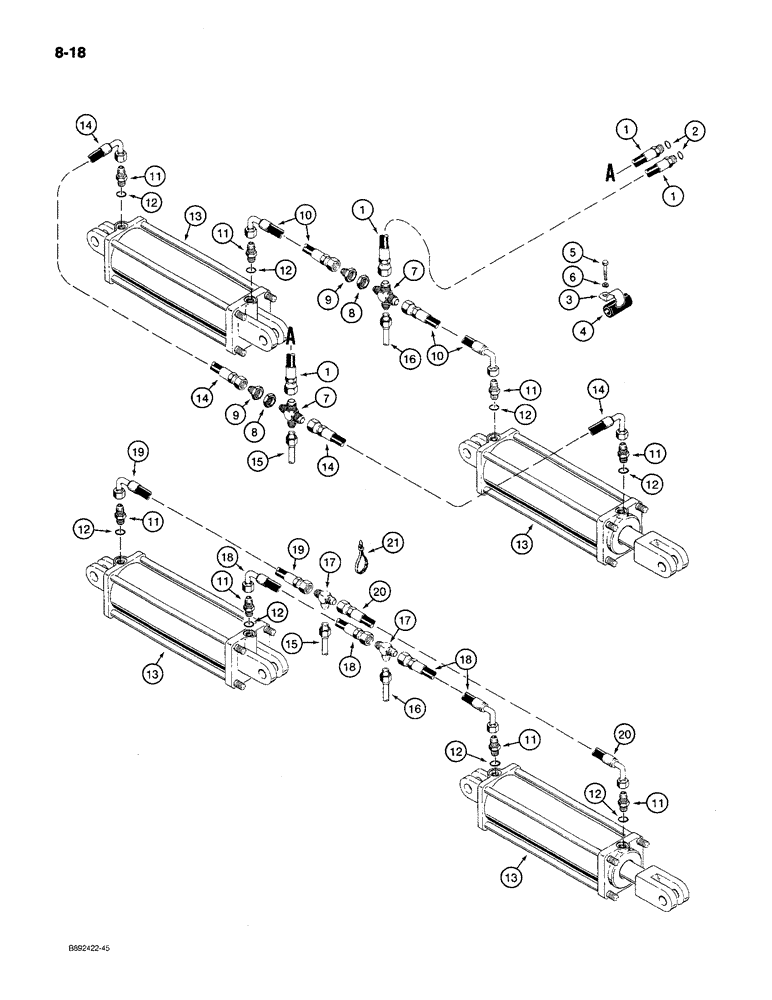

Схема запчастей Case IH 780 - (8-18) - WING LIFT HYDRAULIC CIRCUIT, 1/2 INCH ID SUPPLY & RETURN HOSES W/O DIVERTER VALVE (08) - HYDRAULICS
5
19
11
10
12
14
20
12
12
13
8
12
17
3
14
18
16
12
14
20
11
9
11
12
11
7
11
13
4
11
11
9
8
15
17
1
11
6
1
16
7
14
18
19
12
18
15
1
12
1
21
13
13
10
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

100970C1

HYDRAULIC HOSE,0.50" ID x 200.00", SAE 100R1

- Supply and return 0.50" ID x 200.00", SAE 100R1

2шт.

2

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

2шт.

3

470976R1

CHANNEL

CLAMP - hose

1шт.

4

REF

INSTRUCTION

SHIELD - hose, 1-1/2 inch long, cut from 7/16 inch ID heater hose

1шт.

5

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

1шт.

6

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

1шт.

7

532321R1

CROSS

- special, to front wing lift cylinders

2шт.

8

9403529

TUBE NUT,37 Degree, 7/8"-14, Type B

NUT - hex, bulkhead, 7/8 inch NF

2шт.

9

9403402

REDUCER,37 Degree, 5/8" x 1/4" Tube

ADAPTER - straight, 5/8-18 inch fem x 3/8-24 inch flare

2шт.

10

60231C1

HOSE

- 24 inch long, tee to front wing lift cylinders, closed end

2шт.

11

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

ADAPTER - straight, 9/16-18 inch flare x O-ring boss

8шт.

13

64901C91

CYLINDER

ASSEMBLY- 4 inch ID x 16 inch stroke, wing lift, parts list Figure 8-66, no longer available, for service order 1272486C91 cylinder assembly, parts list Figure 8-70, also order (1) 1252130C1 adapter, (1) 570828R1 O-ring and (2) 237-6008 O-rings

4шт.

The cylinder assembly part number is stamped on the cylinder tube.

1шт.

13

1272486C91

CYLINDER ASSY.

CYLINDER ASSEMBLY - 4 inch ID x 16 inch stroke, wing lift, parts list Figure 8-70

4шт.

The cylinder assembly part number is stamped on the cylinder tube.

1шт.

14

60232C1

HOSE

- 34 inch long, cross to front wing lift cylinders, rod end

2шт.

15

139494C1

HYD TUBE

TUBE - cross to tee at cylinder rod end hoses

1шт.

16

139495C1

HYD TUBE

TUBE - cross to tee at cylinder closed end hoses

1шт.

17

9402981

SHAFT

- 9/16-18 inch flare

2шт.

18

60232C1

HOSE

- 34 inch long, tee to rear wing lift cylinders, closed end

2шт.

19

60231C1

HOSE

- 24 inch long, tee to left-hand rear wing lift cylinder, rod end

1шт.

20

60233C1

HOSE

- 54 inch long, tee to right-hand rear wing lift cylinder, rod end

1шт.

21

22-824

CABLE TIE,3/16" x 7 1/4"

STRAP - tie, 7 inch long

1шт.

12

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.
