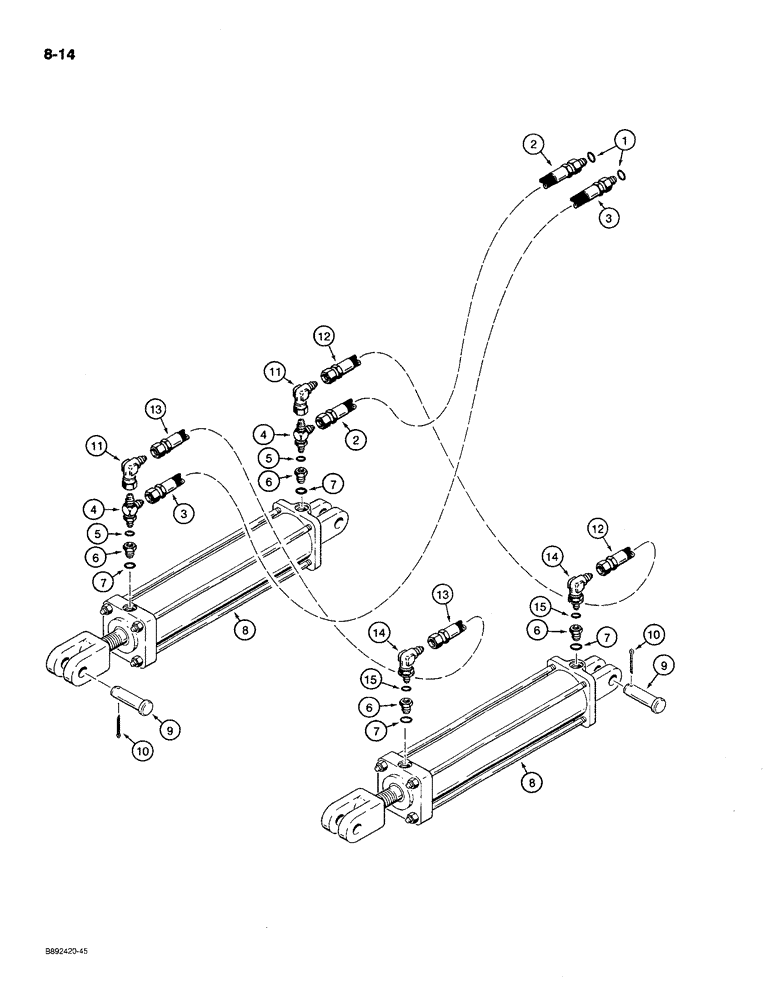

Запчасти Case IH 780 (8-14) - TRANSPORT LIFT HYDRAULIC CIRCUIT, DUAL TIE-BOLT TYPE CYLINDER (08) - HYDRAULICS

*

1/2" ID Supply & Return Hoses, Without Diverter Valve

1шт.

1

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

2шт.

2

147773C1

FLEXIBLE HOSE

HOSE - 1/2 inch ID x 224 inch long, tractor to tee at closed end of left-hand cylinder

1шт.

3

147774C1

FLEXIBLE HOSE

HOSE - 1/2 inch ID x 245 inch long, tractor to tee at rod end of left-hand cylinder

1шт.

4

673526R1

TEE

- special

2шт.

6

1252130C1

ADAPTER

- straight, 3/4-16 female x 9/16-18 inch male O-ring, used with 145212C92 cylinder

4шт.

7

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, Used with 145212C92 cylinder

4шт.

8

145212C92

CYLINDER

ASSEMBLY - 3-1/2 inch ID x 16 inch stroke, transport lift, parts list Figure 8-40, no longer available, for service order 1272149C91 cylinder assembly, parts list Figure 8-42

2шт.

The cylinder assembly part number is stamped on the cylinder tube.

1шт.

8

1272149C92R

REMAN-HYD CYLINDER

780 CASE IH DISK HARROW, ASSEMBLY, transport lift, Reman for New PN 145212C92

2шт.

8

1272149C92C

CORE-HYD CYLINDER

Return Number

2шт.

8

84994C91

CYLINDER

ASSEMBLY - 3-1/2 inch ID x 16 inch stroke, transport lift, parts list Figure 8-34, no longer available, for service order 1272149C91 cylinder assembly, parts list Figure 8-42

2шт.

The cylinder assembly part number is stamped on the cylinder tube.

1шт.

8

1272149C92R

REMAN-HYD CYLINDER

780 CASE IH DISK HARROW, ASSEMBLY, transport lift, Reman for New PN 84994C91

2шт.

8

1272149C92C

CORE-HYD CYLINDER

Return Number

2шт.

8

145433C91

CYLINDER

ASSEMBLY - 3-1/2 inch ID x 16 inch stroke, transport lift, parts list Figure 8-36, no longer available, for service order 1272149C91 cylinder assembly, parts list Figure 8-42

2шт.

The cylinder assembly part number is stamped on the cylinder tube.

1шт.

8

1272149C92R

REMAN-HYD CYLINDER

780 CASE IH DISK HARROW, ASSEMBLY, transport lift, Reman for New PN 145433C91

2шт.

8

1272149C92C

CORE-HYD CYLINDER

Return Number

2шт.

8

1272149C91

CYLINDER

ASSEMBLY - 3-1/2 inch ID x 16 inch stroke, transport lift, parts list Figure 8-42

2шт.

The cylinder assembly part number is stamped on the cylinder tube.

1шт.

8

1272149C92R

REMAN-HYD CYLINDER

780 CASE IH DISK HARROW, ASSEMBLY, transport lift, Reman for New PN 1272149C91

2шт.

8

1272149C92C

CORE-HYD CYLINDER

Return Number

2шт.

9

28537R1

CLEVIS PIN,1 1/4" x 3 3/4"

PIN - clevis, 1-1/4 x 3-3/4 inch

4шт.

10

32-2028

COTTER PIN,5/16" x 1 3/4"

PIN, SPLIT (COTTER), 5/16" x 1 3/4"

4шт.

11

218-5230

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw

- 90 degree swivel, 3/4-16 inch flared

2шт.

12

147842C1

HOSE

- 1/2 inch ID x 72 inch long, cylinder to cylinder, closed end

1шт.

13

147843C2

HYDRAULIC HOSE,12.70 mm ID x 2795.00 mm, SAE 100R17

Cylinder to Cylinder, Rod End 12.70 mm ID x 2795.00 mm, SAE 100R17

1шт.

14

218-5280

ELBOW,90 Degree, 3/4"-16, 37 Degree x 9/16"-18, O-Ring

- 90 degree, adj, 3/4-16 flare x 9/16-18 inch O-ring

2шт.

5

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

2шт.

15

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.
